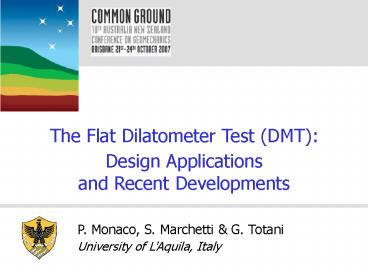

The Flat Dilatometer Test (DMT) Design
Applications and Recent Developments
P. Monaco, S. Marchetti G. Totani University of
L'Aquila, Italy
2
KEY DMT REFERENCES
ORIGINAL PAPER MARCHETTI S. (1980). In Situ Tests
by Flat Dilatometer. J. Geotech. Engrg. Div.
ASCE, 106(GT3), 299-321 STANDARDS ASTM D6635-01
(2001). Standard Test Method for Performing the
Flat Plate Dilatometer. EUROCODE 7 Geotechnical
Design Part 2 Ground Investigation and
Testing. EN 1997-22007 SOA REPORT TC16 (2001).
The Flat Dilatometer Test (DMT) in Soil
Investigations. May 2001, 41 pp. Reprint in Proc.
2nd Int. Conf. on Flat Dilatometer, Washington
D.C., 7-48 INTERNET www.marchetti-dmt.it biblio
site (download papers)
3
FLAT DILATOMETER (DMT)
BLADE
FLEXIBLE MEMBRANE
4
GENERAL LAYOUT of DMT
Push force provided by penetrometer or drill rig
? DMT blade ? Push rods (e.g. CPT) ?
Pneumatic-electrical cable ? Control unit ?
Pneumatic cable ? Gas tank ? MEMBRANE EXPANSION
p0 p1 readings at 20 cm depth intervals
5
SOILS that can be TESTED by DMT

• CLAY, SILT, SAND But can cross through GRAVEL
  layers ? 0.5 m
• Soils from VERY SOFT to VERY STIFF (upper limit
  is push capacity of rig)
• Clays Cu 2-4 to 1000 kPa (marls)
• Moduli up to 400 MPa

6
Basic DMT reduction formulae (TC16 2001)
7
DMT results
KD 2 ? NC clay
ID ?
M Cu ? ?
KD ?
soil type (clay, silt, sand)
common use
shape similar to OCR helps understand history of
deposit
8
Design using soil parameters

• In most cases DMT used to determine common
  geotechnical design parameters
• Experience has shown undrained shear strength Cu
  and constrained modulus M by DMT generally
  accurate and dependable for design
• Comparisons at several research sites indicate
  quite good agreement between profiles of Cu and M
  by DMT and reference values by other tests ( see
  TC16 2001)

9
Comparisons Cu DMT vs. Cu reference
Nash et al. (1992)
AGI (1991)
Research Site Bothkennar (UK)
Research Site Fucino (Italy)
10
Comparisons MDMT vs. Mreference
MDMT
M back-calculated
Marchetti et al. (2006)
Lacasse (1986)
M by DMT vs. M back-calculated from local
vertical strains measured under Treporti
full-scale test embankment (Italy)
M by DMT vs. M by high quality oedometers Onsøy
(Norway)
11
Settlement prediction No. 1 DMT application

• Classic linear elastic 1-D approach or 3-D with
  E ? 0.8 MDMT (similar predictions)
• Settlement under working loads (Fs ? 2.5-3.5)

12
Summary of comparisons DMT-predicted vs. observed
settlements

• Large No. of case histories ? good agreement for
  wide range of soil types, settlements, footing
  sizes
• Average ratio DMT-calculated/observed settlement
  ? 1.3
• Band amplitude (ratio max/min) lt 2
  i.e. observed settlement within 50 from
  DMT-predicted

Monaco et al. (2006)
13
Compaction control

• Experience suggests DMT well suited to detect
  BENEFITS of SOIL IMPROVEMENT due to its high
  sensitivity to changes of stresses/density in
  soil
• Several comparisons of CPT and DMT before/after
  compaction
• Schmertmann et al. (1986), Jendeby (1992) ?
  increase in MDMT after compaction of sand ? 2
  increase in qc (CPT)
• Pasqualini Rosi (1993) ...

14
DMT vs. CPT before/after compaction
Ratio MDMT /qc before/after compaction of a loose
sand fill (Jendeby 1992)
15
Detecting slip surfaces in clay slopes
DMT-KD method ? Verify if an OC clay slope
contains ACTIVE (or old QUIESCENT) SLIP
SURFACES (Totani et al. 1997)
16
Validation of DMT-KD method
DOCUMENTED SLIP SURFACE
DOCUMENTED SLIP SURFACE (inclinometers)
17
DMT for LIQUEFACTION

• Correlations for evaluating Cyclic Resistance
  Ratio CRR from KD developed in past 2 decades,
  stimulated by

• Sensitivity of KD to factors known to increase
  liquefaction resistance Stress History,
  prestraining/aging, cementation, structure
• Correlation KD Relative Density
• Correlation KD In situ State Parameter

• Key element supporting well-based CRR-KD
  correlation ability of KD to reflect aging in
  sands (1st order of magnitude influence on
  liquefaction) sensitivity of KD to non-textbook
  OCR crusts in sands

18
Curves for evaluating CRR from KD (Seed Idriss
1971 simplified procedure)

• Summary latest version CRR-KD correlation see
  Monaco et al. (2005 ICSMGE Osaka)
• Magnitude M 7.5 Clean sand

19
DMT for DESIGN of LATERALLY LOADED PILES
Robertson et al. (1987) Marchetti et al. (1991) 2
methods recommended for deriving P-y curves for
laterally loaded piles from DMT (single pile, 1st
time monotonic loading)

• Independent validations ? 2 methods provide
  similar predictions, in very good agreement with
  observed full-scale pile behaviour

20
DMT for DESIGN of DIAPHRAGM WALLS
Monaco Marchetti (2004 ISC'2 Porto)

• Tentative correlation for deriving the
  coefficient of subgrade reaction Kh for design of
  multi-propped diaphragm walls from MDMT
• Indications on how to select input moduli for FEM
  analyses (PLAXIS Hardening Soil model) based on
  MDMT

21
Subgrade compaction control
Bangladesh Subgrade Compaction Case History 90 km
Road Rehabilitation Project
MDMT acceptance profile (max always found at
25-26 cm)

• Acceptance MDMT profile fixed and used as
  alternative/fast acceptance tool for quality
  control of subgrade compaction, with only
  occasional verifications by originally specified
  methods (Proctor, CBR, plate)

22
Seismic Dilatometer (SDMT)
Combination S DMT

• 2 receivers spaced 0.5 m
• Vs determined from delay arrival of impulse from
  1st to 2nd receiver (same hammer blow)
• Signal amplified digitized at depth
• Vs measured every 0.5 m

Hepton 1988 Martin Mayne 1997, 1998 ...
(Georgia Tech, USA)
23
Validation of Vs by SDMT
Comparison of Vs profiles by SDMTand by other
testsFucino research site(Italy)
24
SDMT results
SDMT profiles at the site of Fiumicino (Italy)
SDMT ? accurate and highly repeatable Vs (in
addition to usual DMT results)
25
In situ G-? decay curves by SDMT
Mayne (2001) Ishihara (2001)

• SDMT ? small strain modulus G0 from Vs
• working strain modulus MDMT (settlements)
• Tentative methods to derive in situ G-? curves by
  SDMT
• Two points help in selecting the G-? curve

26
SDMT for LIQUEFACTION
SDMT ? 2 parallel independent evaluations of CRR
from VS e KD (Seed Idriss 1971 simplified
procedure)
CRR from Vs
CRR from KD
Andrus Stokoe (2000) Andrus et al. (2004)
Monaco et al. (2005) ICSMGE Osaka
27
FINAL REMARKS

• DMT ? quick, simple, economical, highly
  reproducible in situ test
• Executable with a variety of field equipment
• Dependable estimates of various design
  parameters/information
• soil type
• stress state/history
• constrained modulus M
• undrained shear strength Cu in clay
• consolidation/flow parameters
• ...

28
FINAL REMARKS

• Variety of design applications
• Most effective vs. common penetration tests when
  settlements/deformations important for design
  (e.g. strict specs or need to decide piles or
  shallow ?)
• SDMT ? accurate measurements of Vs (and G0)
  usual DMT results greatly enhances DMT
  capability
