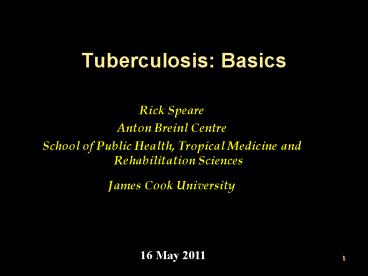

Tuberculosis: Basics

1
Tuberculosis Basics

• Rick Speare
• Anton Breinl Centre
• School of Public Health, Tropical Medicine and
  Rehabilitation Sciences
• James Cook University

16 May 2011
2
Objectives

• To provide background on TB to assist
  understanding of tuberculosis and control
  strategies

3
Tuberculosis

• Due to the bacterium, Mycobacterium tuberculosis
• Small due to M. bovis
• Pulmonary disease bloodstream spread to other
  organs
• Bacilli are coughed up and inhaled by others
• All ages can develop disease
• Infection can be acquired in childhood, remain
  latent and emerge as immunity wanes

4
Transmission

• Droplet transmission is usual route
• Mycobacterium aerosolised into droplets
  (coughing, speaking, breathing)
• Inhaled into alveoli of new host
• Grows in alveoli (Ghon focus)
• Carried to bronchial lymph nodes (Ghon complex)
• M. bovis can also be spread in milk from infected
  bovine udders

5
Histology of the normal alveolae

• http//www.anatomy.dal.ca/Human20Histology/Lab11/
  59ll4la.html

6
Histopathology of TB granuloma
7
Risk of Transmission

• People in close contact with TB case have highest
  risk of infection (clustered)
• Transmission can result from casual and brief
  contact in highly endemic areas
• South African studies demonstrated this (Verver
  et al 2004)
• Greater risk when number of bacteria are higher
• Risk of transmission falls rapidly with treatment

8

• http//www.health.vic.gov.au/ideas/diseases/tb_com
  munity

9
Pulmonary TB

• Chronic cough
• Productive
• Haemoptysis
• Weight loss
• Night sweating

10
Fatal pulmonary TB Prisoner in Lilongwe, Malawi
11
Very severe consolidation, caseating necrosis and
cavities
12
Another Malawaian patient with pulmonary TB and
cavities
13
(No Transcript)
14

• Consolidation
• Cavities

TB is a very destructive disease Diagnose
treat early!
15
Death from TB

• Respiratory failure
• Severe haemoptysis
• Systemic TB (miliary TB)
• Meningeal TB
• Other

16
Severe haemoptysis patient often drowns in their
own blood
17
Very destructive disease

• Cavities due to patient coughing up necrotic lung
• Fibrosis is common
• Damaged tissue can not be replaced
• Diagnose and treat early!

18
Healed Cavity
19
TB is mainly a pulmonary disease, but
extra-pulmonary disease is common

• Bacteraemia with seeding of multiple organs
  (miliary TB)
• Localised infection in any other organ
• Meningitis
• Osteomyelitis
• Arthritis
• Lymph node infection
• Other

20
TB meningitis infants AIDS
21
Osteomyelitis

• Arthritis

22
Osteomyelitis of spine
23
Diagnosis of pulmonary TB

• Detection of Mycobacterium tuberculosis in
  sputum
• Culture of sputum
• Smear of sputum
• Acid fast bacilli (stained with acid fast stain)
• PCR

Pulmonary TB can not be diagnosed from a chest
X-ray
24
TB Disease control

• The focus in control of TB is only on the person
  spreading TB
• Sputum positive case only (AFB Sm)
• Other cases are of minor significance in control
  of TB

Sometimes, clinical aims and TB control aims clash
25
Breaking Transmission

• Droplet transmission is usual route
• Points to break the transmission cycle
• Preventing viable Mycobacterium getting into
  droplets
• Preventing droplets with Mycobacterium getting
  into the alveoli of a new host
• Preventing Mycobacterium in alveoli from causing
  disease
