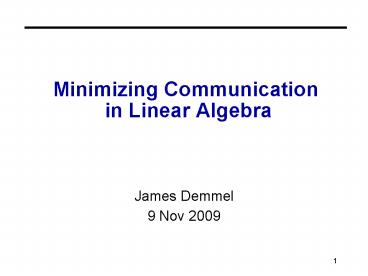

Minimizing Communication in Linear Algebra

1
Minimizing Communication in Linear Algebra

• James Demmel
• 9 Nov 2009

2
Outline

• Background 2 Big Events
• Why avoiding communication is important
• Communication-optimal direct linear algebra
• Autotuning of sparse matrix codes
• Communication-optimal iterative linear algebra

3
Collaborators

• Grey Ballard, UCB EECS
• Ioana Dumitriu, U. Washington
• Laura Grigori, INRIA
• Ming Gu, UCB Math
• Mark Hoemmen, UCB EECS
• Olga Holtz, UCB Math TU Berlin
• Julien Langou, U. Colorado Denver
• Marghoob Mohiyuddin, UCB EECS
• Oded Schwartz , TU Berlin
• Hua Xiang, INRIA
• Sam Williams, LBL
• Vasily Volkov, UCB EECS
• Kathy Yelick, UCB EECS NERSC
• BeBOP group, bebop.cs.berkeley.edu
• ParLab, parlab.eecs.berkeley.edu

Thanks to Intel, Microsoft, UC Discovery, NSF,
DOE,
4
2 Big Events

• Multicore revolution, requiring all software
  (where performance matters!) to change
• ParLab Industry/State funded center with 15
  faculty, 50 grad students ( parlab.eecs.berkele
  y.edu )
• Rare synergy between commercial and scientific
  computing
• Establishment of a new graduate program in
  Computational Science and Engineering (CSE)
• 117 Faculty from 22 Departments
• 60 existing courses, more being developed
• CS267 Applications of Parallel Computers
• www.cs.berkeley.edu/demmel/cs267_Spr09
• 3 Day Parallel Boot Camp in August
• parlab.eecs.berkeley.edu/2009bootcamp

5
Parallelism Revolution is Happening Now

• Chip density continuing to increase 2x every 2
  years
• Clock speed is not
• Number of processor cores may double instead
• There is little or no more hidden parallelism
  (ILP) to be found
• Parallelism must be exposed to and managed by
  software

Source Intel, Microsoft (Sutter) and Stanford
(Olukotun, Hammond)
6
The 7 Dwarfs of High Performance Computing

• Phil Colella (LBL) identified 7 kernels out of
  which most large scale simulation and
  data-analysis programs are composed

• Dense Linear Algebra
• Ex Solve Axb or Ax ?x where A is a dense
  matrix
• Sparse Linear Algebra
• Ex Solve Axb or Ax ?x where A is a sparse
  matrix (mostly zero)
• Operations on Structured Grids
• Ex Anew(i,j) 4A(i,j) A(i-1,j) A(i1,j)
  A(i,j-1) A(i,j1)
• Operations on Unstructured Grids
• Ex Similar, but list of neighbors varies from
  entry to entry
• Spectral Methods
• Ex Fast Fourier Transform (FFT)
• N-Body (aka Particle Methods)
• Ex Compute electrostatic forces using Fast
  Multiple Method
• Monte Carlo (aka MapReduce)
• Ex Many independent simulations using different
  inputs

7
Motif/Dwarf Common Computational Methods (Red
Hot ? Blue Cool)
www.eecs.berkeley.edu/Pubs/TechRpts/2006/EECS-2006
-183.pdf
8
2 Big Events

• Multicore revolution, requiring all software
  (where performance matters!) to change
• ParLab Industry/State funded center with 15
  faculty, 50 grad students ( parlab.eecs.berkele
  y.edu )
• Rare synergy between commercial and scientific
  computing
• Establishment of a new graduate program in
  Computational Science and Engineering (CSE) at
  UCB
• 117 Faculty from 22 Departments
• 60 existing courses, more being developed
• CS267 Applications of Parallel Computers
• www.cs.berkeley.edu/demmel/cs267_Spr09
• 3 Day Parallel Boot Camp in August
• parlab.eecs.berkeley.edu/2009bootcamp

9
Why avoiding communication is important (1/2)

• Algorithms have two costs
• Arithmetic (FLOPS)
• Communication moving data between
• levels of a memory hierarchy (sequential case)
• processors over a network (parallel case).

10
Why avoiding communication is important (2/2)

• Running time of an algorithm is sum of 3 terms
• flops time_per_flop
• words moved / bandwidth
• messages latency

• Time_per_flop ltlt 1/ bandwidth ltlt latency
• Gaps growing exponentially with time

Annual improvements Annual improvements Annual improvements Annual improvements
Time_per_flop Bandwidth Latency
Network 26 15
DRAM 23 5
59
11
Naïve Sequential Matrix Multiply C C AB

• for i 1 to n
• read row i of A into fast memory, n2 reads
• for j 1 to n
• read C(i,j) into fast memory, n2 reads
• read column j of B into fast memory, n3
  reads
• for k 1 to n
• C(i,j) C(i,j) A(i,k) B(k,j)
• write C(i,j) back to slow memory, n2
  writes

n3 O(n2) reads/writes altogether
A(i,)
C(i,j)
C(i,j)
B(,j)



12
Less Communication with Blocked Matrix Multiply

• Blocked Matmul C AB explicitly refers to
  subblocks of A, B and C of dimensions that depend
  on cache size

• Break Anxn, Bnxn, Cnxn into bxb blocks labeled
  A(i,j), etc
• b chosen so 3 bxb blocks fit in cache
• for i 1 to n/b, for j1 to n/b, for k1 to
  n/b
• C(i,j) C(i,j) A(i,k)B(k,j) b x
  b matmul, 4b2 reads/writes
• (n/b)3 4b2 4n3/b reads/writes altogether
• Minimized when 3b2 cache size M, yielding
  O(n3/M1/2) reads/writes
• What if we had more levels of memory? (L1, L2,
  cache etc)?
• Would need 3 more nested loops per level

13
Blocked vs Cache-Oblivious Algorithms

• Blocked Matmul C AB explicitly refers to
  subblocks of A, B and C of dimensions that depend
  on cache size

Break Anxn, Bnxn, Cnxn into bxb blocks labeled
A(i,j), etc b chosen so 3 bxb blocks fit in
cache for i 1 to n/b, for j1 to n/b, for
k1 to n/b C(i,j) C(i,j) A(i,k)B(k,j)
b x b matmul another level of
memory would need 3 more loops

• Cache-oblivious Matmul C AB is independent of
  cache

Function C MM(A,B) If A and B are 1x1 C
A B else Break Anxn, Bnxn, Cnxn into
(n/2)x(n/2) blocks labeled A(i,j), etc for
i 1 to 2, for j 1 to 2, for k 1 to
2 C(i,j) C(i,j) MM( A(i,k), B(k,j)
) n/2 x n/2 matmul
14
Direct linear algebra Prior Work on Matmul

• Assume n3 algorithm (i.e. not Strassen-like)
• Sequential case, with fast memory of size M
• Lower bound on words moved to/from slow memory
  ? (n3 / M1/2 ) Hong, Kung, 81
• Attained using blocked or cache-oblivious
  algorithms

• Parallel case on P processors
• Let NNZ be total memory needed assume load
  balanced
• Lower bound on words communicated
  ? (n3 /(P NNZ )1/2 )
  Irony, Tiskin, Toledo, 04

NNZ (name of alg) Lower bound on words Attained by
3n2 (2D alg) ? (n2 / P1/2 ) Cannon, 69
3n2 P1/3 (3D alg) ? (n2 / P2/3 ) Johnson,93
15
New lower bound for all direct linear algebra

• Let M fast memory size per processor
• words_moved by at least one processor
• (flops / M1/2 )
• messages_sent by at least one processor
• (flops / M3/2 )

• Holds for
• BLAS, LU, QR, eig, SVD,
• Some whole programs (sequences of these
  operations, no matter how they are interleaved,
  eg computing Ak)
• Dense and sparse matrices (where flops ltlt n3 )
• Sequential and parallel algorithms
• Some graph-theoretic algorithms (eg
  Floyd-Warshall)
• See BDHS09 proof sketch if time!

16
Can we attain these lower bounds?

• Do conventional dense algorithms as implemented
  in LAPACK and ScaLAPACK attain these bounds?
• Mostly not
• If not, are there other algorithms that do?
• Yes
• Goals for algorithms
• Minimize words ? (flops/ M1/2 )
• Minimize messages ? (flops/ M3/2 )
• Need new data structures
• Minimize for multiple memory hierarchy levels
• Cache-oblivious algorithms would be simplest
• Fewest flops when matrix fits in fastest memory
• Cache-oblivious algorithms dont always attain
  this
• Only a few sparse algorithms so far

17
Minimizing messages requires new data structures

• Need to load/store whole rectangular subblock of
  matrix with one message
• Incompatible with conventional columnwise
  (rowwise) storage
• Ex Rows (columns) not in contiguous memory
  locations
• Blocked storage store as matrix of bxb blocks,
  each block stored contiguously
• Ok for one level of memory hierarchy, what if
  more?
• Recursive blocked storage store each block
  using subblocks

18
Summary of dense sequential algorithms attaining
communication lower bounds

• Algorithms shown minimizing Messages use
  (recursive) block layout
• Many references (see reports), only some shown,
  plus ours
• Cache-oblivious are underlined, Green are ours,
  ? is unknown/future work

Algorithm 2 Levels of Memory 2 Levels of Memory Multiple Levels of Memory Multiple Levels of Memory
Words Moved and Messages Words Moved and Messages
BLAS-3 Usual blocked or recursive algorithms Usual blocked or recursive algorithms Usual blocked algorithms (nested), or recursive Gustavson,97 Usual blocked algorithms (nested), or recursive Gustavson,97
Cholesky LAPACK (with b M1/2) Gustavson 97 BDHS09 Gustavson,97 Ahmed,Pingali,00 BDHS09 (?same) (?same)
LU with pivoting LAPACK (rarely) Toledo,97 , GDX 08 GDX 08 not partial pivoting Toledo, 97 GDX 08? GDX 08?
QR LAPACK (rarely) Elmroth,Gustavson,98 DGHL08 Frens,Wise,03 but 3x flops DGHL08 Elmroth, Gustavson,98 DGHL08 ? Frens,Wise,03 DGHL08 ?
Eig, SVD Not LAPACK BDD09 randomized, but more flops Not LAPACK BDD09 randomized, but more flops BDD09 BDD09
19
Summary of dense 2D parallel algorithms
attaining communication lower bounds

• Assume nxn matrices on P processors, memory
  per processor O(n2 / P)
• ScaLAPACK assumes best block size b chosen
• Many references (see reports), Green are ours
• Recall lower bounds
• words_moved ?( n2 / P1/2 ) and
  messages ?( P1/2 )

Algorithm Reference Factor exceeding lower bound for words_moved Factor exceeding lower bound for messages
Matrix multiply Cannon, 69 1 1
Cholesky ScaLAPACK log P log P
LU GDX08 ScaLAPACK log P log P log P ( N / P1/2 ) log P
QR DGHL08 ScaLAPACK log P log P log3 P ( N / P1/2 ) log P
Sym Eig, SVD BDD09 ScaLAPACK log P log P log3 P N / P1/2
Nonsym Eig BDD09 ScaLAPACK log P P1/2 log P log3 P N log P
20
QR of a tall, skinny matrix is bottleneckUse
TSQR instead
Q is represented implicitly as a product (tree of
factors) DGHL08
21
Minimizing Communication in TSQR
Multicore / Multisocket / Multirack / Multisite /
Out-of-core ?
Can choose reduction tree dynamically
22
Performance of TSQR vs Sca/LAPACK

• Parallel
• Intel Clovertown
• Up to 8x speedup (8 core, dual socket, 10M x 10)
• Pentium III cluster, Dolphin Interconnect, MPICH
• Up to 6.7x speedup (16 procs, 100K x 200)
• BlueGene/L
• Up to 4x speedup (32 procs, 1M x 50)
• Both use Elmroth-Gustavson locally enabled by
  TSQR
• Sequential
• OOC on PowerPC laptop
• As little as 2x slowdown vs (predicted) infinite
  DRAM
• LAPACK with virtual memory never finished
• See UC Berkeley EECS Tech Report 2008-89
• General CAQR Communication-Avoiding QR in
  progress

23
Modeled Speedups of CAQR vs ScaLAPACK
Petascale up to 22.9x IBM Power 5
up to 9.7x Grid up to 11x
Petascale machine with 8192 procs, each at 500
GFlops/s, a bandwidth of 4 GB/s.
24
Randomized Rank-Revealing QR

• Needed for eigenvalue and SVD algorithms
• func Q,R,V RRQR(A)
• V,R1 qr(randn(n,n)) V random with Haar
  measure
• Q,R qr(A VT ) so A Q R V
• Theorem (DDH). Provided that sr1 ltlt sr s1 ,
  RRQR produces a rank-revealing decomposition
  with high probability (when r O(n), the
  probability is 1 O(n-c) ).
• Can apply to
• A A1/-1 A2/-1 Ak/-1
• Do RRQR, followed by a series of (k-1) QR / RQ to
  propagate unitary/orthogonal matrix to the front
• Analogous to Stewart, 94

25
What about o(n3) algorithms, like Strassen?

• Thm (DDHK07)
• Given any matmul running in O(n?) ops for some
  ?gt2, it can be made stable and still run in
  O(n??) ops, for any ?gt0
• Current record ? ? 2.38
• Thm (DDH08)
• Given any stable matmul running in O(n??) ops,
  it is possible to do backward stable dense linear
  algebra in O(n??) ops
• Also reduces communication to O(n??)
• But can do much better (work in progress)

26
Direct Linear Algebra summary and future work

• Communication lower bounds on words_moved and
  messages
• BLAS, LU, Cholesky, QR, eig, SVD,
• Some whole programs (compositions of these
  operations, no matter how
  they are interleaved, eg computing Ak)
• Dense and sparse matrices (where flops ltlt n3 )
• Sequential and parallel algorithms
• Some graph-theoretic algorithms (eg
  Floyd-Warshall)
• Algorithms that attain these lower bounds
• Nearly all dense problems (some open problems)
• A few sparse problems
• Speed ups in theory and practice
• Future work
• Lots to implement, tune
• Next generation of Sca/LAPACK on heterogeneous
  architectures (MAGMA)
• Few algorithms in sparse case
• Strassen-like algorithms
• 3D Algorithms (only for Matmul so far), may be
  important for scaling

27
How hard is hand-tuning matmul, anyway?

• Results of 22 student teams trying to tune
  matrix-multiply, in CS267 Spr09
• Students given blocked code to start with
• Still hard to get close to vendor tuned
  performance (ACML)
• For more discussion, see www.cs.berkeley.edu/vol
  kov/cs267.sp09/hw1/results/

28
How hard is hand-tuning matmul, anyway?
29
What part of the Matmul Search Space Looks Like
Number of columns in register block
Number of rows in register block
A 2-D slice of a 3-D register-tile search space.
The dark blue region was pruned. (Platform Sun
Ultra-IIi, 333 MHz, 667 Mflop/s peak, Sun cc v5.0
compiler)
30
Autotuning Matmul with ATLAS (n 500)
Source Jack Dongarra

• ATLAS is faster than all other portable BLAS
  implementations and it is comparable with
  machine-specific libraries provided by the
  vendor.
• ATLAS written by C. Whaley, inspired by PHiPAC,
  by Asanovic, Bilmes, Chin, D.

31
Automatic Performance Tuning

• Goal Let machine do hard work of writing fast
  code
• What do tuning of Matmul, dense BLAS, FFTs,
  signal processing, have in common?
• Can do the tuning off-line once per
  architecture, algorithm
• Can take as much time as necessary (hours, a
  week)
• At run-time, algorithm choice may depend only on
  few parameters (matrix dimensions, size of FFT,
  etc.)
• Cant always do tuning off-line
• Algorithm and implementation may strongly depend
  on data only known at run-time
• Ex Sparse matrix nonzero pattern determines both
  best data structure and implementation of
  Sparse-matrix-vector-multiplication (SpMV)
• Part of search for best algorithm just be done
  (very quickly!) at run-time

32
Source Accelerator Cavity Design Problem (from
Ko via Husbands)
33
Linear Programming Matrix

34
A Sparse Matrix You Use Every Day
35
SpMV with Compressed Sparse Row (CSR) Storage
Matrix-vector multiply kernel y(i) ? y(i)
A(i,j)x(j) for each row i for kptri to
ptri1 do yi yi valkxindk
36
Example The Difficulty of Tuning

• n 21200
• nnz 1.5 M
• kernel SpMV
• Source NASA structural analysis problem

37
Example The Difficulty of Tuning

• n 21200
• nnz 1.5 M
• kernel SpMV
• Source NASA structural analysis problem

• 8x8 dense substructure exploit this to limit
  mem_refs

38
Speedups on Itanium 2 The Need for Search
Mflop/s
Mflop/s
39
Register Profile Itanium 2
1190 Mflop/s
190 Mflop/s
40
Register Profiles IBM and Intel IA-64
Power3 - 17
Power4 - 16
252 Mflop/s
820 Mflop/s
122 Mflop/s
459 Mflop/s
Itanium 2 - 33
Itanium 1 - 8
247 Mflop/s
1.2 Gflop/s
107 Mflop/s
190 Mflop/s
41
Register Profiles Sun and Intel x86
Ultra 2i - 11
Ultra 3 - 5
72 Mflop/s
90 Mflop/s
35 Mflop/s
50 Mflop/s
Pentium III-M - 15
Pentium III - 21
108 Mflop/s
122 Mflop/s
42 Mflop/s
58 Mflop/s
42
Another example of tuning challenges

• More complicated non-zero structure in general
• N 16614
• NNZ 1.1M

43
Zoom in to top corner

• More complicated non-zero structure in general
• N 16614
• NNZ 1.1M

44
3x3 blocks look natural, but

• More complicated non-zero structure in general
• Example 3x3 blocking
• Logical grid of 3x3 cells
• But would lead to lots of fill-in

45
Extra Work Can Improve Efficiency!

• More complicated non-zero structure in general
• Example 3x3 blocking
• Logical grid of 3x3 cells
• Fill-in explicit zeros
• Unroll 3x3 block multiplies
• Fill ratio 1.5
• On Pentium III 1.5x speedup!
• Actual mflop rate 1.52 2.25 higher

46
Extra Work Can Improve Efficiency!

• More complicated non-zero structure in general
• Example 3x3 blocking
• Logical grid of 3x3 cells
• Fill-in explicit zeros
• Unroll 3x3 block multiplies
• Fill ratio 1.5
• On Pentium III 1.5x speedup!
• Actual mflop rate 1.52 2.25 higher
• In general sample matrix to choose rxc block
  structure using heuristic

47
Source Accelerator Cavity Design Problem (from
Ko via Husbands)
48
Post-RCM Reordering
49
100x100 Submatrix Along Diagonal
50
Microscopic Effect of RCM Reordering
Before Green Red After Green Blue
51
Microscopic Effect of Combined RCMTSP
Reordering
Before Green Red After Green Blue
Speedups from 1.6x to 3.3x
52
Summary of SpMV Performance Optimizations

• Sequential SpMV
• Register blocking (RB) up to 4x over CSR
• Symmetry 2.8x over CSR, 2.6x over RB
• Reordering to create dense structure splitting
  2x over CSR
• Variable block splitting 2.1x over CSR, 1.8x
  over RB
• Diagonals 2x over CSR
• Cache blocking 2.8x over CSR
• Multiple vectors (SpMM) 7x over CSR
• And combinations
• Multicore SpMV
• NUMA, Affinity, SW Prefetch, Cache/LS/TLB
  blocking 4x over naïve Pthreads
• Sequential Sparse triangular solve
• Hybrid sparse/dense data structure 1.8x over CSR
• Higher-level kernels
• AATx, ATAx 4x over CSR, 1.8x over RB
• More later
• All optimizations (being) automated in OSKI
  (bebop.cs.berkeley.edu)
• Being adopted by Cray Python interface in
  progress

53
Avoiding Communication in Iterative Linear Algebra

• k-steps of typical iterative solver for sparse
  Axb or Ax?x
• Does k SpMVs with starting vector
• Finds best solution among all linear
  combinations of these k1 vectors
• Many such Krylov Subspace Methods
• Conjugate Gradients, GMRES, Lanczos, Arnoldi,
• Goal minimize communication in Krylov Subspace
  Methods
• Assume matrix well-partitioned, with modest
  surface-to-volume ratio
• Parallel implementation
• Conventional O(k log p) messages, because k
  calls to SpMV
• New O(log p) messages - optimal
• Serial implementation
• Conventional O(k) moves of data from slow to
  fast memory
• New O(1) moves of data optimal
• Lots of speed up possible (modeled and measured)
• Price some redundant computation
• Much prior work
• See bebop.cs.berkeley.edu
• CG van Rosendale, 83, Chronopoulos and Gear,
  89
• GMRES Walker, 88, Joubert and Carey, 92,
  Bai et al., 94

54
Minimizing Communication of GMRES to solve Axb

• GMRES find x in spanb,Ab,,Akb minimizing
  Ax-b 2
• Cost of k steps of standard GMRES vs new GMRES

Standard GMRES for i1 to k w A
v(i-1) MGS(w, v(0),,v(i-1)) update
v(i), H endfor solve LSQ problem with
H Sequential words_moved O(knnz)
from SpMV O(k2n) from MGS Parallel
messages O(k) from SpMV
O(k2 log p) from MGS
Communication-avoiding GMRES W v, Av, A2v,
, Akv Q,R TSQR(W) Tall Skinny
QR Build H from R, solve LSQ
problem Sequential words_moved
O(nnz) from SpMV O(kn) from
TSQR Parallel messages O(1) from
computing W O(log p) from TSQR

• Oops W from power method, precision lost!

55
Monomial basis Ax,,Akx fails to converge
A different polynomial basis does converge
56
Speed ups of GMRES on 8-core Intel Clovertown
MHDY09
57
Communication Avoiding Iterative Linear Algebra
Future Work

• Lots of algorithms to implement, autotune
• Make widely available via OSKI, Trilinos, PETSc,
  Python,
• Extensions to other Krylov subspace methods
• So far just Lanczos/CG and Arnoldi/GMRES
• BiCGStab, CGS, QMR,
• Add preconditioning
• Block diagonal are easiest
• Hierarchical, semiseparable,
• Works if interactions between distant points can
  be compressed

58
Summary

• Dont Communic

59
1/3
60
2/3
61
3/3
62

• Extra Slides

63
Proof of Communication Lower Bound on C AB
(1/5)

• Proof from Irony/Toledo/Tiskin (2004)
• Original proof, then generalization
• Think of instruction stream being executed
• Looks like add, load, multiply, store,
  load, add,
• Each load/store moves a word between fast and
  slow memory
• We want to count the number of loads and stores,
  given that we are multiplying n-by-n matrices C
  AB using the usual 2n3 flops, possibly reordered
  assuming addition is commutative/associative
• Assuming that at most M words can be stored in
  fast memory
• Outline
• Break instruction stream into segments, each with
  M loads and stores
• Somehow bound the maximum number of flops that
  can be done in each segment, call it F
• So F segments ? T total flops 2n3 ,
  so segments ? T / F
• So loads stores M segments ? M T /
  F

64
Illustrating Segments, for M3
...
65
Proof of Communication Lower Bound on C AB
(1/5)

• Proof from Irony/Toledo/Tiskin (2004)
• Original proof, then generalization
• Think of instruction stream being executed
• Looks like add, load, multiply, store,
  load, add,
• Each load/store moves a word between fast and
  slow memory
• We want to count the number of loads and stores,
  given that we are multiplying n-by-n matrices C
  AB using the usual 2n3 flops, possibly reordered
  assuming addition is commutative/associative
• Assuming that at most M words can be stored in
  fast memory
• Outline
• Break instruction stream into segments, each with
  M loads and stores
• Somehow bound the maximum number of flops that
  can be done in each segment, call it F
• So F segments ? T total flops 2n3 ,
  so segments ? T / F
• So loads stores M segments ? M T /
  F

66
Proof of Communication Lower Bound on C AB
(2/5)

• Given segment of instruction stream with M loads
  stores, how many adds multiplies (F) can we
  do?
• At most 2M entries of C, 2M entries of A and/or
  2M entries of B can be accessed
• Use geometry
• Represent n3 multiplications by n x n x n cube
• One n x n face represents A
• each 1 x 1 subsquare represents one A(i,k)
• One n x n face represents B
• each 1 x 1 subsquare represents one B(k,j)
• One n x n face represents C
• each 1 x 1 subsquare represents one C(i,j)
• Each 1 x 1 x 1 subcube represents one C(i,j)
  A(i,k) B(k,j)
• May be added directly to C(i,j), or to temporary
  accumulator

67
Proof of Communication Lower Bound on C AB
(3/5)
k
C face
C(2,3)
C(1,1)
B(3,1)
A(1,3)
j
B(2,1)
A(1,2)
B(1,3)
B(1,1)
A(2,1)
A(1,1)
B face
i

• If we have at most 2M A squares, 2M B
  squares, and 2M C squares on faces, how many
  cubes can we have?

A face
68
Proof of Communication Lower Bound on C AB
(4/5)
x
y
z
y
z
x
(i,k) is in A shadow if (i,j,k) in 3D set
(j,k) is in B shadow if (i,j,k) in 3D set
(i,j) is in C shadow if (i,j,k) in 3D
set Thm (Loomis Whitney, 1949) cubes in
3D set Volume of 3D set (area(A shadow)
area(B shadow) area(C shadow)) 1/2
cubes in black box with side lengths x, y
and z Volume of black box xyz ( xz zy
yx)1/2 (A?s B?s C?s )1/2
69
Proof of Communication Lower Bound on C AB
(5/5)

• Consider one segment of instructions with M
  loads, stores
• Can be at most 2M entries of A, B, C available in
  one segment
• Volume of set of cubes representing possible
  multiply/adds in one segment is (2M 2M
  2M)1/2 (2M) 3/2 F
• Segments ? 2n3 / F
• Loads Stores M Segments ? M 2n3 / F
  n3 / (2M)1/2

• Parallel Case apply reasoning to one processor
  out of P
• Adds and Muls ? 2n3 / P (at least one proc
  does this )
• M n2 / P (each processor gets equal fraction of
  matrix)
• Load Stores words moved from or to
  other procs ? M (2n3 /P) / F M (2n3 /P) /
  (2M) 3/2 n2 / (2P)1/2

70
How to generalize this lower bound (1/4)

• It doesnt depend on C(i,j) being a matrix entry,
  just a unique memory location (same for A(i,k)
  and B(k,j) )

• It doesnt depend on C and A not overlapping (or
  C and B, or A and B)
• Some reorderings may change answer still get a
  lower bound

• It doesnt depend on doing n3 multiply/adds

• It doesnt depend on C(i,j) just being a sum of
  products

C(i,j) ?k A(i,k)B(k,j)
For all (i,j) ? S Mem(c(i,j))
fij ( gijk ( Mem(a(i,k)) , Mem(b(k,j)) ) for k ?
Sij , some other arguments)
71
How to generalize this lower bound (2/4)

• It does assume the presence of an operand
  generating a load and/or store how could this
  not happen?
• Mem(b(k,j)) could be reused in many more gijk
  than (P) allows
• Ex Compute C(m) A B.m (Matlab notation)
  for m1 to t
• Can move t1/2 times fewer words than ? (flops /
  M1/2 )
• We might generate a result during a segment, use
  it, and discard it, with generating any memory
  traffic
• Turns out QR, eig, SVD all may do this
• Need a different analysis for them later

72
How to generalize this lower bound (3/4)

• Need to distinguish Sources, Destinations of
  each operand in fast memory during a segment
• Possible Sources
• S1 Already in fast memory at start of segment,
  or read at most 2M
• S2 Created during segment no bound without
  more information
• Possible Destinations
• D1 Left in fast memory at end of segment, or
  written at most 2M
• D2 Discarded no bound without more information
• Need to assume no S2/D2 arguments at most 4M of
  others

73
How to generalize this lower bound (4/4)

• Theorem To evaluate (P) with memory of size M,
  where
• fij and gijk are nontrivial functions of their
  arguments
• G is the total number of gijks,
• No S2/D2 arguments
• requires at least G/ (8M)1/2 M slow
  memory references

• Simpler words_moved ? (flops / M1/2 )

• Corollary To evaluate (P) requires at least
  G/ (81/2 M3/2 ) 1
  messages (simpler ? (flops / M3/2 ) )
• Proof maximum message size is M

74
Some Corollaries of this lower bound (1/2)
words_moved ? (flops / M1/2 )
?

• Theorem applies to dense or sparse, parallel or
  sequential
• MatMul, including ATA or A2
• Triangular solve C A-1X
• C(i,j) (X(i,j) - ?klti A(i,k)C(k,j)) / A(i,i)
  A lower triangular
• C plays double role of b and c in Model (P)
• LU factorization (any pivoting, LU or ILU)
• L(i,j) (A(i,j) - ?kltj L(i,k)U(k,j)) / U(j,j),
  U(i,j) A(i,j) - ?klti L(i,k)U(k,j)
• L (and U) play double role as c and a (c and b)
  in Model (P)
• Cholesky (any diagonal pivoting, C or IC)
• L(i,j) (A(i,j) - ?kltj L(i,k)LT(k,j)) / L(j,j),
  L(j,j) (A(j,j) - ?kltj L(j,k)LT(k,j))1/2
• L (and LT) plays triple role as a, b and c

75
Some Corollaries of this lower bound (2/2)
words_moved ? (flops / M1/2 )
?

• Applies to simplified operations
• Ex Compute determinant of A(i,j) func(i,j)
  using LU, where each func(i,j) called just
  once so no inputs and 1 output
• Still get ? (flops / M1/2 2n2) words_moved,
  by imposing loads/stores

• Applies to compositions of operations
• Ex Compute Ak by repeated squaring, only input
  A, output Ak
• Still get ? (flops / M1/2 n2 log k ) by
  imposing loads/stores,
• Holds for any interleaving of operations

• Applies to some graph algorithms
• Ex All-Pairs-Shortest-Path by Floyd-Warshall
  gijk and fij min
• Get ? (F / M1/2) words_moved where F? n4 , n3
  log n , n3

76
Lower bounds for Orthogonal Transformations (1/4)

• Needed for QR, eig, SVD,
• Analyze Blocked Householder Transformations
• ?j1 to b (I 2 uj uTj ) I U T UT where U
  u1 , , ub
• Treat Givens as 2x2 Householder
• Model details and assumptions
• Write (I U T UT )A A U(TUT A) A UZ
  where Z T(UT A)
• Only count operations in all A UZ operations
• Generically a large fraction of the work
• Assume Forward Progress, that each successive
  Householder transformation leaves previously
  created zeros zero Ok for
• QR decomposition
• Reductions to condensed forms (Hessenberg,
  tri/bidiagonal)
• Possible exception bulge chasing in banded case
• One sweep of (block) Hessenberg QR iteration

77
Lower bounds for Orthogonal Transformations (2/4)

• Perform many A UZ where Z T(UT A)
• First challenge to applying theorem need to
  collect all A-UZ into one big set to which model
  (P) applies
• Write them all as A(i,j) A(i,j) - ?k U(i,k)
  Z(k,j) where k index of
  k-th transformation,
• k not necessarily index of column of A it comes
  from
• Second challenge All Z(k,j) may be S2/D2
• Recall S2/D2 means computed on the fly and
  discarded
• Ex An x 2n Qn x n Rn x 2n where 2n2 M so A
  fits in cache
• Represent Q as n(n-1)/2 2x2 Householder (Givens)
  transforms
• There are n2(n-1)/2 ?(M3/2) nonzero Z(k,j), not
  O(M)
• Still only do ?(M3/2) flops during segment
• But cant use Loomis-Whitney to prove it!
• Need a new idea

78
Lower bounds for Orthogonal Transformations (3/4)

• Dealing with Z(k,j) being S2/D2
• How to bound flops in A(i,j) A(i,j) - ?k
  U(i,k) Z(k,j) ?
• Neither A nor U is S2/D2
• A either turned into R or U, which are output
• So at most 2M of each during segment
• flops ( U(i,k) ) ( columns A(,j) present
  )
• ( U(i,k) ) ( A(i,j) / min
  nonzeros per column of A)
• h O(M) / r
  where h O(M)
• How small can r be?
• To store h U(i,k) Householder vector entries
  in r rows, there can be at most r in the
  first column, r-1 in the second, etc.,
• (to maintain Forward Progress) so r(r-1)/2 ?
  h so r ? h1/2
• flops h O(M) / r O(M) h1/2 O(M3/2) as
  desired

79
Lower bounds for Orthogonal Transformations (4/4)

• Theorem words_moved by QR decomposition using
  (blocked) Householder transformations ?( flops
  / M1/2 )
• Theorem words_moved by reduction to Hessenberg
  form, tridiagonal form, bidiagonal form, or one
  sweep of QR iteration (or block versions of any
  of these) ?( flops / M1/2 )
• Assuming Forward Progress (created zeros remain
  zero)
• Model Merge left and right orthogonal
  transformations
• A(i,j) A(i,j) - ?kLUL(i,kL) ZL(kL,j) -
  ?kRZR(i,kR) UR(j,kR)

80
Summary of dense sequential Cholesky algorithms
attaining communication lower bounds

• Algorithms shown minimizing Messages assume
  (recursive) block layout
• Many references (see reports), only some shown,
  plus ours
• Oldest reference may or may not include
  analysis
• Cache-oblivious are underlined, Green are ours,
  ? is unknown/future work
• b block size, M fast memory size, n
  dimension

Algorithm 2 Levels of Memory 2 Levels of Memory Multiple Levels of Memory Multiple Levels of Memory
Words Moved and Messages Words Moved and Messages
Cholesky LAPACK (with b M1/2) Gustavson, 97 recursive, assumed good MatMul available BDHS09 BDHS09 like Gustavson,97 Ahmed,Pingali,00 Uses recursive Cholesky, TRSM and Matmul (?same) BDHS09 has analysis (?same) BDHS09 has analysis
81
Summary of dense sequential QR algorithms
attaining communication lower bounds

• Algorithms shown minimizing Messages assume
  (recursive) block layout
• Many references (see reports), only some shown,
  plus ours
• Oldest reference may or may not include
  analysis
• Cache-oblivious are underlined, Green are ours,
  ? is unknown/future work
• b block size, M fast memory size, n
  dimension

Algorithm 2 Levels of Memory 2 Levels of Memory Multiple Levels of Memory Multiple Levels of Memory
Words Moved and Messages Words Moved and Messages
QR Elmroth, Gustavson,98 Recursive, may do more flops LAPACK (only for n?M and bM1/2, or n2?M) DGHL08 Frens,Wise,03 explicit Q only, 3x more flops DGHL08 implicit Q, but represented differently, same flop count Elmroth, Gustavson,98 DGHL08? Frens,Wise,03 DGHL08? Can we get the same flop count?
82
Summary of dense sequential LU algorithms
attaining communication lower bounds

• Algorithms shown minimizing Messages assume
  (recursive) block layout
• Many references (see reports), only some shown,
  plus ours
• Oldest reference may or may not include
  analysis
• Cache-oblivious are underlined, Green are ours,
  ? is unknown/future work
• b block size, M fast memory size, n
  dimension

Algorithm 2 Levels of Memory 2 Levels of Memory Multiple Levels of Memory Multiple Levels of Memory
Words Moved and Messages Words Moved and Messages
LU with pivoting Toledo, 97 recursive, assumes good TRSM and Matmul available LAPACK (only for n?M and bM1/2, or n2?M) GDX08 Different than partial pivoting, still stable GDX08 Toledo, 97 GDX08? GDX08?
83
Same idea for LU, almost GDX08

• First idea Use same reduction tree as in QR,
  with LU at each node
• Numerically unstable!
• Need a different pivoting scheme
• At each node in tree, TSLU selects b pivot rows
  from 2b candidates from its 2 child nodes
• At each node, do LU on 2b original rows selected
  by child nodes, not U factors from child
  nodes
• When TSLU done, permute b selected rows to top of
  original matrix, redo b steps of LU without
  pivoting
• Thm Same results as partial pivoting on
  different input matrix whose entries are the same
  magnitudes as original
• CALU Communication Avoiding LU for general A
• Use TSLU for panel factorizations
• Apply to rest of matrix
• Cost redundant panel factorizations
• Benefit
• Stable in practice, but not same pivot choice as
  GEPP
• b times fewer messages overall - faster

84
TSLU LU factorization of a tall skinny matrix
First try the obvious generalization of TSQR
85
Growth factor for TSLU based factorization

• Unstable for large P and large matrices.
• When P rows, TSLU is equivalent to parallel
  pivoting.

Courtesy of H. Xiang
86
Growth factor for better CALU approach
Like threshold pivoting with worst case threshold
.33 , so L lt 3 Testing shows about same
residual as GEPP
87
Performance vs ScaLAPACK

• TSLU (Tall-Skinny)
• IBM Power 5
• Up to 4.37x faster (16 procs, 1M x 150)
• Cray XT4
• Up to 5.52x faster (8 procs, 1M x 150)
• CALU (Square)
• IBM Power 5
• Up to 2.29x faster (64 procs, 1000 x 1000)
• Cray XT4
• Up to 1.81x faster (64 procs, 1000 x 1000)
• See INRIA Tech Report 6523 (2008), paper at SC08

88
CALU speedup prediction for a Petascale machine -
up to 81x faster
P 8192
Petascale machine with 8192 procs, each at 500
GFlops/s, a bandwidth of 4 GB/s.
89
Eigenvalue problems and SVD

• Uses spectral divide and conquer
• Idea goes back to Bulgakov, Godunov, Malyshev
• Roughly If A2k QR, leading columns of Q
  converge to span invariant subspace for
  eigenvalues of A outside unit circle so QAQ
  becomes block upper triangular
• Repeated squaring done implicitly
• Bai, D., Gu, 97
• Reduced just to Matmul, QR, and Generalized QR
  with pivoting
• Eliminated need for exp(A), other improvements
• DDH,07
• Introduced randomized rank revealing QR
• Q,Rqr(randn(n,n)), Q,Rqr(AQ)
• Just need Matmul and QR
• BDD,09
• Shows that randomized GQR also rank revealing
• Shows limits of divide-and-conquer, depending on
  pseudospectrum
• Cache-oblivious, using Frens,Wise,03

90
Implicit Repeated Squaring
for each j,
91
Sparse Linear Algebra

• Thm (George 73, Hoffman/Martin/Rose 73,
  Eisenstat/ Schultz/Sherman 76 ) Cholesky on an
  ns x ns sparse matrix whose graph is an
  s-dimensional nearest neighbor grid does ?(
  n3(s-1) ) flops attainable by nested dissection
  ordering
• Proof most work in dense Cholesky on final
  submatrix of size ?(ns-1)
• Corollary BDHS09,G09 Sequential Sparse
  Cholesky on such a matrix moves ?( n3(s-1) /
  M1/2 ) words, and Parallel Sparse Cholesky moves
  ?( n2(s-1) / (P log n )1/2 ) words on P procs

• Assumes 2D parallel algorithm, i.e. minimal
  memory
• Thm G09. Attainable in parallel case by nested
  dissection, eg with PSPASES.

92
Avoiding Communication in Iterative Linear Algebra

• k-steps of typical iterative solver for sparse
  Axb or Ax?x
• Does k SpMVs with starting vector (eg with b, if
  solving Axb)
• Finds best solution among all linear
  combinations of these k1 vectors
• Many such Krylov Subspace Methods
• Conjugate Gradients, GMRES, Lanczos, Arnoldi,
• Goal minimize communication in Krylov Subspace
  Methods
• Assume matrix well-partitioned, with modest
  surface-to-volume ratio
• Parallel implementation
• Conventional O(k log p) messages, because k
  calls to SpMV
• New O(log p) messages - optimal
• Serial implementation
• Conventional O(k) moves of data from slow to
  fast memory
• New O(1) moves of data optimal
• Lots of speed up possible (modeled and measured)
• Price some redundant computation

93
Locally Dependent Entries for x,Ax, A
tridiagonal, 2 processors
Proc 1
Proc 2
Can be computed without communication
94
Locally Dependent Entries for x,Ax,A2x, A
tridiagonal, 2 processors
Proc 1
Proc 2
Can be computed without communication
95
Locally Dependent Entries for x,Ax,,A3x, A
tridiagonal, 2 processors
Proc 1
Proc 2
Can be computed without communication
96
Locally Dependent Entries for x,Ax,,A4x, A
tridiagonal, 2 processors
Proc 1
Proc 2
Can be computed without communication
97
Locally Dependent Entries for x,Ax,,A8x, A
tridiagonal, 2 processors
Proc 1
Proc 2
Can be computed without communication k8 fold
reuse of A
98
Remotely Dependent Entries for x,Ax,,A8x, A
tridiagonal, 2 processors
Proc 1
Proc 2
One message to get data needed to compute
remotely dependent entries, not k8 Minimizes
number of messages latency cost Price
redundant work ? surface/volume ratio
99
Remotely Dependent Entries for x,Ax,A2x,A3x, A
irregular, multiple processors
100
Sequential x,Ax,,A4x, with memory hierarchy
v
One read of matrix from slow memory, not
k4 Minimizes words moved bandwidth cost No
redundant work
101
Performance results on 8-Core Clovertown
