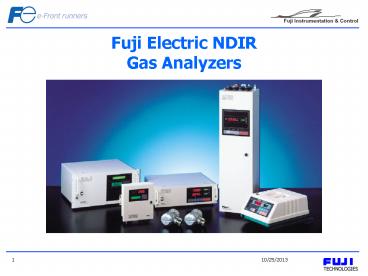

Fuji Electric NDIR Gas Analyzers

1
Fuji Electric NDIR Gas Analyzers
2
Introduction
Fuji Electrics NDIR (Non-Dispersion Infrared
Ray) gas analyzers have been widely used in many
applications. The dual beam infrared gas
analyzer models ZRF ZRG can be incorporated
with a zirconia oxygen sensor to measure oxygen.
And with an internal microprocessor increases
functionality, improves operationally and easy
maintenance. And single beam infrared gas
analyzer model ZRH which has simple structure,
economical and easy maintenance has added joy to
the family.
3
Contents

1. Why use infrared analyzer for emission
   monitoring?
2. Whats unique about Fujis gas analyzer?
3. How reliable is Fujis gas analyzer?

4
I) Why use infrared analyzer for emission
monitoring?
Total production of SO2 NOx analyzers in
Japan in 1997 that is approved by JQA are 917
sets.
JQA Japanese Quality Assurance
Organization NDIR Non-Dispersion
Infrared CLD Chemi-Luminescence Detector UV
Ultra-Violet
5
I) Why use infrared analyzer for emission
monitoring?

• Both SO2 and NOx can be measured
• Easy maintenance
• Most cost effective
• CLD
• Expensive
• Difficult maintenance
• UV
• Expensive
• Short life (Light source approximately 6 months)

6
II) What is unique about Fujis gas analyzers?

• Various products line-up
• ZRH CO, CO2, CH4 SO2
• Simple Structure Minimum Maintenance
• ZRF CO, CO2, NOx, SO2 CH4 ( O2)
• High Performance 19 Rack Mounting
• ZRG CO, CO2, NOx, SO2 CH4 ( O2)
• High Performance Wide Range, (CO 0-2ppm)
• ZFP9 CO2 Controller
• Simple Air Monitoring

7
II) What is unique about Fujis gas analyzers?
NDIR Non-Dispersion Infrared Ray Gases have
different kind of infrared absorption and by
utilizing the wavelength corresponds to the
waveband, we are able to determine the amount
infrared ray being absorbed by the gases and we
are able to tell the concentration. Internal
pressure in the left detector will be higher than
one in the right detector. And by blocking the
ray, the pressure in both detectors will be
equalized the changing volume of absorbing
infrared ray is detected.
8
II) What is unique about Fujis gas analyzers?

• 1) Mass Flow Sensor Offers
• Excellent Linearity 1 FS
• High Rangeability 20 to 1
• Against Condenser Microphone (10 to 1)
• Less Effect By Vibration
• No Moving Mechanical Parts

9
II) What is unique about Fujis gas analyzers?
Mass Flow Sensor Condenser Microphone
Basic Principle Resistance Measurement (Detecting temperature by pressure change) Basic Principle Capacitance Measurement (Detecting pressure change)
No moving parts High sensitivity sensor introduces good linearity Gas impurities in detector which will result interference can be removed by making full vacuum condition Mechanical moving parts Low sensitivity sensor introduces poor linearity Gas impurities in detector which will result interference cannot be removed as full vacuum condition are not possible
10
II) What is unique about Fujis gas analyzers?
2) Single light source provides- Long Term
Stability 0.5 to 2 FS/week (Other
suppliers show the stability for one day only)
Against dual light source ? Both sources
cannot be exactly same ? It creates error in
measurement
Our test data of span drift for 28 days Less
than 1FS (97.1ppm SO2/N2)
11
II) What is unique about Fujis gas analyzers?
Butterfly wing sector

• 3) Single Point Chopper
• with Fujis peculiar rotary sector provides
• Repeatability 0.2 to 0.5 FS
• because of excellent S/N ratio against
  conventional
• double point chopper

12
II) What is unique about Fujis gas analyzers?

• 4) Interference Compensating Detector Eliminates
• Interference of Moisture
• Cross sensitivity to moisture Less than 2 ppm

• at 2? of saturated H2O
• ? Twin detector (Main detector IC Detector)
• result in excellent compensation.

Interference of moisture CO2 for NO measurement
13
II) What is unique about Fujis gas analyzers?
5) Wide Measuring Range ? MinimumMaximum
Range CO 0-50 ppm100 (0-2 to
10ppm By Sample Switching Type) CO2 0-5
ppm100 NO 0-20 ppm4000 ppm SO2 0-50
ppm10 CH4 0-200 ppm100
14
II) What is unique about Fujis gas analyzers?
6) Various Functions Standard 1) Self
Diagnostic 2) Holding Output Optional
Functions 1) Automatic Calibration in hour,
day or week 2) Alarm Output 3) Remote
Range Change 4) O2 Correction
x NOx or SO2 or CO 5) Average Value
Output (In 1 or 4 hours)
15
III) How reliable is Fujis gas analyzers?

• 1) Long experience since 1952
• 10,000 installations as system
• 2) Many references for different industries
• Iron Steel (700 sets), Incinerator (4,000
  sets),
• Power Station (3,000 sets) Others.
• 3) Accepted by major consultants EPC
• MHI ?Chiyoda
• KHI ?JGC
• IHI ?Toyo Engineering
• SHI ?Ebara
• Mitsui Ship Building

16
III) How reliable is Fujis gas analyzers?

• 4) Approved OEM suppliers with brand of
• YOKOGAWA ELECTRIC (Japan)
• More than 200 sets per annum
• CALIFORNIA ANALYTICAL INSTRUMENTS (USA)
• More than 200 sets per annum
• SIGNAL (U.K.)
• More than 20 sets per annum
• SIEMENS (Holland)
• More than 300 sets per annum

17
III) How reliable is Fujis gas analyzers?
Manufacturer Model No. Fuji ZRF Siemens Ultramat 5 H B URAS 10E Horiba VIA 510 RMT 880
Measuring Method Single Source Dual Beam Single Source Dual Beam Single Source Dual Beam Dual Source Dual Beam Dual Source Dual Beam
Detector Mass Flow Sensor Mass Flow Sensor Condenser Microphone Condenser Microphone Condenser Microphone
Component(s) 1 to 2 1 to 2 1 to 4 1 1
Measuring Range CO 0-100ppm CO 0-10ppm CO2 0-50ppm SO2 0-100ppm NO 0-100ppm CH4 0-500ppm CO 0-20ppm CO2 0-50ppm SO2 0-50ppm NO 0-100ppm CH4 0-50ppm CO 0-200ppm CO2 0-100ppm NO 0-2000ppm CH4 0-500ppm CO 0-100ppm CO2 0-100ppm SO2 0-100ppm NO 0-100ppm CH4 0-100ppm CO 0-100ppm CO20-50ppm SO2 0-200ppm NO 0-100ppm CH4 0-5
Range 2 4 2 4 3
Range Ratio 1 20 1 10 1 5 1 10 1 10
Repeatability 0.5 FS 0.5 FS 0.5 FS 1.0 FS 1.0 FS
Linearity 1.0 FS 1.0 FS 2.0 FS
Stability Zero 0.5 FS/week 0.11.0 FS/week 1.0 FS/day 1.0 FS/day 1.0 FS/day
Stability Span 0.5 FS/week 0.11.0 FS/week 1.0 FS/day 1.0 FS/day 1.0 FS/day
18
III) How reliable is Fujis gas analyzers?
Manufacturer Model No. Fuji ZRF Siemens Ultramat 5 H B URAS 10E Horiba VIA 510 RMT 880
Response Time 2 40s 1 100s 1 15s 10s 0.5 20s
Flow Rate 0.5L/min 1L/min 0.5 2L/min 0.3 1L/min 0.3 7L/min 0.5L/min 0.5 2L/min
Display 4 digits, LED 4½ Digits, LED LCD Indicator LCD
Output Signal 0 to 1Vdc or 4 to 20mA DC 0 to 20mA DC or 4 to 20mA DC 0 to 20mA DC 0 to 1Vdc 0 to 1/10Vdc or 4 to20mA DC
Power Supply 110, 115 or 220 Vac, 125VA 110, 115 or 220 Vac, 50W 115 or 230 Vac, 55VA 110Vac, 300 VA 115 or 230, 150W
Ambient Temperature - 5 to 45 C 0 to 45 C 5 to 45 C 0 to 40 C 0 to 45 C
Dimension (W x H x D) 483 x 220 x 263 483 x 110 x 408 483 x 132 x 431 430 x 900 x 240 483 x 221 x 483
Weight 20kg 18kg 10kg 15kg 25kg
Optional Function Auto Calibration, Alarm, Remote Range, Range ID, O2 Correction Average Output Auto Calibration, Alarm RS232C Auto Calibration, Alarm RS232C - Auto Calibration, Alarm, Remote Range Range ID
19
III) How reliable is Fujis gas analyzers?
Fujis Gas Analyzer System ZSU Infrared Gas
Analyzer Stack Gas NOx, SO2, CO, CO2 O2
20
III) How reliable is Fujis gas analyzers?
Fujis Gas Analyzer System ZSQ CO O2 Gas
Analyzer for Incinerator
21
III) How reliable is Fujis gas analyzers?
Gas Sampling System Example 01
22
III) How reliable is Fujis gas analyzers?
Gas Sampling System Example 02
23
III) How reliable is Fujis gas analyzers?
Gas Sampling System Example 03
24
III) How reliable is Fujis gas analyzers?
Gas Sampling System Example 04
25
III) How reliable is Fujis gas analyzers?
Gas Sampling System Example 05
26
III) How reliable is Fujis gas analyzers?
Gas Sampling System Example 06
27
III) How reliable is Fujis gas analyzers?
Gas Sampling System Example 07
28
III) How reliable is Fujis gas analyzers?
ISO 9001 certification already obtained
Registration Certificate No. JQA-2275
29
III) How reliable is Fujis gas analyzers?
ISO 14001 certification already obtained
Registration Certificate No. JQA-EM2492
30
III) How reliable is Fujis gas analyzers?
31
The End
