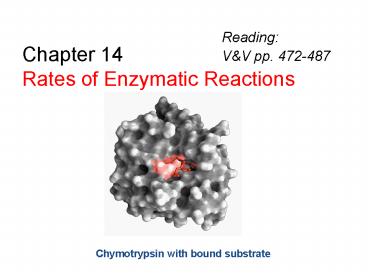

Chapter 14 Rates of Enzymatic Reactions

1
Chapter 14Rates of Enzymatic Reactions

• Reading
• VV pp. 472-487

Chymotrypsin with bound substrate
2
Enzyme Kinetics

• Enzymes accelerate reactions by lowering the free
  energy of activation
• Enzymes do this by binding the transition state
  of the reaction better than the substrate

• Several terms to know
• rate or velocity
• rate constant
• rate law
• order of a reaction
• molecularity of a reaction

3
The Michaelis-Menten Equation

• Louis Michaelis and Maude Menten's theory
• It assumes the formation of an enzyme-substrate
  complex
• It assumes that the ES complex is in rapid
  equilibrium with free enzyme
• Breakdown of ES to form products is assumed to be
  slower than
• (1) formation of ES and
• (2) breakdown of ES to re-form E and S

4
The dual nature of the Michaelis-Menten equation

• Combination of zero-order and 1st-order kinetics

5
k2
(k-2 is insignificant early in rxn)
Vo k2 ES
Rate of ES formation k1 ES k1
(Etotal - ES) S Rate of ES breakdown
k-1 ES k2 ES k1 (Etotal - ES) S
k-1 ES k2 ES (steady state assumption)
6
(No Transcript)
7
The dual nature of the Michaelis-Menten equation

• Combination of zero-order and first-order
  kinetics
• When S is low, the equation for rate is first
  order in S
• When S is high, the equation for rate is
  zero-order in S
• The Michaelis-Menten equation describes a
  rectangular hyperbolic dependence of Vo on S

8
Enzyme Kinetics Michaelis-Menton Equation
VmaxS Vo ____________
KM S


KM S when Vo Vmax
_____
2
From Lehninger Principles of Biochemistry
9
The following data were obtained in a study of an
enzyme known to follow Michaelis Menten
kinetics V0 Substrate
added (mmol/min) (mmol/L)
216 0.9
323 2
435 4 489 6 647
2,000 Calculate the Km for
this enzyme.
Km is the substrate concentration that
corresponds to Vmax
2
Without graphing Vmax 647 Vmax /2 647 / 2
323.5 Km 2 mmol/L
10
(No Transcript)
11
Understanding Km

• Km is a constant
• Km is a constant derived from rate constants
• Km is, under true Michaelis-Menten conditions, an
  estimate of the dissociation constant of E from S

• Small Km means tight binding high Km means weak
  binding

Enzyme Substrate Km (mM) Glutamate
dehydrogenase NH4 57 Glutamate 0.12 Carbo
nic anhydrase CO2 12
12
Understanding Vmax

• The theoretical maximal velocity
• Vmax is a constant
• Vmax is the theoretical maximal rate of the
  reaction - but it is NEVER achieved in reality
• To reach Vmax would require that ALL enzyme
  molecules are tightly bound with substrate
• Vmax is asymptotically approached as substrate
  is increased

13
The turnover number (also known as the molecular
activity of the enzyme)

• A measure of its maximal catalytic activity
• kcat, the turnover number, is the number of
  substrate molecules converted to product per
  enzyme molecule per unit of time, when E is
  saturated with substrate.
• If the M-M model fits, k2 kcat
• kcat Vmax/Et
• Values of kcat range from less than 1/sec to many
  millions per sec
• Turnover number comparison
• Catalase 40,000,000 sec-1
• Lysozyme 0.5 sec-1

14
Catalytic efficiency of an enzyme

• Name for kcat/Km
• An estimate of "how perfect" the enzyme is
• kcat/Km is an apparent second-order rate constant

• It measures how the enzyme performs when S is low

• Catalytic efficiency cannot exceed the diffusion
  limit - the rate at which E and S diffuse
  together
• WT and a mutant protein kcat/Km comparision
• WT sulfite oxidase 1.1
• Mutant R160K 0.015

15
(No Transcript)
16
Use linear plot and intercepts to determine Km
and Vmax
1 KM 1 ______
_______ ______ Vo VmaxS
Vmax
Double-Reciprocal or Lineweaver-Burk Plot
From Lehninger Principles of Biochemistry
17
pH must be specified!
18
Enzyme Inhibitors

• Reversible versus Irreversible
• Reversible inhibitors interact with an enzyme via
  noncovalent associations
• Irreversible inhibitors interact with an enzyme
  via covalent associations

19
Classes of Inhibition

• Two real, one hypothetical
• Competitive inhibition - inhibitor (I) binds only
  to E, not to ES
• Uncompetitive inhibition - inhibitor (I) binds
  only to ES, not to E. This is a hypothetical case
  that has never been documented for a real enzyme,
  but which makes a useful contrast to competitive
  inhibition
• Noncompetitive (mixed) inhibition - inhibitor (I)
  binds to E and to ES

20
Inhibitor (I) binds only to E, not to ES
Inhibitor (I) binds only to ES, not to E. This
is a hypothetical case that has never been
documented for a real enzyme, but which makes a
useful contrast to competitive inhibition
Enzyme Inhibition
Inhibitor (I) binds to E and to ES.
From Lehninger Principles of Biochemistry
21
Competitive Uncompetitive
Noncompetitive Inhibition
Inhibition (Mixed) Inhibition
Kmchanges while Vmax does not
Km and Vmax both change
Km and Vmax both change
From Lehninger Principles of Biochemistry
22
Succinate dehydrogenase is a classic example of
competitive inhibition
Malonate is a strong competitive inhibitor of
succinate dehydrogenase
From Lehninger Principles of Biochemistry
23
Competitive Inhibition
Kmchanges while Vmax does not
1/S
I
1/V
No I
-1 / Km
-1 / Kmapp
Where Kmapp a Km
a 1 I KI
24
Uncompetitive inhibition
1/S
I
a/Vmax
1/V
No I
-a / Km
1/Vmax
-1 / Km
a 1 I KI
25
Effects of Inhibitors on the parameters of
Michaelis-Menten Equation
Type of inhibition Vmaxapp KMapp No
inhibitor Vmax KM Competitive Vmax aKM U
ncompetitive Vmax/a KM/a Noncompetitive
(Mixed) Vmax/a aKM/a a 1 I a
1 I KI KI
26

• Regulation of enzymatic activity
• Two ways that this may occur
• Control of enzyme availability
• Depends on rate of enzyme synthesis
  degradation
• Control of enzyme activity
• Enzyme-substrate binding affinity may vary
  with binding of small molecules called allosteric
  effectors (ex BPG for Hb)
• Allosteric mechanisms can cause large changes
  in enzymatic activity

27
Regulatory Enzymes important in controlling
flux through metabolic pathways
From Lehninger Principles of Biochemistry
28
Regulation by Feedback Inhibition
Conversion of L-threonine to L-isoleucine
catalyzed by a sequence five enzymes,
E1-E5 L-isoleucine is an inhibitory allosteric
modulator of E1
From Lehninger Principles of Biochemistry
