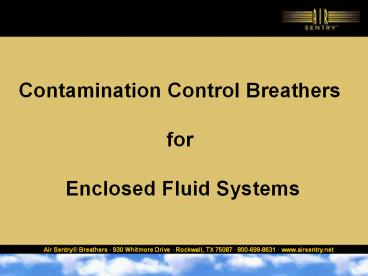

Contamination Control Breathers for Enclosed
Fluid Systems
Air Sentry Breathers 930 Whitmore Drive
Rockwall, TX 75087 800-699-8631
www.airsentry.net
2
The Standard for Breather Excellence
3
The Problem
Harmful Contaminants
Component Wear
Fluid Degradation
Equipment Failure
Rust and Oxidation
4
Without Air Sentry

• Condensation
• Rust
• Oxidation
• Particulates
• Sludge
• Corrosion

5
The Solution
Remove Water Vapor
Remove Fumes and Odors
Improve Performance
Reduce Maintenance
Filter Particulates
6
The Design...
Bi-Directional Airflow
Durable Construction
Triple Filter System
Color Indicator
Safety Sealed
Click Image to See Animation
7
The Results
Longer Fluid Life
Reduced Contaminants
Longer Service Life
Reduced Downtime
8
Air Sentry D-Series Breathers
Air Sentry D-Series Breathers are designed for
most hydraulic tanks, reservoirs, transformers
and gearboxes. They easily replace standard
breather caps or vent systems.
Model Height (in) Diameter (in)
D-100 3.5 5
D-101 5 5
D-102 8 5
D-108 10 5
D-109 14 6
Model D-102
9
D-108 D-109
The Airflow Workhorses of the Air Sentry line,
the D-108 and D-109 Breathers are designed for
applications with airflow requirements of up to
250 cfm (equivalent of 1875 gallons per minute of
fluid volume change).
Model Height (in) Diameter (in) Thread Size
D-108 10 5 2 MNPT
D-109 14 6 3 MNPT
10
Z-Series Mini Breathers
The Mini Breather line was designed for
applications where space is limited, or airflow
is minimal (10 cfm or less). Applications
include gearboxes and small hydraulic reservoirs.
Model Height (in) Diameter (in)
Z-131 2 2
Z-132 3.25 2
Z-133 2 3.25
Z-134 3.25 3.25
11
Steel Breathers (M-Series)
Steel Breathers were designed for the most severe
environments and are made of heavy duty
industrial materials. The breathers are
rechargeable the silica gel bag filter is
replaced by removing the hood. The 2-micron
particle filter can be washed and reused.
Model Height(in) Diameter(in) Thread Size
M-103 4.3 10.3 1 MNPT
M-104 4.3 10.3 2 MNPT
M-105 9.8 10.3 1 MNPT
M-106 9.8 10.3 2 MNPT
M-107 10.6 16.1 3 MNPT
M-107
12
R-Series Breathers
R-Series breathers were designed to withstand
continuous vibration on railroad equipment.
Since their introduction, they have gained
acceptance in other industries where vibration is
a concern.
Model Height (in) Diameter (in) Thread Size
R-100 5 5 1 MNPT
R-101 6.5 5 1 MNPT
R-102 9.5 5 1 MNPT
R-111 5.5 5 1 1/8-16 Female
R-123 12 5 2 MNPT
Model R-102
13
X-Series Breathers
The X-Series Breather line was designed for
extreme humidity. Ideal environments include
paper mills, or anywhere that humid air is a
problem.
Model Height (in) Diameter (in) Thread Size
X-100 6 3 1/2 FNPT
X-101 5 5 1 Slip
X-102 8 5 1 Slip
X-121 5 5 2 MNPT
X-122 8 5 2 MNPT
Model X-102
14
Typical Industries Applications

• Aluminum Extrusion, Forging Rolling Mills
• Hydraulic Systems
• Gear Reducers
• Storage tanks
• Appliance Manufacturing
• Hydraulic Presses
• Gear Reducers
• Air Systems
• Robotics

• Aerospace
• Vacuum Systems
• Air exchange and control systems
• Chemical Petrochemical
• Process systems
• Lube Oil degassing and conditioning
• Turbines
• Storage Tanks
• Gear Reducers
• Transport Tanks

15
Typical Industries Applications

• Pulp Paper
• Gear reducers
• Hydraulic systems
• Turbine Oil systems
• Calander stack bearing oil systems
• Steel Mills Foundries
• Hydraulic systems
• Gear Reducers
• Rolling Oil systems
• Storage tanks

16
Examples
Air Sentry Breather on an Industrial Pump
17
Examples
Drag Case
Propel Gearboxes
Swing Gearboxes
Hoist Case
Air Sentry Breather on Draglines and Cranes
18
Examples
Hydraulic Reservoirs
Air Sentry Breather on Railroad Maintenance of
Way Equipment
19
Examples
Air Sentry Breather Lubricant Drum
20
Examples
Air Sentry Breather on a Compressor Intake
21
Examples
Air Sentry Breathers Used on Reservoirs Outside
at a Refinery
22
Examples
Air Sentry Breathers on Distribution Transformers
23
Examples
Air Sentry Breather Venting 8 Lubrication Drums
24
1999 Product of the Year Finalist
Air Sentry Z-Series Contamination Control
Breathers
25
2003 Product of the Year Finalist
Air Sentry X-Series Contamination Control
Breathers
26
Seventy-five percent
of all hydraulic system failures are caused by
contaminated fluid. Most of these contaminants
enter the fluid through the standard breather
cap.

• Keep dirt and moisture OUT of your fluids.
• Extend your fluid life.
• Reduce your maintenance costs.

27
Air Sentry Contamination Control Breathers
A Complete Family of Products for every
Application
The Cost of Contamination Control is Always Less
than the Cost of Repair
