Historical Geology

1

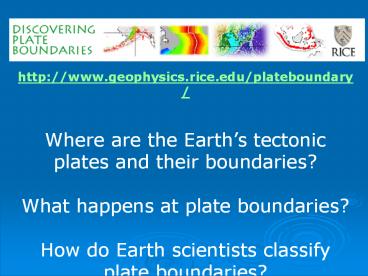

http//www.geophysics.rice.edu/plateboundary/ Wh
ere are the Earths tectonic plates and their
boundaries? What happens at plate
boundaries? How do Earth scientists classify
plate boundaries?
2
Part 1.

• Identify the patterns of your area of expertise
  volcanology, seismology, geography, geochronology
  - AT PLATE BOUNDARIES
• Describe what you observe do not interpret what
  you see, just describe the patterns
• Use descriptive terms Wide or narrow, straight
  or curved, symmetric or not symmetric, deep or
  shallow, ridge or valley, active or inactive
• Identify 3-5 boundary types color each on your
  transparency define in words

3
Part 2.

• Bring together areas of expertise volcanology,
  seismology, geography, geochronology
• Correlate your data sets what collective
  patterns emerge?
• Identify 3-5 boundary types color each on a
  master transparency define in words

• 10 min
• 10 min

4
Part 3.

• Describe the different types of boundaries
• What patterns were related in the different data
  sets?

5

• What skills did you use in undertaking this
  activity?
• Historical use
• How might you use it in your classroom?
• What might you modify?

6
Plate BoundariesWhere Stuff Happens
7
Plate Tectonics Theory

• The upper mechanical layer of Earth (lithosphere)
  is divided into rigid plates that move away,
  toward, and along each other
• Most (!) geologic action occurs at plate
  boundaries in DISTINCT patterns

8
Compositional Crust - 2 Mantle Core
Physical / Mechanical Lithosphere Asthenosphere Me
sosphere
9
Crust(Compositional)

• Two types of crust
• Continental
• 30 of crust
• Granites and Diorites - rich in silicates and
  feldspars (lighter materials)
• 40 Km thick
• Oldest is 3.8 billion years (90 solar system
  age missing 700 m.y.)
• 4.4 billion year old zircons in Western Australia
• Oceanic crust
• Basalt - Mg, Fe (heavier materials - relatively)
• 5-10 Km thick
• 200 Ma oldest 100 Ma average
• Ophiolites

10
Lithosphere / Asthenosphere(Mechanical)

• Lithosphere
• PLATES in Plate Tectonics
• Upper 200 km
• Crust and upper mantle
• Rigid
• Asthenosphere
• 200 km to 700 Km
• Upper mantle
• Hi temperatures / high pressure little strength
  ductile / plastic - NOT A LIQUID!
• Plates moving on this
• Magma generation
• Mesosphere
• Also hot strong due to pressure

11
3 Basic Boundary Interactions 5 to 6 Basic
Boundary Types
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
1. Divergent Boundaries

• Volcanic activity in fissures, some volcanos
• Shallow earthquakes, on plate boundary
• Young crust, symmetrical around boundary
• Ridge
• Rocks?

Mid- Atlantic Ridge
North American Plate
Eurasian Plate
17
(No Transcript)
18
Nazca Plate
South American Plate
Antarctic Plate
19
(No Transcript)
20
Andes Mountains
21
(No Transcript)
22
2. Convergent Boundaries (a) Ocean-continent
convergence

• Volcanos tight, parallel boundary, landward
• Shallow to deep earthquakes
• Age varies on one side of the boundary not
  symmetrical
• Trench, mountain chain
• Rocks?

Andes Mountains
Peru-Chile Trench
South American Plate
Nazca Plate
23
Foreshadowing Many on Earth Relatively small
but mighty
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
2. Convergent Boundaries (b) Ocean-ocean
convergence

• Volcanos tightly spaced, parallel boundary, arc
• Shallow to deep earthquakes
• Age varies on one side of the boundary not
  symmetrical
• Trench, volcanic island chain
• Rocks?

Mariana Islands
Marianas Trench
Philippine Plate
Pacific Plate
29
(No Transcript)
30
Eurasian Plate
Indian Plate
31
Himalaya Mountains
32
Tibetan Plateau
Mt. Everest
Himalayan Mtns.
33
2. Convergent Boundaries (c) Continent-continent
convergence

• Volcanos rare, dispersed
• Shallow (to medium) dispersed earthquakes
• No age data
• High mountain chain
• Rocks?

Himalayan Mountains
Tibetan Plateau
Indian-Australian Plate
Eurasian Plate
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
3. Transform-Fault Boundaries

• Volcanos dispersed, most on one side
• Earthquakes complex, shallow (to medium) on both
  sides
• Age data not symmetrical, one side of boundary
• Complex topography, wide mountains and basins
• Rocks?

Pacific Plate
North American Plate
38
Plate Tectonics

• The upper mechanical layer of Earth (lithosphere)
  is divided into rigid plates that move away,
  toward, and along each other
• Most (!) geologic action occurs at plate
  boundaries in DISTINCT patterns

39
Whats Driving Plate Tectonics on Earth?
40
Mantle

• 85 volume of Earth
• Density - 3.3 - 5.5 g/cm3
• Probably material such as Peridotite (lots of
  heavy olivine - Fe, Mg)
• Solid high pressure ? slow, creeping, viscous
  movement - convection
• Samples from kimberlites, xenoliths in volcanic
  eruptions, basalt composition lab experiments

41
Core

• 15 of Earths volume / half of diameter of
  Earth
• Outer core
• Molten
• Density of pure iron or nickel/iron 2x density
  of mantle
• Convection Earths magnetic field
• Inner core
• Solid (very hot, but higher pressure than outer
  core)
• Density of nickel/iron (13 g/cm3)
• Conducts heat - cooling
• Size of Moon (70 of Moon)

42
Earths Magnetic Field

• Magnetic dipole a bar magnet tilted 11 degrees
• Generated by eddies in the conductive liquid of
  the outer core currents create magnetic fields
• Changes over time north magnetic pole wanders,
  north and south reverse
• Rather important to life really important to
  geology

43
(No Transcript)
44
Whats Driving Plate Tectonics on Earth?
45
(No Transcript)
46
How Did Earth (and other planets) Get Layers?
