A Validation Methodology for Graphics Processors

1

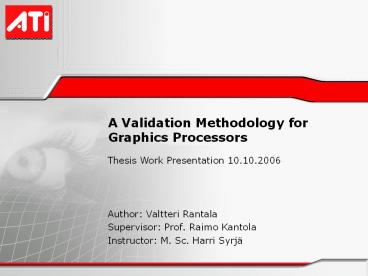

A Validation Methodology for Graphics Processors
Thesis Work Presentation 10.10.2006

• Author Valtteri Rantala
• Supervisor Prof. Raimo Kantola
• Instructor M. Sc. Harri Syrjä

2
Content

• Background
• Objectives methodology
• Graphics processors design process
• Validation in general
• Validation methodology
• Validation of the Vector Graphics unit
• Conclusions
• Future study

3
Background

• ATI technologies Finland (formerly Bitboys oy)
  designs IP cores for mobile devices
• Quality is extremely important in processor
  design
• Errors are extremely costly to repair after the
  design is implemented in silicon
• Customer dissatisfaction
• Company saw it necessary to reinforce the quality
  process
• Validation was a part of the quality assurance
  that needed improvement

4
Objectives methodology

• Objectives
• To develop the validation process for graphic
  processors
• To specify documentation for the validation
  process
• To find suitable testing techniques to be used in
  the validation process
• Scope
• Only validation aspect of quality assurance is
  inspected
• Only validation of one unit is inspected in the
  thesis
• Individual test cases are not introduced
• Methodology
• Literature survey
• Discussion with experts

5
Graphics processors design process

• Graphics processors
• Used to accelerate the calculation tasks in
  different stages of the 3D pipeline
• Specialised in calculating computer graphics
  algorithms
• Contains a set of arithmetic units that are
  design for specific tasks
• The structure of the graphics processors is based
  on the use of units

Direct-X 3D-pipeline
Illustrative structure of a graphics processor
6
Graphics processors design process

• Design process for graphics processors
• Graphics processor roadmap definition
• Defines what kind of products are to be developed
• Core specification
• Feature set, architecture, size, performance,
  quality requirements
• Unit specifications
• Usage and operational details
• Validation
• TLM Transaction Level Model
• Verification
• The models are verified against each other and in
  some cases against the specifications
• RTL Register Transfer Layer

Design flow of a graphics processor
7
Validation in general

• Validation is a part of the quality assurance
• The goal of the validation is to discover defects
  as early as possible
• Validation is defined as The process of
  evaluating a system or component during or at the
  end of the development process to determine
  whether it satisfies specified requirements(IEEE1
  012)
• Consists of analysis, evaluation, review,
  inspection and testing of products
• Different validation approaches
• Walk-through
• Formal methods
• Test development
• Prototyping

8
Validation methodology

• Validation process was proposed
• The validation process is divided into five
  different phases
• Product Validation Plan
• Unit Validation Plan
• Test Case Design and Procedures
• Validation Report
• Validation Feedback
• Validation sub process is executed for each unit
• Each phase has input and outputs documents
• Each phase has specific tasks

9
Validation methodology

• Product Validation Plan
• To employ the validation resources efficiently,
  to monitor, to control, and to allow the
  identification of each participants role and
  responsibility
• The purpose of this document is to describe the
  validation program for the product on a high
  level
• Validation Program Management
• Describes the program schedule, milestones and
  goals for each milestone, defect and reporting
  management, and staffing and risk management
• Concept Level Validation
• Describe on a system level what the system must
  be able to do
• Performance, power consumption, acceptance use
  cases and APIs
• Hardware Level Validation
• Describes feature level validation
• Hardware features are introduced on a high-level
  and the overall validation methodology for each
  feature group is described

10
Validation methodology

• Unit Validation Plan
• For every unit
• Describes how the specific unit will be validated
• Contains to tasks feature analysis and
  validation goal analysis
• Feature analysis
• All the features that are to be implemented are
  analysed
• All features must be clear, unambiguous,
  internally consistent and testable
• Priority class is given for each feature
• Validation goal analysis
• features are analysed and the validation goals
  for each feature is presented
• Feature spreadsheet is made
• Target feature, validation items, methodology
  description, number of test cases

11
Validation methodology

• Test Case Design and Procedures
• All testing work is done in this phase
• Test case execution
• Result analysis
• Defect reporting
• Test Case Design Principles
• Test cases should uses the same coding standards
  as product developers
• Only to test a feature
• Size is 128x128 pixels or smaller, RTL is 100 to
  1000 times slower to run than TLM designs.
• Test Execution Framework
• Test environment
• Validation environment

12
Validation methodology

• Test environment
• All test cases are executed in test environment
• Contains three implementations Reference, TLM,
  RTL
• Each implementation generates a bitmap image
• Third party software implementation can be used
  as a reference
• Compiles test cases and executes them in hardware
  models
• Command stream input is used to hold register
  level data, which is used as an input to hardware
  models

13
Validation methodology

• Validation environment
• The fully automated validation environment
• Execute tests
• Compare images from different sources
• Produce a report from executed test cases

Validation environment
Report structure
14
Validation methodology

• Defect Reporting
• Defect reporting system was used (JIRA)
• Centralized location, defect count, reporting,
  issue handling
• The following information should be available for
  each defect
• Defect Id, date of detection, product/project id,
  defect criticality
• Location of the defect (file name, code line if
  possible)
• The version of the file/design/release
• Description of the defect
• Name of the test case showing the defect
• Proper reporting faster fixing times

Defect handling diagram
15
Validation methodology

• Validation Report
• The purpose of this phase is to give a good
  understanding of the current validation status
• Readership is all stakeholders
• Generated weekly basis -gt produces history data
• Validation report contains the following
  information
• Status tracking of various variables
• Test case implementation progress
• Test cases passing rates for different design
  models
• Defect tracking results
• Test case coverage
• The goal is to show that all the features are
  tested
• Code coverage analysis
• Statement coverage is used
• Coverage for each file

16
Validation methodology

• Validation Feedback
• The purpose is to get information about how well
  the process has worked
• The Feedback is analysed and recommendations for
  improving the validation process are done based
  on the feedback
• Collecting Feedback
• From the process results
• Low failure rate/high pass rate, defect density,
  inconsistent results
• To make questionnaires and interview different
  stakeholders
• Change Management
• To have a planned approach to change
  implementation
• Major/minor changes

17
Validation of the Vector Graphics unit

• Validation process was used to validate the
  Vector Graphics unit
• All validation process phases and tasks were
  executed
• The feature analysis revealed a few errors in
  specification documentation
• Test case design based on the unit specification

• The test case principles guide the designing of
  the test cases
• Code coverage analysis revealed unspecified
  features
• Quality issues what is accurate enough?

18
Conclusions

• Importance of the validation was realised
• Written process for the validation of the
  graphics processor with documentation templates
• Predictability of the validation process was
  improved due the validation reporting and proper
  planning
• No major rework was made in the project
• Defects found in TLM after validation dropped
  from 30 -gt 5
• There is now real history data to be used in the
  future projects
• The documented progress increased confidence
  towards the product

19
Future study

• The work for improving the validation process
  will continue after this thesis
• The areas for future work are the areas that
  received most negative feedback
• The use of validation metrics and the use of
  history data must be stressed in future projects
• The quality of test vectors will be stressed in
  future projects

20

• Any questions?

21

• Thank you!
