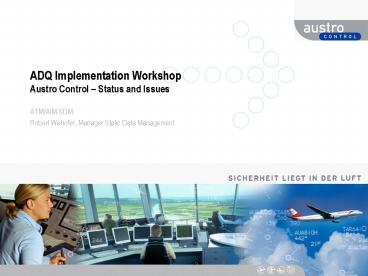

ADQ Implementation Workshop Austro Control

1
ADQ Implementation WorkshopAustro Control
Status and Issues

• ATM/AIM-SDM
• Robert Wehofer, Manager Static Data Management

2
Content

• ADQ Implementation Status at Austro Control
• System adaptation
• Formal arrangement
• AIXM 5.1 a proper origination format?
• Originators vs. ADQ
• Non ADQ addressed originators
• Special case Cloud breaking procedures
• Special case NOTAM

3
ADQ implementation Status at Austro Control
System adaptation

• ACG Project Data quality for static data
• started in 2009
• More digitalisation and automation
• Digital origination formats for external
  originators
• Designer tools for Austro Control originators
• Modern database management system
• Cartography
• AIP production
• Workflow management system for documentation
  (PLX)

4
ADQ implementation Status at Austro Control
Formal arrangement

• ADQ Compliance Checklist
• Generic approach rather than distinct SLAs
• Standard form with concrete ADQ requirements for
  all originators
• All relevant requirements must be checkmarked

5
AIXM 5.1
A proper origination format?

• Many States target AIXM 5.1 as origination format
• Reasons
• Easy to comply with ADQ Article 4 and 5(1)
• Data set specification from Eurocontrol (AIXM
  5.1)
• But ?!?
• How is the acceptance coming from originators?
• Do originators understand the AIXM 5.1
  specification?
• Has anyone of you already seen a full AIP in
  complete AIXM 5.1 format? (incl. GEN part)
• How well do software providers support AIXM 5.1
  to cover the full AIP? (incl. GEN part)

6
AIXM 5.1
A proper origination format?

• AIXM 5.1 data set specification
• is of no use for originator (too technical)
• should be relevant for originators as well
  (Article 4)
• Several GEN chapters are described by a single
  entity RulesProcedures
• What would be the reaction of the originator?
• RulesProcedures. Nice! But which GEN chapters
  should I supply?

7
AIXM 5.1
Austro Control approach

• Austro Control approach
• AIXM 5.1 only used for exchange between ANSPs
• Specific origination formats that fit to
  originators
• For ICAO relevant geographic data
• Simplified XML format based on AIXM 5.1 (version
  independent)
• Excel format (obstacle owners)
• For non geographic data
• Unstructured data formats (Word, PDF)
• Still comply with Article 5(1) and Article 6
• For each originator
• Data product specification with reduced feature
  catalog

8
Originators vs. ADQ
Non ADQ addressed originators

• Discrepancy in ADQ
• Not all IAIP originators are addressed
• But ADQ applies to whole IAIP (exkl. AIC)
• Unclear situation for AISP
• How to ensure ADQ compliance for whole AIP?

9
Originators vs. ADQ
Non ADQ addressed originators

• Two possible approaches
• Article 6(5) AISP shall define specific
  requirements to receive data in sufficient
  quality
• What is sufficient quality?
• If too high Originators dont care
• If too low AISP is liable if something happens
• Article 7(2) AISP annotates not ADQ-compliant
  data
• Paragraph will not be seen only as temporary
  solution
• Austro Control approach
• 1) High quality requested gt 2) Permanent
  annotation

10
Originators vs. ADQ
Special case Cloud breaking procedures

• Two VFR aerodromes in Austria with cloud breaking
  procedures
• 1000 feet above ground and higher IFR procedure
• Lower than1000 feet VFR procedure
• In theory VFR aerodromes with cloud breaking
  procedures are fully addressed by ADQ
• VFR aerodromes with cloud breaking procedures
  have to supply fully ADQ compatible data
• But
• Quality of aerodrome data does not affect IFR
  procedure in any way
• ADQ in this case useless, but significantly high
  costs for ADs

Art. 2(2b) operators of those aerodromes, for
which IFR procedures have been published
11
Originators vs. ADQ
Special case NOTAM

• Conclusion by the European Commission
• But
• ADQ applies to all NOTAM
• Auditors would inspect all NOTAM
• Conclusion should be incorporated in the ADQ!!!
• Not clear When does ADQ inhibit a timely
  distribution of aeronautical information? How to
  measure? Who is responsible for the decision?
• How to deal with temporary obstacles? (e.g. crane
  for 2 days)

NOTAM shall comply with ADQ, if ADQ does not
inhibit the distribution of aeronautical
information necessary to ensure the safety of
flight.
12
Thank you for your attention!Questions
/Discussion
