ARMflo E Series

1

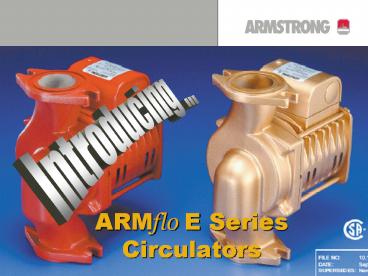

Introducing ...

• ARMflo E Series
• Circulators

2
ARMflo E Series

• Agenda
• What is it? Whats so Special?
• Winning Features
• Proposed Product Line up
• Competitive Cross Reference
• Price point / Positioning
• Sales Support Materials

3
What is it?

• The E Series is a two piece or close-coupled
  circulator
• Dry end (motor) and wet end (volute)
• It is field repairable, so will last a very long
  time, similar to our S H Series 3 piece
  circulators
• The only repair part is the mechanical seal very
  easy replacement procedure - less than 5 minutes!

4
Where Does it Fit?

• New Platform Technology
• The E Series will
• Form the platform for a new range of circulators
• Fit between the A Series and the S H Series in
  terms of flow, head, and price
• Be targeted at specific OEM applications(Boilers,
  Geothermal, Potable Hot Water) and .
• Be aimed at replacing key strategic competitive
  models with strong market position - especially
  BG PL Series and Grundfos UP Series

5
Why Was it Developed?

• E Series is our offering to compete against large
  wet rotors
• Wet rotors gained popularity for being
• Maintenance free (i.e. H2O lubricated, throw
  away)
• Quiet
• Less expensive than 3 piece pumps
• Field repairable (in theory)
• We introduced Astros in the 1990s to handle the
  smaller applications (I.e. up to large
  residential systems), but we wanted a pump with
  greater customer value than wet rotors deliver
• Objective Durability of 3 piece at a price point
  of a wet rotor, using new motor and mechanical
  seal technology

6
Why Was it Developed?

• E Series will become known for being
• Maintenance free (permanently lubricated ball
  bearings)
• Quiet
• Less expensive than 3 piece pumps
• Field repairable (in practice)
• And for having
• The exceptional durability of 3 piece circulator
• The price point of a wet rotor
• And exceptional performance, especially energy
  efficiency

7
A New Name for Hydronic Products

• ARMflo
• ARM strong tie-in with existing ARMSTRONG
  branding
• flo describes the function / application of
  the products
• ARMflo will become the new family name for our
  Hydronics product line

8
ARMflo Brand of Hydronic Products

• Before
• 1050 1060
• SH
• Astro
• Project Gemini
• Hydronic Specialties

Now ARMflo 1050 1060 Series ARMflo S Series,
ARMflo H Series ARMflo A Series ARMflo E Series
ARMflo HydroSpec (coming soon)
9
E
Why

• Series?

10
Winning Features
E

• fficient
• conomical
• nvironmentally friendly
• fficient Use of Space

11
Superior Efficiency - E11

• The competition falls short of the bar ..

41
18
64
Energy Efficiency
12
Superior Efficiency
13
Superior Efficiency - E9

• The competition falls short .. again !

49
74
13
Energy Efficiency
14
Economical

• Installed cost
• E Series circulators are positioned at list
  price and net price points equal to or often
  less than competitive pumps of similar power
• Ongoing energy savings
• For example, over a 10 year period, the operating
  costs for the E11 are up to US182 less in energy
  to operate than Competitive wet rotor A

15
Life Cycle Costs
Calculations based on typical values for a
northern US residential installation ref John
Siegenthaler,PM Magazine, October 2002
16
Economical

• Installed cost
• E Series circulators are positioned at list
  price and net price points equal to or often
  less than competitive pumps of similar power
• Ongoing energy savings
• For example, over a 10 year period, the operating
  costs for the E11 are up to US182 less in energy
  to operate than Competitive wet rotor A
• Reparability savings
• Our mechanical seal is about 20 of the cost of a
  new pump, where competitive after market wet
  rotor cartridge costs almost as much as a new
  pump
• It all adds up!

17
Environmentally Friendly

• When needed, the mechanical seal can be easily,
  quickly, and economically replaced in the field -
  rather than throwing out the old pump
• There are over 1,000,000 circulators sold in
  North America each year - where do the old pumps
  go? Landfills!
• Which is better for the environment - 1,000,000
  circulators in the landfill, or 1,000,000 seals?

18
Efficient Use of Space

• The advanced motor technology used in E Series
  circulators makes them 30 smaller than BGs
  equivalents
• Great for applications where there is limited
  space, such as in radiant heating control panels
  and geothermal heat pump cabinets

30 smaller motor
19
Efficient Use of Space
20
Winning Features
E

• fficient
• conomical
• nvironmentally friendly
• fficient Use of Space
• asy Interchangeability

21
Easy Interchangeability

• Industry Standard Flange-to-Flange Dimensions
• Easy to plug-in the E Series models as
  replacements / upgrades for competitive pumps
  that have failed in service
• Matched Hydraulics
• Impeller and casings have been designed to
  conveniently match existing commercial
  (competitive) circulators
• As a result, the E Series replacement / upgrade
  circulators will deliver essentially the same
  flow rate as the originally installed pump,
  without needing any system modifications

22
E Series Family
23
E Series Family - Launch Dates

• E Series Hydraulic Launch
• Model Target Target
• E11 PL45 Sept 3, 2002
• E10 UP 43-75 Sept 3, 2002
• E9 PL 36, UP 26-116 Feb 14, 2003
• E8 UP 26-99 Feb 14, 2003
• E7 PL 30, UP 26-96 June 15, 2003
• E16 PL 75 June 15, 2003
• E13 PL 50 June 15, 2003
• and more on the drawing board !

24
Easy Interchangeability

• Competitive Cross Reference
• BG Grundfos Taco Armstrong
• PL30 UP26-96 0011 E7
• UP26-99 --- E8
• PL36 UP26-116 --- E9
• UP43-75 0013 E10
• PL45 --- --- E11
• PL50 --- --- E13
• PL75 --- --- E16

25
Competitive Cross Reference
E8
E7
26
Competitive Cross Reference
E10
E9
27
Competitive Cross Reference
E13
E11
28
Competitive Cross Reference
E16
29
E Series Positioning

• Enhanced performance vs. competition esp.
  efficiency(attractive to specifiers)
• Equal to or often lower price than competitive
  pumps
• (attractive to contractors)
• Lower operating costs than competitive pumps
• (attractive to building owners)
• Competitors pumps are most often throw away,
  where ours is economically field-repairable
• Mechanical seal can be replaced in less than 5
  minutes(attractive to contractors and building
  owners)

30
Where to use E Series?

• High Head Installations
• Radiant Heating circuits
• Snow Melting
• Geothermal (Ground Source Heat Pump) heating
• High Flow Installations
• Potable hot water systems (bronze construction)
• Chilled water systems

31
Sales Support - Launch Package

• Intro letter
• Family brochure

32
Sales Support - Launch Package

• Intro letter
• Family brochure
• IO

33
Sales Support - Launch Package

• Intro letter
• Family brochure
• IO, Submittal

34
Sales Support - Launch Package

• Intro letter
• Family brochure
• IO, Submittals
• Ad Slick

35
Sales Support - Launch Package

• Intro letter
• Family brochure
• IO, Submittal
• Ad Slick
• Press Releases
• Pricing / Positioning
• Cutaway models

36
Sales Support - Launch Package

• Intro letter
• Family brochure
• IO, Submittal
• Ad Slick
• Press Releases
• Pricing / Positioning
• Cutaway models
• Photos Line Art

37
Sales Support - Launch Package

• Intro letter
• Family brochure
• IO, Submittal
• Ad Slick
• Press Releases
• Pricing / Positioning
• Cutaway models
• Photos Line Art
• Point of Purchase display brochure

38
E Series Summary

• Great for Contractors
• ? Equal to or slightly lower price than
  competition with significantly lower operating
  costs
• ? Competitors pumps are most often throw away,
  where ARMflo E Series pumps are economically
  field-repairable
• Mechanical seal replaceable in less than 5
  minutes
• Great for Building Owners
• ?Enhanced performance vs. competition esp.
  efficiency

ARMflo E Series A win-win pumping solution!
39
Winning Features
E

• fficient
• conomical
• nvironmentally friendly
• fficient Use of Space
• asy Interchangeability

40
Go with the flo !
