Done By:

1

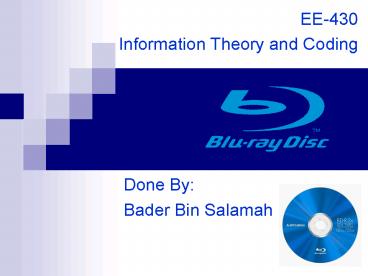

EE-430 Information Theory and Coding

• Done By
• Bader Bin Salamah

2
Outline

• What is Blu-Ray Disk?
• Blu-Ray Disk Capabilities
• Blu-Ray Disk Structure
• Formats Used
• Blu-Ray Disk Types
• Conclusion

3
What is Blu-Ray Disk?

• It is an optical disc storage media format.
• Its main uses are high-definition video and data
  storage.
• The disc has the same dimensions as a standard
  DVD or CD.
• Uses a 405nm blue laser to read/write data.
• Blu-ray Disc was developed by the Blu-ray Disc
  Association.

4
Blu-Ray Disk Capabilities

• HD video recording.
• More recording time for standard video.
• High storage capacity
• 25GB (single layer)
• 50GB (double layer)

5
Blu-Ray Disk Structure
6
Blu-Ray Disk Structure

• Hard Coating
• More pits
• Smaller pit lengths
• Smaller track pitch
• Data on top of poly-layer prevents the
  birefringence problem

7
Formats Used

• There are basically three formats used
• MPEG-2
• MPEG-4 AVC (known as H.264)
• VC-1

8
Blu-Ray Disk Types

• 25GB Type (single layer)
• BD-ROM (read-only) - for pre-recorded content
• BD-R (recordable) - for PC data storage
• BD-RW (rewritable) - for PC data storage
• BD-RE (rewritable) - for HDTV recording
• Mini-BD (7.5 GB) 8cm diameter
• BD9 / BD5 (lower capacity type) - 8152MB BD9,
  4489MB BD5

9
Conclusion

• Big advancement in the disk storage technology.
• Overthrew the HD-DVD technology.
• Possible setback high price discwriter

10

• Ill be happy to answer any questions

Thank you for listening
11
CD Scratches

• Problem
• Scratches make the laser divert and hence you
  cannot read the disk.
• Solution
• Try cleaning it first dirtiness could be the
  cause.
• Repair the disk by applying some solution on the
  surface.
• If nothing works, try to prevent it from being
  scratched in the first place.
