Title: Chapter 3: Soil Mechanics


1
Matakuliah S2094 / Rekayasa Pondasi Tahun
2005 Versi 1.1

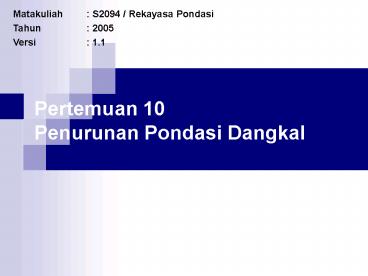

Pertemuan 10Penurunan Pondasi Dangkal
2
Settlement Analysis Based on Laboratory Tests
  • Approach used when good quality undisturbed
    samples can be obtained from soil
  • Perform consolidation test
  • Obtain Cc, Cr , e0, and ?m
  • Perform settlement analysis

3
Two Methods of Analysis
  • Classical Method
  • Based on Terzaghis Theory
  • One dimensional compression
  • Skempton and Bjerrum Method
  • Considers distortion settlement
  • Uses an adjustment factor for 3D compression

4
Classical Method Foundation Rigidity Factor
5
Classical Method
6
Thickness of Soil Sub-layers
7
Settlement PredictionsN.C. Clays
8
Settlement PredictionsO.C. Clays Case I
9
Settlement PredictionsO.C. Clays Case II
10
Skempton Bjerrum Method
  • Settlement,
  • Distortion Settlement (?d)
  • Consolidation Settlement (?c)

11
Distortion Settlement
12
3D Adjustment Factor, ?
13
Influence Factors, I1 and I2
I1
14
I2
15
Example 7.3
16
Example 7.4
17
Settlement Analysis based on In-Situ Tests
  • Techniques for estimating settlements in sands
    are nearly always based on in-situ test results
  • In sands, settlement analysis is not performed
    based on consolidation analysis
  • Instead, we use Equivalent Modulus of Elasticity,
    Es

18
Es from SPT Data (Table 7.4)
19
Es from CPT Data (Table 7.3)
20
(No Transcript)
21
Schmertmanns Method
C1 depth factor C2 Secondary creep factor
C3 Shape factor
22
(No Transcript)
23
Strain Influence Factor
24
Simplified Schmertmann Method
  • When Es is uniform with depth over the depth of
    influence
  • For square/circular footings
  • For continuous footings

25
Settlements in Stratified Soils
  • When the soil profile primarily consists of clays
    and silts use procedures described in Section
    7.4 to estimate settlement
  • For clays/silts use laboratory consolidation
    tests to determine Cc/(1e0) and Cr/(1e0)
  • For sands use Cc/(1e0) or Cr/(1e0) from Table
    3.7

26
Settlements in Stratified Soils
  • When the soil profile primarily consists of sands
    and silts estimate settlement based on
    Schmertmann Method
  • Use in-situ test data to determine Es for sand
  • Use following equation to determine Es for clays

27
Settlements in Stratified Soils
  • Alternative Approach
  • Conduct separate analysis for clays/silts and
    sands
  • Add the computed settlements

28
Differential Settlement
  • Total Settlement, ?
  • Differential Settlement, ?D
  • Rotation, ?

29
Differential Settlement
  • Variations in Soil Profile
  • Variations in Structural Loads
  • Design Controlled by Bearing Capacity
  • Construction Tolerances

30
Computing Differential Settlement
  • Consider best case/worst case scenarios
  • Use ?D/? ratios
  • Clayey Soils. Figure 7.20
  • Sands . Figure 7.21

31
Total and Differential Settlement for Clays
32
Total and Differential Settlement for Sands
33
Design values of ?D/? Ratios
34
Rate of Settlement
  • In saturated soils rate of settlement depends
    largely on how fast the water drains away
  • In Clays rates of settlement are slower than in
    sands
  • Consolidation theory allows you to calculate rate
    of settlement (Chapters 19 and 20)
  • Rate of settlement in sands vary depending upon
    the pattern of loading

35
How Accurate are our Settlement Predictions?
36
Computer Software SCHMERT (schmertmann.xls)
