Title: Portland cement clinker microstructure


1

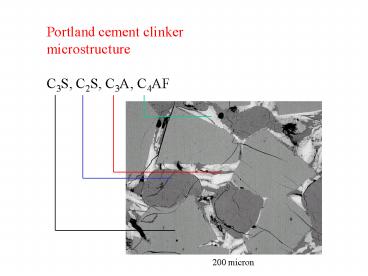

  • Portland cement clinker microstructure
  • C3S, C2S, C3A, C4AF

200 micron
2
Course admin
  • 18 h lectures
  • Course text
  • CALLISTER
  • MATERIALS SCIENCE AND ENGINEERING
  • 5TH EDN, WILEY, 2000
  • Selected chapters 1-16, 18, 20
  • Tutorials from Week 5
  • Tutorial problems from Week 4
  • Supplementary material on web
  • Feedback etc christopher.hall_at_ed.ac.uk
  • vicky.pugsley_at_ed.ac.uk

3
Course admin website
You will find course documents at www.cmse.ed.ac.
uk/MSE3/mse3.html
4
  • Summary
  • To provide a broad introduction to the materials
    used in engineering,
  • their properties and structures
  • Module objectives On completing the module,
    students should
  • Be familiar with
  • the major classes of engineering materials
  • the mechanical, thermal and chemical properties
    of engineering materials,
  • their definition, measurement and specification
  • Be able to locate material property data
  • Understand in qualitative terms the physical
    basis of material structure
  • of the principal engineering properties of
    materials
  • Be familiar with
  • elementary concepts of ferrous metallurgy
  • the concepts of electrochemical corrosion
  • the major polymeric materials and their use as
    solid polymers, coatings,
  • foams and adhesives
  • the main types of ceramics, cements and glasses
    used in engineering

5
Thermal properties cluster
  • Thermal expansivity ?
  • Thermal conductivity ?
  • Specific heat capacity c
  • Melting temperature Tm
  • others??
  • CALLISTER Ch 20 5th edn

6
(No Transcript)
7
Quiz 19 Jan 09
  • What is the melting temperature of iron?

8
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C

9
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?

10
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?
    7 900 kg/m3

11
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?

12
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?
    19 300 kg/m3

13
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?
    19 300 kg/m3
  • What is the density of air?

14
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?
    19 300 kg/m3
  • What is the density of air?
    1.2 kg/m3

15
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the thermal expansivity of brass? 20
    ? 10-6 K-1
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?
    19 300 kg/m3
  • What is the density of air?
    1.2 kg/m3
  • What is the Youngs modulus of steel?

16
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the thermal expansivity of brass? 20
    ? 10-6 K-1
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?
    19 300 kg/m3
  • What is the Youngs modulus of steel?
    200 GPa

17
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?
    19 300 kg/m3
  • What is the density of air?
    1.2 kg/m3
  • What is the Youngs modulus of steel?
    200 GPa
  • What is the thermal expansivity of brass?

18
Quiz 10 Jan 08
  • What is the melting temperature of iron?
    1540 C
  • What is the density of iron?
    7 900 kg/m3
  • What is the density of gold?
    19 300 kg/m3
  • What is the density of air?
    1.2 kg/m3
  • What is the Youngs modulus of steel?
    200 GPa
  • What is the thermal expansivity of brass? 20
    ? 10-6 K-1

19
Iron density
20
Iron density
bcc
912 C
fcc
21
Explosive spalling in concrete under fire
conditions
  • Quartz...
  • Major constituent of granite, quartzite and other
    mineral aggregates used in concrete
  • Alpha-beta quartz transition
  • Displacive structural transition
  • 573 C
  • 2 INCREASE in volume

? ?
See Tucker, Keen and Dove, Min Mag 2001, 65,
489-507
22
Invars
  • Iron-nickel alloys with exceptionally
  • low thermal expansivity
  • ? about 0.4 ? 10-6 / K

23
Quiz 6 Feb 04
  • What is the effect of porosity on
  • thermal expansivity?
  • density?
  • thermal conductivity?
  • elastic modulus?
  • strength?

24
Quiz 6 Feb 04
As
Ap
  • What is the effect of porosity on
  • thermal expansivity?
  • density?
  • thermal conductivity?
  • elastic modulus?
  • strength?

25
  • Density
  • Define volume fraction porosity f
  • f Volume voids/Total volume
  • Bulk density
  • ?b ?s(1 - f )
  • where ?s is solid density

26
  • Density
  • Density relation is a simple example of
  • the Law of Mixtures for material properties
  • Composite material A, B
  • with volume fractions fA, fB
  • Xcom fAXA fBXB

27
Quiz 6 Feb 04
As
Ap
  • What is the effect of porosity on thermal
    expansivity?
  • How does ? vary with f ?
  • ? is independent of f

28
Thermal conductivity
  • Defining equation
  • q ? ? dT?dx
  • where q is the heat flux
  • Units w ?(m K)
  • Typical values and range
  • 1000 --- 0.01 w ?(mK)
  • See for example Ashby charts

29
Thermal conductivity
  • Correlations with other properties
  • speed of sound
  • elastic modulus

30
Thermal conductivity
  • Correlations with other properties
  • For metals
  • electrical conductivity
  • Wiedemann-Franz law
  • ratio of electrical to thermal conductivity
  • is the same for all metals
  • at a given temperature
