Cryogenics scheme with buffer tank

1
(No Transcript)
2

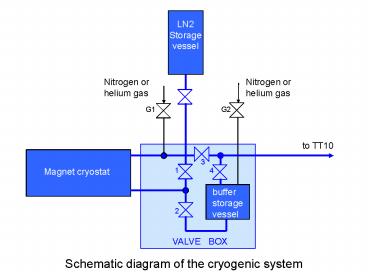

System Operation
Operation Valve 1 Valve 2 Valve 3 Valve 4 Valve 5 Valve G1 Valve G2
Fill (cool) Cryostat from Buffer Vessel Closed Open Open Closed Open Open Closed
Fill Cryostat from LN2 Storage Vessel Open Closed Open Open Open Closed Closed
Empty Cryostat Closed Open Closed Open Open Closed Open
Pre-cool Buffer Vessel or bypass Cryostat Open Open Closed Open Closed Closed Closed
