Title: RoadRailer Air Brake Fault Localization


1

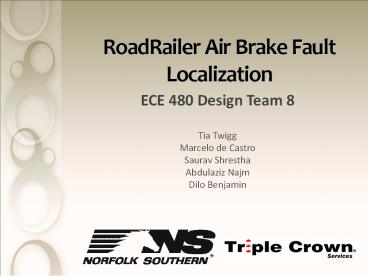

RoadRailer Air Brake Fault Localization
  • ECE 480 Design Team 8
  • Tia Twigg
  • Marcelo de Castro
  • Saurav Shrestha
  • Abdulaziz Najm
  • Dilo Benjamin

2
Introduction
  • RoadRailer system
  • Bi-modal transportation
  • Trailers
  • Bogies
  • Air ride system lifts trailer so bogie can roll
    under it
  • Tires lift to clear rails

3
Introduction
  • Assembling the train
  • Trailers and bogies are connected to form the
    train
  • The glad-hands connect the air brake lines from
    the trailers to the bogies

4
Project Goals
  • Hardware
  • Develop a system to detect leaks or obstructions
    in air brake hoses
  • Software
  • Develop back-end software to compare incoming
    data with established baseline

5
Design Specifications
  • Objectives
  • Air tight hose connector
  • Accuracy within 0.1 psi
  • Transmit and receive signals from multiple
    sensors
  • Display data from all sensors on one screen
  • Constraints
  • Durable and weather proof
  • Independent power source
  • Easy to install, maintain and operate

6
Design Solutions Hardware
Glad-hand rose adaptor
  • Air tight
  • Installed in a non-destructive way into the
    existing system using glad-hands

7
Design Solutions
  • Sensor
  • Independent power source
  • Pressure range 100 psi with 0.1 psi accuracy
  • Operating temperature -40C to 85C
  • Wireless range 1.5 km
  • Base Station
  • Easy to install and operate
  • ZigBee protocols

8
Design Solutions
  • Sensor
  • Pressure range 100 psi with 0.1 psi accuracy
  • Operating temperature
    -20 F to 120 F
  • Independent power source
  • Battery life 2 months
  • Wireless range 1.5km
  • Cost
  • Base Station
  • ZigBee protocols
  • secure data connections
  • Collision avoidance
  • Support for multiple network topologies such as
    mesh networks

9
LOOKING BACK AT PROJECT GOALS
  • Wireless communication between sensors
  • Solution
  • Remote Antenna
  • improve line-of-sight and signal strength

10
Pressure Sensor 1 Test Application
  • Provides a packet of information for one pressure
    sensor in real-time.
  • Packet of information includes primary pressure,
    battery voltage, strength of received signal and
    module temperature.
  • User role Connect receiver to the computer
  • use X-CTU software to enable wireless
    communication
  • enter sensor serial number and number of counts
    in PS1 Test Application.

11
Pressure Sensor 1 Test Application
12
Multi Test Application
  • Collects same packet of information as that of
    PS1 Test Application in real time.
  • Used to collect information from multiple
    sensors.
  • User role PS1 Test Application user role enter
    sampling period (seconds)

13
Multi Test Application
14
Back-end Processing Application
  • Designed and added a back-end processing
    application in Multi-Test Application and PS1
    Test Application.
  • User Role Multi Test 1/PS1 Application Role
    enter a range for normal pressure value.
  • PS1 Back-end Processing Separate plots for each
    sensors. User will set limit for each of the
    sensors.
  • Multi Test Back-end Processing Application will
    make individual graphs for each sensors pressure
    in one plot.
  • Both back-end processing application will flash
    message in real-time if the incoming pressure
    reading is outside the range.

15
MULTI TEST BACK-END PROCESSING APPLICATION
16
PS1 BACK-END PROCESSING APPLICATION
17
Suggestions for future design improvements
  • Better functionality for purchased sensors
  • Practical tests of device on the actual pressure
    system
  • Finding alternative solutions for the wireless
    range
  • Further develop Backend Process

18
Tests
  • Notes and Assumptions
  • Clamp Hose
  • 50 psi
  • Not instantaneous Reading
  • Setup
  • Nitrogen Tank
  • 5 Glad hand connectors
  • 2 pressure sensors
  • Pressure gauge
  • 1 leaky hose

19
Tests
  • Procedure
  • Simulate the actual system
  • Connect via glad hands
  • Create restriction
  • Turn on the pressure tank
  • Results
  • Restricted side pressurized slower
  • Leak affected the restricted side
  • Once the tank was turned off, restricted side
    dropped pressure faster due to leak

20
Demonstration
  • Pressurized with no restriction/ leaks
  • Pressurized with restriction/ leak

21
Conclusion
  • Designed an adapter for the glad-hand connectors
  • Pressure sensors installed in the adapter will
    transmit pressure information wirelessly
  • Sensor operates in harsh environments from rain
    to desert storms
  • Developed a back-end software to display out of
    rage pressure readings
  • Tested the device in the laboratory to determine
    functionality

22
Questions?
