How to Build a Low-Cost, Extended-Range RFID Skimmer

1

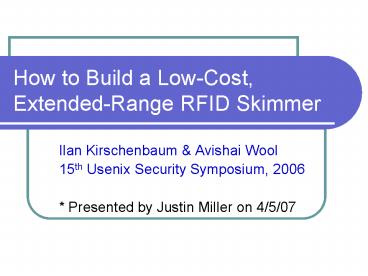

How to Build a Low-Cost, Extended-Range RFID
Skimmer

• Ilan Kirschenbaum Avishai Wool
• 15th Usenix Security Symposium, 2006
• Presented by Justin Miller on 4/5/07

2
Overview
3
Background

• RFID uses ISO-14443 standard
• Increased security
• Very short range (5-10cm)
• Goals
• Build extended-range RFID skimmer
• Collects mass info from RFID devices

4
Outline

• RFID
• System design
• Building
• Tuning methods
• Results
• Conclusions

5
RFID Technology

• Many applications
• Contactless credit-cards
• National ID cards
• E-passports
• Other access cards
• Very short range
• Security vulnerabilities

6
Attacks on RFID

• Relay Attack

7
Attacks on RFID

• Relay Attack

8
Attacks on RFID

• German Hacker
• PDA and RFID read/write device
• Changed shampoo prices from 7 to 3
• Johns Hopkins Univ.
• Sniffs info from RFID-based car keys
• Purchased gasoline for free

9
ISO-14443

• Proximity card used for identification
• Very short range (5-10 cm)
• Embedded microcontroller
• Magnetic loop antenna (13.56 MHz)
• Security
• Cryptographically-signed file format

10
RFID Skimmer

• Collect info from RFID tags
• Signal/query RFID tags close by
• Record responses
• Some uses
• Retrieve info from remote car keys
• Obtain credit card numbers

11
System Design Goals

• Low power
• Low noise
• Large read range
• Simple design
• Cheap

12
System Design
13
Part 1 - RFID Reader

• TI S4100 Multi-Function reader
• Cost 60
• Built in RF power amplifier
• Sends approx. 200mW into small antenna

14
Part 2 - RFID Antenna

• Antenna range length
• 39 cm copper tube loop
• Antenna inductance 1 µH

15
Part 3 - Power amplifier

• Amplifier interfaced directly to modules output
  stage
• Powered by FET voltag
• Field-effect transistor
• Did not match impedances between amp and output

16
Part 4 - Receiver Buffer

• Load Modulation Receive Buffer
• HF reader system
• Receiver input directly connected to readers
  antenna
• Attenuate signals before feeding them back to the
  TI module
• Avoid potential reader damage
• Still deliver input signals to receiver

17
Part 5 - Power Supply

• Powers the large loop antenna
• Maintain smooth DC supply
• Clean power supply
• Low ripples (power variance)
• Improves detection range

18
System Building

• Copper Tube Loop Antenna
• Ideal 40x40 cm
• Copper-tube
• Constructed their own
• Cheaper copper tube, used for cooking gas
• Pre-made in circular coils

19
System Building

• Copper-tube loop and PCB antennas

20
System Building

• RFID Base Board
• Decon DALO 33 Blue PC Etch pen
• Protected ink used to draw leads on tablet

21
System Building

• RFID Base Board and power amp

22
System Building

• Power Amplifier
• Based on Melexis application note
• Input driven from reader output
• Ideal high voltage rating capacitors
• Used cheaper, but low voltage

23
System Building

• Load Modulation Receive Path Buffer
• Signals are looped back
• Buffer needed to hold correct signals

24
System Tuning

• RF Network Analyzer
• Measure magnitude and phase of input
• Measure Voltage Standing Wave Radio
• Adjust antennas impedance to match amplifier
  output
• RF power meter
• Measures power reception
• Ideal measure actual amplification

25
Experiment Notes

• Power supply affects skimmer mobility
• Clean increases RFID detection range
• System tuning finds maximal power transfer
  between circuits

26
Results

• Increased RFID Scan Ranges
• 12-V battery
• 16.9 cm (PCB), 23.2 cm (copper tube)
• With power amp
• 17.3 cm (PCB), 25.2 cm (copper tube)

27
Results
28
Results

• Close to theoretical predictions

29
Contributions

• Built RFID skimmer ? validated basic concept of
  an RFID Leech
• RFID tags can be read from greater distances (25
  cm)
• Halfway towards full implementation of a
  relay-attack

30
Strengths

• Created a portable, RFID skimmer
• Step-by-step instructions
• Low system cost (60)

31
Weaknesses

• Not developed for large scale production
• Cheap design less efficient results
• Expensive system tuning methods

32
Improvements

• Better equipment
• Use copper-tube loop antenna
• Power amp with higher voltage rating capacitors
• RF Tuning measure actual amplification instead
  of power
• High rating components
• More powerful RF test equipment

33
Questions?

• Ask me!
