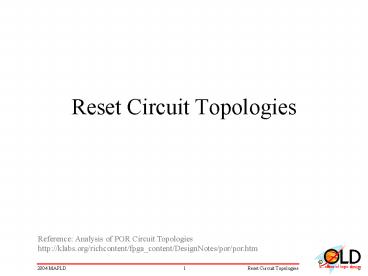

Reset Circuit Topologies

1
Reset Circuit Topologies
Reference Analysis of POR Circuit Topologies
http//klabs.org/richcontent/fpga_content/DesignN
otes/por/por.htm
2
Introduction
The seemingly simple issue of FPGA and ASIC
power-on reset circuits is nevertheless often a
frequent cause of problems.  The discussion in
this module will cover both the key issues and a
variety of circuits, analyzing their strong and
weak points.  The discussion will in most cases
be general logic design but will deal with some
particular issues with Field Programmable Gate
Arrays (FPGAs).
3
System Issues

• None of the circuits discussed in this module are
  intended to deal with issues of logic devices not
  starting (e.g., following their truth table)
  instantly after the application of power.  These
  system-level issues, based on system-level
  requirements, must be analyzed and, if necessary,
  dealt with at the system level and not at the
  logic level internal to the FPGA or ASIC.

4
Analysis Assumptions

1. The external POR circuitry is properly designed.
2. The clock is generated by a crystal clock
   oscillator, which takes a certain amount of time
   to start and then become stable.   Additionally,
   the oscillator may not start clean.
3. The clock is not gated off.  If that is not true,
   such as when areas of the circuit where the clock
   is gated off for power savings, then additional
   issues arise.
4. The POR signal is asynchronous to CLK.
5. The period of CLK is large compared with the
   metastable state resolution time of the flip-flop
   being used for synchronization.
6. The POR assertion time exceeds the clock
   oscillator and FPGA start times.
7. The output of the internal POR circuit drives the
   asynchronous set/reset of flip-flops.  Since
   modern FPGAs all have asynchronous flip-flop
   inputs, this is often used to save logic
   resources, delay, and power.  This is an
   important consideration since these inputs,
   unlike D's and ENABLE's, are sensitive to
   glitches.  It is further assumed that timing
   specifications are met for set/reset distribution
   including the "removal" time.
8. Noise pulses on the input POR  signal is a
   credible situation.

5
Fully Asynchronous Application

• Unintended operation or lockup of finite state
  machines or systems may result if the flip-flops
  come out of reset during different clock periods.
• There is a potential for one or more uncontrolled
  metastable states.
• Therefore, only reset circuits that attempt to
  remove power-on reset synchronously (PORS) should
  be considered in hi-rel applications.

6
Fully Asynchronous Application
TYPE STATE_TYPE IS (s0 , s1 , s2, s3, s4, s5,
s6, s7, s8, s9, .. s60,
s61, s62, s63, s64, s65, s66, s67)
.. IF resetn '0' THEN state lt
s0 .. CASE state IS WHEN
s0gt IF StartC '1' THEN state lt s1 END
IF WHEN s1gt state lt s2 WHEN s2gt state lt
s3 WHEN s3gt state lt s4 WHEN s4gt state lt
s5 .

• A real life example of lack of consideration for
  POR issues
• Numerous state machine used in design, some
  rather complex
• External POR signal applied to all flip-flops
  with no synchronization
• Local routing resources used for delivering POR
  throughout the circuit

7
POR Circuit Selection

• Significant issues related to the analysis and
  selection of a power-on reset circuit for a
  particular application include
• Dependence on clock signal being operational
• Noise immunity
• Critical timing path impact

8
Synchronously Applied, Synchronously Removed
Circuits

• All circuits of this type need Clock to be
  operational

9
Example 1A
Example1AProc process (Clk) begin if
RisingEdge(Clk) then PORA lt POR PORS lt
PORA end if end process Example1AProc
10
Example 1A

• Fully synchronous
• Needs Clock to be operational ( two cycles)
• Compare with start/load time for FPGA
• Minimized impact on critical timing path
• Rejects noise that is not coincident with clock
  edge
• External analog filters can help device input
  transition times must be met, simple RC circuits
  may violate timing constraints
• Internal digital FSM can act as a filter, care
  must be taken for startup conditions, latency,
  timing, metastable states, etc.
• No general solution since noise can be
  arbitrarily large in time

11
Example 1B
Example1BProc process (Clk) begin if
RisingEdge(Clk) then PORA lt POR PORB lt
PORA end if end process Example1BProc PORS
lt PORA or PORB

• A flawed attempt to improve Circuit in Example 1
  for noise immunity
• A static hazard on the output of OR gate a POR
  pulse shorter than one Clock cycle may result in
  a glitch on PORS

12
Example 1C
Example1CProc process (Clk) begin if
RisingEdge(Clk) then PORA lt POR PORB lt
PORA PORC lt PORB end if end process
Example1CProc PORS lt PORA or PORC

• Fixes static hazard problem of Example 1B for
  narrow noise spikes.
• Only one input to the OR gate changes at any time
• This technique can be extended to reject POR
  pulses of arbitrary width

13
Asynchronously Applied, Synchronously Removed
Circuits

• Remember, many programmable logic devices will
  not allow inputs in or outputs out until the
  device starts.

14
Example 2
Example2Proc process (Clk) begin if
RisingEdge(Clk) then PORA lt POR PORB lt
PORA end if end process Example2Proc PORS lt
POR and PORB
15
Example 2

• POR wrapped around the synchronizing flip-flops
  to asynchronously assert PORS
• Assertion of PORS is not affected by oscillator
  start time or even failure
• Removal is clean properly synchronized to FFA
  and FFB
• FPGA start time may make the asynchronous
  application of POR appear to take action
  instantly.
• Schematic or HDL description of a circuit may not
  be valid during the turn-on transient.
• Noise immunity is low
• Noise or runt pulses will get onto the reset
  network, resulting in incomplete resets and
  metastable states.
• The logic gate slows the signal down relative to
  Example 1

16
Example 3
Example3ProcA process (Clk, POR) begin if POR
'0' then PORA lt '0' elsif
RisingEdge(Clk) then PORA lt POR end
if end process Example3ProcA
Example3ProcB process (Clk) begin if
RisingEdge(Clk) then PORS lt PORA end
if end process Example3ProcB
17
Example 3

• Fixes some of the problems of Figure 2.
• Noise immunity improved
• No gate in the path of PORS helps with timing
• No combinational path for reset needs an
  operational clock to propagate.
• Most transients are caught by FFA and then
  cleaned up.
• Worst case a noise glitch on POR just before an
  active edge of Clk

18
Example 4A
Example4AProc process (Clk, POR) begin if POR
'0' then PORA lt '0' PORS lt '0'
elsif RisingEdge(Clk) then PORA lt POR
PORS lt PORA end if end process Example4AProc
19
Example 4A

• POR can be distributed prior to the clock
  starting. Note that the FPGA must be fully
  operational too, as discussed above.
• FFB will take care of metastability on the PORA
  signal.
• Noise glitches are reasonably well handled.
• FFA and FFB should be hand placed to minimize POR
  skew.
• Not bulletproof against Runt pulses on POR.
• Is FFB reliable with POR removed asynchronously?
  Note that some hi-rel flip-flops are built with
  TMR structures. Other flip-flops may internally
  glitch or have a hazard and not be stable.

20
Example 4B
Example4BProc process (Clk, POR) begin if POR
'0' then PORA lt '0' PORB lt '0'
PORS lt '0' elsif RisingEdge(Clk) then
PORA lt POR PORB lt PORA PORS lt PORB
end if end process Example4BProc

• Extension of the circuit shown in 4A.
• Longer reset after detection of a transient.

21
Notes and References

1. "Some Characteristics of Crystal Clock
   Oscillators During the Turn-On Transient."  This
   application note discusses and shows what the
   output of an oscillator may be during the turn-on
   transient.  Examples shows include runt pulses of
   various sizes and polarities. http//klabs.org/ri
   chcontent/General_Application_Notes/oscillator/osc
   _start_up_note/index.htm
2. "Asynchronous Synchronous Reset Design
   Techniques - Part Deux http//klabs.org/richcon
   tent/General_Application_Notes/reset_sync_async_v2
   .pdf
3. "Small Explorer WIRE Failure Investigation
   Report." This is Appendix F of the WIRE Mishap
   Investigation Board Report, June 8, 1999.
   http//klabs.org/richcontent/Reports/WIRE_Report.P
   DF
4. "Startup Transient," from Advanced Design
   Designing for Reliability, 2001 MAPLD
   International Conference, Laurel, MD, September
   10, 2001. http//klabs.org/richcontent/Tutorial/
   MiniCourses/reliable_design_mapld2001/D_StartupTra
   nsient.ppt
5. "Current Radiation Issues for Programmable
   Elements and Devices," IEEE Transactions on
   Nuclear Science, December 1998.
   http//klabs.org/richcontent/Papers/NSREC98_Paper.
   pdf
6. "RH1020 Single Event Clock Upset Summary Report,"
   Richard B. Katz and J. J. Wang, March 5, 1998
   http//klabs.org/richcontent/fpga_content/Act_1/rh
   1020_clk_upset_White_paper.PDF
7. Thanks to Melanie Berg of Ball for the helpful
   comments and suggesting to add notes about the
   extra delay in the reset path when using
   topologies such as those shown in Figure 2.
8. "Hazard Analysis," from Design Guidelines and
   Criteria for Space Flight Digital Electronics.
   http//klabs.org/DEI/References/design_guidelines/
   nasa_guidelines/hazards/hazards.htm and
   http//klabs.org/DEI/References/design_guidelines/
   nasa_guidelines/index.htm
9. Timing Analysis of Asynchronous Signals
   http//klabs.org/richcontent/General_Application_N
   otes/parts/removal_time.htm
