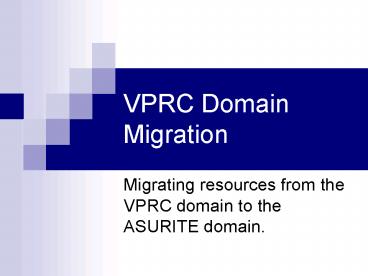

VPRC Domain Migration

1
VPRC Domain Migration

• Migrating resources from the VPRC domain to the
  ASURITE domain.

2
Initial Plan

• VPRC Domain Windows NT 4.0 multi-master domain
  with a PDC (a), resource servers (b), computer
  accounts (c), and user accounts (d).
  (VPRC.ASU.EDU)
• Trust Relationship Explicit one-way trust
  established to allow the ASURITE domain to access
  resources in the VPRC domain.
• ASURITE Domain Windows 2000 domain running in
  Native Mode. (ASURITE.AD.ASU.EDU) All ASURITE
  user accounts reside in this domain and will be
  accessed from here.
• M.OVPR - organizational unit for the OVPR (e).
  Starts out empty but will eventually contain all
  of our computer accounts, security groups, etc..
• Transitive Two-Way Trust (f). Built-in trust
  between empty root (AD.ASU.EDU) and down level
  domain (ASURITE.AD.ASU.EDU).
• AD Forest Root Domain (g). Containing Forest
  Schema and Domain Naming Master FSMO's, Schema
  and Enterprise Admins. No user accounts or
  computers.

1
3
VPRC Domain
ASURITE Domain
AD Domain
g
M.OVPR
2
f
a
b
c
d
e
3
Step One

• VPRC Domain Windows NT 4.0 multi-master domain
  with a PDC (a), resource servers (b), and
  computer accounts (c). User accounts from this
  domain will no longer be utilized.
  (VPRC.ASU.EDU)
• Trust Relationship Explicit one-way trust
  established to allow the ASURITE domain to access
  resources in the VPRC domain.
• ASURITE Domain This step will be performed
  simultaneously with step two. All user accounts
  will be pulled from the ASURITE domain (d). New
  global security groups will be created in
  M.OVPR.Groups containing the ASURITE IDs of our
  users. New local security groups will be created
  on the resource servers containing the global
  security groups from M.OVPR.Groups. This will
  allow users still in the ASURITE domain to access
  resources still contained within the VPRC domain.
• M.OVPR - organizational unit for the OVPR (e).
  This will start out empty but will eventually
  contain all of our computer accounts, security
  groups, etc..

1
3
VPRC Domain
ASURITE Domain
AD Domain
d
2
M.OVPR
a
b
c
e
4
Step Two

• VPRC Domain Windows NT 4.0 multi-master domain
  with a PDC (a) and resource servers (b). User
  accounts from this domain will no longer be
  utilized and all computer accounts have been
  migrated to the ASURITE domain.
• Trust Relationship Explicit one-way trust
  established to allow the ASURITE domain to access
  resources in the VPRC domain.
• ASURITE Domain All ASURITE user accounts will be
  pulled from the ASURITE domain (d).
• M.OVPR - organizational unit for the OVPR (e).
  All computer accounts (c) now reside in the
  computer sub-OU (M.OVPR.Computers). These are
  workstations only. When migration takes place,
  users local profile folder is renamed from
  username to username_old. User logs in to
  create new profile (for the ASURITE domain). All
  files except NTUSER.INI, NTUSER.DAT, and
  NTUSER.DAT.LOG are copied into the new local
  profile folder and permissions are reset to give
  the user the appropriate permissions. This will
  retain all application settings except for the
  Exchange profile.

1
3
VPRC Domain
ASURITE Domain
AD Domain
d
2
M.OVPR
c
a
b
e
5
Step Three

• VPRC Domain Windows NT 4.0 multi-master domain
  with a PDC (a). User accounts from this domain
  will no longer be utilized and all
  computer/server accounts have been migrated to
  the ASURITE domain.
• Trust Relationship Explicit one-way trust
  established to allow the ASURITE domain to access
  resources in the VPRC domain.
• ASURITE Domain All ASURITE user accounts will be
  pulled from the ASURITE domain (d).
• M.OVPR - organizational unit for the OVPR (e).
  All resource servers (b) have been migrated. All
  computer accounts (c)now reside in the computer
  sub-OU (M.OVPR.Computers).

1
3
VPRC Domain
ASURITE Domain
AD Domain
d
2
M.OVPR
c
b
a
e
6
Where We Are Now

• Remote Installation Server (RIS) was first in
  ASURITE domain.
• Two production IIS servers and one development
  IIS server have been migrated.
• About half of our users have been migrated.
• Any time we touch a computer for maintenance or
  install a new one we bring it up in ASURITE.

7
What We Did Different

• Initial Plan
• Place all workstations in a single OU
  (M.OVPR.Computers).

• Actual Implementation
• Created multiple OUs to reflect our departmental
  structure and placed workstations where
  appropriate. This eases administrative tasks and
  allows us to implement workstation changes on a
  granular level. This will be of great benefit to
  us as we develop more complex GPOs, security
  policies, and as we begin to use Intellimirror.

8
Current OU Structure

• Allows us to monitor where workstations are.
• Absolute control over GPOs and where they are
  applied.
• Will allow us to give limited administrative
  control to those departments that desire it.

9
Next Steps

• Finish migration.
• Migrate remaining users/workstations into
  ASURITE.
• Move file and print servers into ASURITE.
• Shut down NT 4 domain (VPRC).
• Begin testing of new technologies such as
  Intellimirror and advanced GPO use in TASURITE.

10
