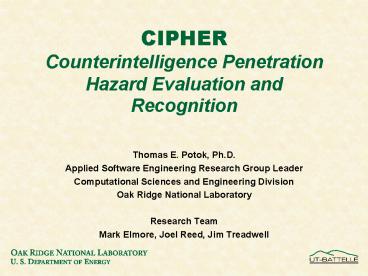

CIPHER Counterintelligence Penetration Hazard Evaluation and Recognition

1
CIPHERCounterintelligence Penetration Hazard
Evaluation and Recognition

• Thomas E. Potok, Ph.D.
• Applied Software Engineering Research Group
  Leader
• Computational Sciences and Engineering Division
• Oak Ridge National Laboratory
• Research Team
• Mark Elmore, Joel Reed, Jim Treadwell

2
Oak Ridge National Laboratory

• Established in 1943 for the World War II
  Manhattan Project.
• ORNL today pioneers the development of new energy
  sources, technologies, and materials
• The advancement of knowledge in
• Biological, Chemical,
• Computational, Engineering,
• Environmental, Physical, and Social Sciences.
• Budget 870 million, 80 Department of Energy,
  20 work for others.
• 3800 employees, 1500 scientists and engineers

3
Background

• SNORT network intrusion detection software is
  placed outside of the ORNL firewall
• Packets entering or leaving ORNL that contain
  information that trips a SNORT rule will result
  in log entry being created
• Roughly 1 million log entries are created per day

4
Four Actual SNORT Records
ftp-000172 IDS152 - PING BSD
07/20-000502.815218 090699DB03E -gt
036C4253FC type0x800 len0x62 213.61.6.2 -gt
128.219.153.31 ICMP TTL46 TOS0x0 ID19485
ID8831 Seq9639 ECHO misc-000264
IDS247 - MISC - Large UDP Packet
07/20-000502.822267 090699DB03E -gt
036C4253FC type0x800 len0x4F8 63.76.192.107
23882 -gt 160.91.64.2116970 UDP TTL119 TOS0x0
ID41256 Len 1238 ftp-000172 IDS152 -
PING BSD 07/20-000502.832993
090699DB03E -gt 036C4253FC type0x800
len0x62 212.62.17.145 -gt 128.219.153.31 ICMP
TTL50 TOS0x0 ID2867 ID18484 Seq12610
ECHO ftp-000172 IDS152 - PING BSD
07/20-000502.865830 090699DB03E -gt
036C4253FC type0x800 len0x62 211.13.227.66
-gt 128.219.153.31 ICMP TTL54 TOS0x0 ID50798
ID7904 Seq22732 ECHO
5
Step 1 Create Software to Process the Raw Data
From Raw Log Entry misc-000264 IDS247 -
MISC - Large UDP Packet 07/20-000503.171193
090699DB03E -gt 036C4253FC type0x800
len0x527 63.76.192.10723882 -gt
160.91.64.2116970 UDP TTL119 TOS0x0 ID60713
Len 1285
To Parsed Log Entry Filter misc-000264 IDS247
- MISC - Large UDP Packet Date 07/20 TOD 000
503.171193 Source IP 63.76.192.107 Source
Port 23882 Target IP 160.91.64.211 Target
Port 6970 Length 1285
6
Step 2 Create Software to Organized the
Information by Source IP

• Source IP 192.112.36.5 attacked the following
  ORNL IPs
• 07/20 0001 160.91.77.79 66 misc-000224 IDS118 -
  MISC-Traceroute ICMP
• 07/20 0001 160.91.77.79 66 misc-000224 IDS118 -
  MISC-Traceroute ICMP
• 07/20 0036 160.91.192.107 66 misc-000224 IDS118
  - MISC-Traceroute ICMP
• 07/20 0036 160.91.192.107 66 misc-000224 IDS118
  - MISC-Traceroute ICMP

7
Step 3 Create software to relate Lab Assets to
IP addresses
Parsed Log Entry Filter misc-000264 IDS247 -
MISC - Large UDP Packet Date 07/20 TOD 0005
03.171193 Source IP 63.76.192.107 User John
Doe Research Area Nuclear Physics Source
Port 23882 Target IP 160.91.64.211 Target
Name smith.aol.com Target Port 6970 Length 128
5
NetReg Database 63.76.192.107 John Doe BN 123456
2
CME Database Johnathon Doe BN 123456 Nuclear
Physics
3
DNS Database 63.76.192.107 John Doe BN 123456
1
8
Finding lab assets not easy

• Based on our Collaborative Management Environment
  (CME) Project
• One common picture of Laboratory Research Funding
  for DOE
• Funded at 2.4M over 4 years
• Dr. Ernest Moniz, Under Secretary of Energy,
  approves
• CME based Portfolio Management Environment (PME)
• Producing approximately 39 million annual
  productivity gains for DOE

9
CME System
10
Step 4 Create Software to Find Attacks Against
Lab Assets

• Philosophy Look at activity against valuable lab
  assets, not at packet statistics
• Find SNORT log entries against funded researchers
• Significantly reduces data from 1M records to
  approximately 15,000
• 788 unique source addresses

11
Step 5 Create changes to the original VIPAR tool

• Adapt for usage with SNORT records
• Allow records to be searchable, including IP
  address
• Create folders based on SNORT filters
• Can instantly find all the PING, or traceroutes

12
Results All Attacks

• SNORT log entries from 788 source IPs
• Failed login errors highlighted

13
Suspicious Patterns

• Search over curious PI name
• 45 Entries from
• Czech Republic, Austria, Hungary, Latvia, France,
  Chile, and Canada.
• Both PIs work in the same nanoscience area

14
Potential Attack
15
CIPHER Value

• This analysis can not be done without CIPHER!
• Ability to quickly summarize data
• Organized around SNORT filters
• Can quickly find suspicious patterns
• Search over records
• Find similar patterns

16
Potential Next Steps

• Create interface for tools to work with broader
  collections of data
• Connect CIPHER directly to reduced data
• Expand to work on multiple days
• Add IP watch list capability
• Add data from other sources
• Trip reports
• Sensitive technologies
• Sensitive countries
