Disk fundamentals

1

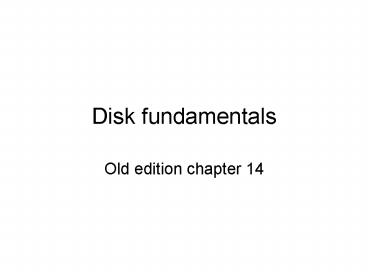

Disk fundamentals

• Old edition chapter 14

2
The virtual layering

• Virtual layering of disk storage system
• disk controller firmware controller chips or
  card to map physical disk geometry for different
  drive brands and models
• BIOS low level functions to read/write sectors
  or format tracks
• The OS API services to open/close files, set
  properties, read/write files

3
Virtual levels of disk access
4
Common to all systems

• Physical partitioning of data
• Access to data at the file level
• Map filenames to physical locations

5
Hardware level

• Platters
• sides
• Tracks
• Cylinders
• sectors

6
OS level

• OS level view of the disk is in terms of
  partitions, directories and files

7
Assembly access to disk

• Readily available using BIOS under MS-DOS for ME,
  NT, XP, Windows7, etc.
• Store and retrieve data in a special format (like
  Hamming or Huffman codes)
• Recover lost data
• Perform diagnostics
• Using NT or XP you must use Win32 API for disk
  manipulationor write device drivers with high
  privilege

8
Tracks, cylinders, sectors

• Disk is made up of multiple platters
• Attached to a spindle which rotates at constant
  speed
• Above the surface of each platter is a r/w head
  that records magnetic pulses
• The heads move in or out as a group
• See text sketch p 465

9
Tracks, cylinders, sectors

• Surface of disk is formatted into (invisible)
  concentric bands called tracks where data is
  stored magnetically.
• A disk will have thousands of tracks.
• Moving r/w head from one track to another is
  called seeking.
• (not mentioned) latency is the time it takes a
  particular sector to rotate around under the head
• Seek time for a disk is one sort of performance
  measure
• RPM is another performance measure- usually 7200
• The outermost track is track 0 and numbers
  increase as you move toward the center.

10
Tracks, cylinders, sectors

• All tracks readable from a given r/w head
  position together form a cylinder.
• A file would typically be stored on disk using
  adjacent cylinders. This reduces seek time.
• A sector is a 512-byte portion of a track
• Physical sectors are magnetically marked at the
  factory using low-level formatting. Their size
  does not change regardless of the OS used. A hard
  disk may have 63 or more sectors per track.

11
Photo of hard disk with reflective platter visible
12
A platter from a 5.25" hard disk, with 20
concentric tracks drawnover the surface. Each
track is divided into 16 imaginary sectors
13
Figure 1

14
Sectors tracks

• A sector is the basic unit of data storage on a
  hard disk. The term "sector" emanates from a
  mathematical term referring to that pie shaped
  angular section of a circle, bounded on two sides
  by radii and the third by the perimeter of the
  circle - See Figure 1. An explanation in its
  simplest form, a hard disk is comprised of a
  group of predefined sectors that form a circle.
  That circle of predefined sectors is defined as a
  single track. A group of concentric circles
  (tracks) define a single surface of a disks
  platter. Early hard disks had just a single
  one-sided platter, while today's hard disks are
  comprised of several platters with tracks on both
  sides, all of which comprise the entire hard disk
  capacity. Early hard disks had the same number of
  sectors per track location, and in fact, the
  number of sectors in each track were fairly
  standard between models. Today's advances in
  drive technology have allowed the number of
  sectors per track, or SPT, to vary significantly,
  but more about that later.

15
More about disks

• When a hard disk is prepared with its default
  values, each sector will be able to store 512
  bytes of data. Without elaborating, there are a
  few operating system disk setup utilities that
  permit this 512 byte number per sector to be
  modified, however 512 is the standard, and found
  on virtually all hard drives by default. Each
  sector, however, actually holds much more than
  512 bytes of information. Additional bytes are
  needed for control structures, information
  necessary to manage the drive, locate data and
  perform other functions. Exact sector structure
  depends on the drive manufacturer and model,
  however the contents of a sector usually include
  the following elements
• ID Information Within each sector a small space
  is left to identify the sector's number and
  location, which is used to locate the sector on
  the disk and provide for status information about
  the sector itself. For example, a single bit is
  used to indicate if the sector has been marked
  defective and remapped.
• Synchronization Fields These are used internally
  by the drive controller to guide the read
  process.
• Data The actual data in the sector.
• ECC Error correcting code used to ensure data
  integrity.
• Gaps Often referred to as spacers used to
  separate sector areas and provide time for the
  controller to process what it has been read
  before processing additional data.
• Servo Information In addition to the sectors,
  each of which contain the items above, space on
  each track is allocated for servo information on
  drives that utilize embedded servo drives.
  Most, if not all, modern drives not employ servo
  technology.

16
Aside Zoned Bit Recording

• We would be remiss in our discussion of drive
  sectors, tracks and performance without
  mentioning mass improvements such as Zoned Bit
  Recording. One of the methods used to increase
  capacity and data access speeds on hard disks is
  by improving the utilization of the larger, outer
  tracks of the disk. Early hard disks were
  extremely primitive, and their controllers
  weren't capable of handling complicated
  arrangements such as being able to change tracks.
  As the result of this arrangement, every track
  had the same number of sectors, with the standard
  set at 17 sectors per track.
• As you can see from our sketch above, Figure 1,
  tracks are concentric circles, with the ones on
  the outside of the platter much larger in
  circumference than the ones closer to the center.
  Since there is a constraint on how tightly the
  inner circles can be packed with bits, developers
  packed them tightly as possible given the state
  of technology at the time. By reducing bit
  density, developers were able to assign the same
  number of sectors to the outer circles.
  Essentially this meant that the inner sectors
  were being packed so tightly there was no room
  for error, and the outer sectors underutilized,
  as in theory they could hold many more sectors
  given the same linear bit density limitations as
  were imposed on the inner sectors.

17
Zoned Bit Recording

• Drive developers, in an effort to create larger
  drive sizes, as well as improve utilization and
  performance, developed a technology referred to
  as zoned bit recording (ZBR). Zoned bit recording
  is often referred to as  multiple zone recording
  or just zone recording. With this technology,
  tracks are grouped into zones based on their
  distance from the center of the disk, and each
  zone is assigned a number of sectors per track.
  As you move from the innermost part of the disk
  to the outer edge, you move through different
  zones, each containing more sectors per track
  than the one before. This makes more efficient
  use of the larger tracks on the outside of the
  disk. In essence, with ZBR, the size (or length)
  of a sector remains reasonably constant over the
  entire surface of the disk. Stark contrast to
  very early hard disks that did not employ ZBR, as
  their tracks were limited to only 9 sectors
  regardless of track size.
• An interesting added benefit from zoned bit
  recording is that the raw data transfer rate of
  the disk, also referred to as the media transfer
  rate (a bit of a misnomer), when reading the
  outside cylinders is considerably higher than
  when reading the inside ones. Although the
  angular velocity of the platters is constant
  regardless of which track is being read, the
  outer cylinders contain more data. Bear in mind
  though that angular velocity does not necessarily
  compensate for the fact that the outer tracks
  (periphery of the platter) is moving much faster
  than the tracks at the core of the platter.
• Take note that constant angular velocity is not
  the case for all drive technologies, such as
  older CD-ROM drives.
• Since data is written to the outer tracks of a
  drive first, hence the drive is filled with data
  from the outside in. The fastest data transfer
  occurs when the drive is first used and data
  retained in the outer tracks. Many people that
  perform benchmarks on their systems and their
  hard drives when new, then make some tweaks and
  changes to their system only to return to their
  benchmarks weeks or months later only to be
  unpleasantly surprised that the disk and its
  benchmarks are getting slower. Actually, the disk
  has probably has not changed at all, but the
  second benchmark may have been run on tracks
  closer to the center of the disk. While most
  people that take benchmarking seriously
  defragment their drives before running the tests,
  fragmentation of the file system can have impact
  performance benchmarks.

18
fragmentation

• Disk storage becomes fragmented over time just
  like main memory.
• A fragmented file is not located in contiguous
  disk sectors. This slows access time.

19
translation

• Translation is the process converting physical
  geometry into logical structure
• The drive itself or a card has a controller to
  perform this operation.
• The OS works with logical (not physical) sector
  numbers.

20
Logical Block Addressing aside

• Prior to the advent of Logical Block Addressing,
  all hard drives were accessed via CHS (Cylinder,
  Head, Sector) or Extended CHS, which means that
  the drive was accessed by specifying its
  cylinder, head and sector address. More
  appropriately, it was referred to as accessing
  the drive through its "geometry". Extended CHS
  was a transition change in the way a drive was
  accessed in order to work around the 504 MiB
  barrier, however, the addressing was still done
  in terms of cylinder, head and sector numbers and
  then translated one or more times before actually
  accessing the drive itself.
• By contrast, logical block addressing (LBA)
  involves a completely new method of addressing
  sectors. New in that it is new to the EIDE/IDE
  interface. LBA was first developed around SCSI
  hard drives. With LBA, instead of referring to a
  drives cylinder, head and sector number geometry
  in order to access or "address" it, each sector
  is assigned a unique "sector number". In essence,
  LBA is a means by which a drive is accessed by
  linearly addressing sector addresses, beginning
  at sector 1 of head 0, cylinder 0 as LBA 0, and
  proceeding on in sequence to the last physical
  sector on the drive, which, for instance, on a
  standard 540 Meg drive would be LBA 1,065,456.
  While this was new it the AT Specification ATA-2,
  it has always been the one and only addressing
  mode in SCSI. AT Attachment ATA-2 has been
  subsequently replaced, and the latest AT
  specification is at ATA-7. Note also that LBA
  does not allow you to address more sectors than
  CHS style addressing would.

21
Logical Block Addressing

• In order for you to employ LBA support, it must
  be supported by both the BIOS and the operating
  system. In addition, since it is a new method of
  communicating with the hard drive, the drive
  itself must support LBA as well. All newer hard
  drives do in fact support LBA. Often we review
  other sites to ensure that we provide you with
  accurate information, and with respect to LBA, we
  came upon a unique, but inaccurate, statement.
  One purported authority on computer systems
  stated that when drives supporting LBA are
  auto-detected by a BIOS that supports LBA, it
  will be set up to use that mode. This is
  inaccurate and misleading, as there's nothing in
  the BIOS code that will set up your drive to use
  LBA mode. If you have ever used Fdisk, you may
  recall that during the drive setup process, you
  are asked whether you want to enable LBA. Hence,
  it is a function of the operating system, and
  therefore don't expect your BIOS to somehow
  mysteriously setup your drive.
• While it is true that a drive enabled for LBA is
  not subject to the 504 MiB drive size barrier,
  there still remains considerable confusion about
  Logical Block Address and what it does. Many
  knowledgeable technicians and users believe that
  it is LBA addressing that avoids the 504 MiB
  barrier, however this is not quite accurate.
  Logical Block Addressing isn't getting around the
  barrier, because it is just another manner in
  which to address the same geometry. If you were
  still limited to 1,024 cylinders, 16 heads and 63
  sectors, you would still have logical sectors
  beginning with number 0, and progressing
  sequentially through to 1,032,191, with the 504
  MiB still in place. What does avoid this barrier
  is that LBA mode automatically enables geometry
  translation. This translation is required because
  the operating system calling the BIOS Int 13h
  routines knows nothing about LBA. Therefore it is
  the translation part of LBA that really gets
  around the barrier.
• When LBA is enabled, the BIOS will enable
  geometry translation. This translation may be
  done in the same way that it is done in Extended
  CHS or large mode via a drives geometry, or it
  may be done using a different algorithm called
  LBA-assist translation. It is this translated
  geometry that is presented to the operating
  system for use in Int 13h calls. Basically, the
  difference between LBA and ECHS is that when
  using ECHS the BIOS translates the parameters
  used by these calls from the translated geometry
  to the drive's logical geometry. With LBA, it
  translates from the translated geometry directly
  into a logical block (sector) number.
• LBA is currently the dominant form of hard disk
  addressing. When the 8.4 GB limit of the Int13h
  interface was reached in 1998-1999, it became
  impossible to express the geometry of large hard
  disks using cylinder, head and sector numbers,
  regardless of whether translated or not, while
  remaining below the Int13h limits of 1,024
  cylinders, 256 heads and 63 sectors. This is one
  of the reasons that today's hard drives no longer
  indicate their classical geometry.

22
Disk partitioning

• A single harddrive may be partitioned into
  logical units named partitions or volumes
  represented by a letter, A, B, C, ..
• A partition may be primary or extended and a
  drive may contain both types.
• A primary partition is bootable.
• An extended partition may be further divided into
  unlimited logical partitions. Each is mapped to a
  drive letter and can not be bootable. But each
  may be formatted with a different file system.

23
Multiboot systems

• It is common to create multiple primary
  partitions each booting a different OS.
• Mathlab is dual boot
• In industry, you might have primary partitions
  for development and production.
• Logical partitions hold data. Different OS can
  access the same file systems. Both Linux and DOS
  can read FAT32 disks.

24
FDISK.exe under MS-DOS

• Create and remove partitions
• Does not preserve data
• Later versions (Win2000 and later) have a disk
  manager utility

25
File systems

• Every OS has some disk management system.
• At the lowest level it manages partitions, at the
  next highest, files and dirctories.
• It must keep track of location, size and
  attributes for each file.

26
FAT File-Allocation-Table (see also later slide)

• Maps logical sectors to clusters (a basic storage
  unit)
• Maps files and directories to sequences of
  clusters.
• A cluster is the smallest unit of space used by a
  file, consisting of one or more adjacent disk
  sectors.

27
Wikipedia FAT

• File Allocation Table (FAT) is a file system
  developed by Microsoft for MS-DOS and was the
  primary file system for consumer versions of
  Microsoft Windows up to and including Windows Me.
  FAT as it applies to flexible/floppy and optical
  disk cartridges (FAT12 and FAT16 without long
  file name support) has been standardized as
  ECMA-107 and ISO/IEC 9293. The file system is
  partially patented.
• The FAT file system is relatively uncomplicated,
  and is supported by virtually all existing
  operating systems for personal computers. This
  ubiquity makes it an ideal format for floppy
  disks and solid-state memory cards, and a
  convenient way of sharing data between disparate
  operating systems installed on the same computer
  (a dual boot environment).
• The most common implementations have a serious
  drawback in that when files are deleted and new
  files written to the media, directory fragments
  tend to become scattered over the entire media,
  making reading and writing a slow process.
  Defragmentation is one solution to this, but is
  often a lengthy process in itself and has to be
  performed regularly to keep the FAT file system
  clean.

28
Wikipedia NTFS

• NTFS (New Technology File System) is the standard
  file system of Windows NT, including its later
  versions Windows 2000, Windows XP, Windows Server
  2003, Windows Server 2008, and Windows Vista.5
• NTFS replaced Microsoft's previous FAT file
  system, used in MS-DOS and early versions of
  Windows. NTFS has several improvements over FAT
  and HPFS (High Performance File System) such as
  improved support for metadata and the use of
  advanced data structures to improve performance,
  reliability, and disk space utilization plus
  additional extensions such as security access
  control lists and file system journaling. The
  exact specification is a trade secret, although
  (since NTFS v3.00) it can be licensed
  commercially from Microsoft through their
  Intellectual Property Licensing program.

29
XP disk management tool
30
Cluster sizes for 1.25-2gig volume

• FAT Type FAT16 FAT32
• Cluster Size 32 kiB 4 kiB
• Number of FAT Entries65,526 524,208
• Size of FAT 128 kiB 2 MiB

31
Clusters used by FAT

• A chain of clusters is referenced by a FAT that
  keeps track of all clusters used by a file.
  Pictures show cluster chain and wasted space
  examples.

sector
2
1
5
6
7
8
4
3
cluster1
cluster2
4096 used
4096 used
1000 bytes used
32
FAT 12

• Still supported by Windows and Linux
• Cluster size is 512 bytes perfect for small
  files
• Each table entry is 12 bits
• A volume holds less than 4087 clusters

33
FAT 16

• The only system for drives formatted under ms-dos
• Supported by all versions of windows and linux
• Drawbacks
• Storage is inefficient on volumes over 1 gig due
  to large cluster size
• Each table entry is 16 bits limiting the total
  number of clusters that can be accessed
• Volume holds between 4087 and 65,526 clusters
• Boot sector has no backup so a read error can be
  catastrophic
• No built in security or individual user
  permissions

34
FAT 32

• Introduced with OEM2 release of win 95 and later
  refined
• A single file can be up to 4gb (minus 2b)
• Each table entry is 32 bits
• a volume holds 65,526 up to 268,435,456 clusters
• Volume can hold up to 32 gig
• Smaller clusters than FAT 16 on volumes 1gb to
  8gb resulting in less waste
• Boot record has a backup of critical information

35
NTFS

• Supported under NT, 2000, XP
• Handles large volumes possibly spread over
  multiple drives
• For disksgt2gig, default cluster is 4kb
• Supports unicode filenames up to 255 chars long
• Permissions
• Built-in encryption
• Change journal can track file revisions
• Disk quotas for individuals or groups of users
• Robust recovery for data error and automatically
  repairs errors
• Supports multiple disk mirroring (a mirror is a
  copy)

36
ECC and Hamming

• Hamming is a fairly expensive single-error
  correction scheme developed by Hamming at Bell
  Labs.
• 2-power bits store parity of the other bits which
  they correct. So bit 1 is parity for all the odd
  bits. Bit 2 is parity for bits 3, 6, 7, 10,11,
  14, 15, bit 4 is correction bit for bits 5, 6, 7,
  12, 13, 14, 15. Bit 8 corrects 9, 10, ..15, and
  so on.

37
Hamming performance

• To send an 8 bit (ASCII code for example) piece
  of data, we will use correcting bits 1, 2, 4, and
  8 (4 bits) plus the 8 data bits means we will
  package 12 bits. Notice this is a 33
  overhead.
• To send 16 bits of data we would use correction
  bits 1,2,4,8 and 16 for a 21-bit package where
  overhead has dropped to less than 25
• We can send up to 247 bits of data using parity
  bits 1,2,4,8,16,32,64,and 128 (8 correction
  bits) so the overhead has dropped down to
  8/255smaller than 3

38
Hamminga 12 bit example

• Compute the correcting bits to send 8 bits of
  data, like A or 9.
• Assume even parity bits.

39
ECC example

• In bit interleaved parity disk 4 might hold
  parity bits for data on the other three disks.
• Bits are read simultaneously off the 4 disks. If
  data is lost on one of the 3 data disks it can be
  recovered from the parity disk.
• For example, if 2 good data bits read (with X
  marking lost data) are 1X1 with parity bit1 we
  see lost data (X) must be a 1.

40
MS DOS boot record

• See text pg 471
• Root directory is the main directory for a disk
  volume A directory entry for a file contains
  filename, size, attribute and starting cluster
  number.

41
Directory trees

• FAT and NTFS have root directories containing
  primary list of files on the disk.
• Subdirectories may be contained in the directory

42
Directory trees
Root directory
cpp
java
asm
etc
bin
jar
jdk
source
lib
bin
43
MS DOS directory structure

• MS-DOS entries are 32 bytes long with fields
  shown in table 14-5

44
MS DOS directory entry
Hex ofs Field format
00 Filename ASCII
08 extension ASCII
0B attr 8-bit bin
0C reserved
16 time 16-bit bin
18 data 16-bit bin
1A Start cluster 16-bit bin
1C size 32-bit bin
45
Filename status byte
Status byte description
00h Entry never used
01h With attr0fh and status byte 1h, this is the first entry of a long filename
05h
E5h Entry is for a filename where the file has been erased
2E5h (.) for directory name
4nh First long name entry with attr0fh this marks the end. nentries for filename
46
Attribute field is bit-mapped
reserved
archive
reserved
subdir
Volume label
System
hidden
Read-only
An entry of 0Fh indicates that the current dir
entry is for an extended filename
47
Date stamp
Year 0..119 and is added to 1980
Month1..12
Day1..31
month
day
15
8
5
year
9

48
Time stamp
Hour0..23
Minute0..59
Seconds0..59
seconds
hours
minutes
0
15
5
11
4
10

49
MSDOS 32 bit date/timesame as 16 bit, but date
is high word of a double word

• Year bits 31-25
• Month 24-21
• Day 20-16
• Hour 15-11
• Min 10-5
• Sec 4-0

50
Cluster chain example- just links are shown
2 3 4 8 9 10 eoc
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
16
File starting cluster1, filesize7
51
Cluster chain example2- just links are shown
6 7 11 12 eoc
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
16
File starts in cluster 5, size5
52
FAT

• When a file is create the OS looks for an
  available cluster entry in the FAT. Gaps occur
  if insufficient contiguous entries are available
  typically as files are deleted new ones
  added.
• As files are modified and resaved, their chains
  become fragmented.
• As r/w heads jumps between cylinders to locate
  all of a files clusters, performance degrades.

53
3 programs

• Previous (5th) edition text contained 3 programs
  to read sectors, check free diskspace, and look
  at clusters.
• But the first two do not run under xp.
