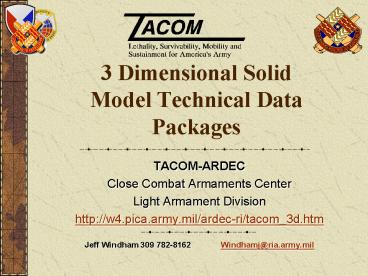

3 Dimensional Solid Model Technical Data Packages

1
3 Dimensional Solid Model Technical Data Packages

• TACOM-ARDEC
• Close Combat Armaments Center
• Light Armament Division
• http//w4.pica.army.mil/ardec-ri/tacom_3d.htm
• Jeff Windham 309 782-8162
  Windhamj_at_ria.army.mil

2
(No Transcript)
3
M9 Pistol Cutaway
4
3D SOLID MODEL TDPs

• TACOM technical data system currently based on
  2-D raster images of line drawings.
• TACOM is converting to a system based on 3-D
  solid models.
• This 3-D tech data will be used for production,
  design interface and upgrades, logistics support,
  configuration management, etc.

5
FROM THIS
TO THIS
6
Engineering Analysis
7
Rapid Prototype
8
3D SOLID MODELS ALLOW AUTOMATED CREATION OF
TECHNICAL MANUAL PAGES

9
3D SOLID MODELS ALLOW AUTOMATED CREATION OF
TECHNICAL MANUAL PAGES

10
3D SOLID MODELS ALLOW AUTOMATED CREATION OF
TECHNICAL MANUAL PAGES

11
Advantages of 3D TDPs

• Faster design upgrades
• Build virtual parts and assemblies in the
  computer
• Infinite viewpoints and exploded views of
  assemblies
• Rapid prototyping
• Engineering analysis capabilities (stress,
  thermal, interference fit, tolerance stack-up,
  etc.)
• Reduced manufacturing lead time and cost
• Automated generation and update of line drawings

12
TACOM-ARDEC 3D TDP SYSTEM

• Based on Pro/Engineer Solid Modeling and
  Pro/Intralink Product Data Management toolset.
• Adobe Acrobat (.pdf) of Pro/E drawings will still
  be document of record (I.e 2-D Drawings are still
  going to be used).
• Other 3D CAD packages (CATIA, SOLIDWORKS,
  Unigraphics, etc) may be used in the future.

13
3D Technical Data Package (TDP) CD-ROMs

• 2 CDs are provided with each 3D TDP request
• The information on these CDs is presented in 6
  formats which are
• Adobe Acrobat Portable Document Format (PDF)
  files
• JEDMICS .C4 Raster Images (contractual TDP)
• Pro/Engineer Native 2-Dimensional line drawings
• Pro/Engineer Native Solid Models
• Standard Format for the Exchange of Product Data
  (STEP) format representation of solid models
• Virtual Reality Markup Language (VRML)
  representation of solid models
• Technical Data Package List (TDPL) and Read-me
  files are also provided on each CD

(contractual TDP)
First CD
Second CD
14
How this affects you.

• End item and spare parts manufacturers can take
  advantage of 3D to reduce manufacturing lead time
  and cost.
• RD contractors may be asked to provide Tech data
  in 3D Solid Model Format.
• Interface issues become easier to solve as more
  equipment is defined by 3D solids.

15
Items Converted to 3D

• M9 Pistol
• M16 Series Rifles
• M4 Series Carbines
• M203 Grenade Launcher
• Mk19 Grenade Machine Gun
• Hydra-70 Warhead
• 40mm M781 Training Round

16
For more information contact

• Jeff Windham 309-782-8162
• Windhamj_at_ria.army.mil
• http//w4.pica.army.mil/ardec-ri/tacom_3d.htm
