Title: EEPROM Workshop


1

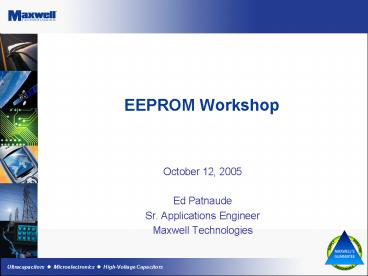

EEPROM Workshop
  • October 12, 2005
  • Ed Patnaude
  • Sr. Applications Engineer
  • Maxwell Technologies

2
EEPROM Topics
  • EEPROM Technology
  • Reliability
  • Maxwells Self Defined Screening Flow
  • Flight Heritage
  • Known Failures
  • Data Retention/Endurance/Radiation Effects
  • Design Considerations
  • Summary

3
EEPROM Technology
  • Maxwells EEPROM product family incorporates the
    Hitachi 58C1001 one megabit EEPROM die.
  • The EEPROM is an 0.8 micron CMOS process using
    Metal-Nitrate-Oxide-Semiconductor (MNOS)
    transistors.
  • The non-volatility of the device is achieved with
    a widely used technology The Floating Gate.

4
Reliability
  • Life Test Maxwell has life tested over 750
    devices, since 1996, and have had 0 failures.
  • Data Retention Screening - Since February 2003
    Maxwell has tested over 8000 device and has had
    only four failures. No devices have been returned
    to Maxwell with data retention issues that have
    received data retention testing.
  • Endurance Testing Since 1996 Maxwell has
    endurance tested over 100 EEPROM devices to
    greater than 10,000 Erase/Write cycles with 0
    failures.
  • Radiation Testing Every EEPROM die lot is TID
    tested to ensure the devices meet specification.
    SEL testing shows no latch-up at 125C to gt 85
    Mev/mg/cm2.

5
Reliability Test Spring 2005
  • Ten 1 Megabit EEPROM were subjected to combined
    Endurance, Data Retention and TID testing.
  • The test was divided into four test levels.
  • At each level the parts received
  • 5000 erase/write endurance cycles with
    checkerboard pattern followed by an inverse
    checkerboard pattern
  • Two 72 hour data retention test ( one with a
    checkerboard pattern and one with the inverse).
  • 10 krads(Si) irradiation using Co60 Source.
  • At 40krads(Si), 20,000 Endurance Cycles and eight
    72 hour Data Retention test the 10 devices
    remained within specification.
  • The parts were then subjected to a 1000 hour life
    test. Final electrical testing shows the EEPROMs
    still within specification.

6
EEPROM Measured Design Margin
Pre radiation Test Data
(Specification -Mean)/Standard Deviation (s) is a
measure of the design margin How much margin
exists between measured performance and specified
performance?
EEPROM has very conservative specifications!
7
The Maxwell Guarantee
  • Maxwell guarantees that the EEPROM will retain
    programmed data, powered or un-powered, for
    greater than ten year at 55?C and below.
  • A 2000 hour data retention test, using 90 parts,
    had no failures. This indicates the EEPROMs are
    capable of retaining data for over 300 years.
  • Maxwell guarantees that the EEPROM will endure
    10,000 Erase/Write cycles, without degradation,
    when programmed in the page mode.
  • Devices are routinely endurance tested to gt
    20,000 cycles. To-date there have been no
    endurance failures, even to 40,000 cycles.
  • Maxwell guarantees that the EEPROM can be
    irradiated for the life of the application, at
    the die level, and remain within specification.
  • Radiation testing to gt43 krads(Si)

8
Maxwells Self Defined Screening Flow
9
Flight Heritage
RAD6000 RAD750
10
Identified EEPROM Failures
Source - Independent Team Review
  • Only one reported flight failure, all other
    failures found during board test.
  • There was very little details made available.
  • All failures could not be verified.

11
EEPROMs returned to Maxwell
12
Analysis of Failures
  • All identified failures fall into to three
    categories 1) programming failures, 2) data
    retention failures, 3) temperature related
    failures.
  • Per Maxwell Technologies Product Advisory
    1008539 a programming error which allowed
    devices with un-programmable bytes to escape
    screening has been corrected.
  • Since October 2004 all Maxwell EEPROMs receive a
    72 Hour data retention screen.
  • It is unknown what screening the devices that had
    temperature related failure received. All Class
    I and Flight Class Devices, from Maxwell receive
    55, 25 and 125C testing.

13
Data Retention
  • Data retention is a measure of the period of time
    a non-volatile memory can retain programmed data.
  • Under normal operating conditions Maxwells
    EEPROM will retain data for greater than ten
    years.
  • Maxwell Technologies EEPROM utilize a floating
    gate memory cell, in which the gate is charged
    and discharged to store logic 1s and 0s. Over
    time the charge will leak off through conductive
    paths made up of impurities in the silicon.
  • Increase in temperature accelerates the leakage.
    As the cell approaches failure, access time
    begins to slow.

14
Access Time Reduction
A Normally Operating Data Bit Prior to
Cell Leakage
Known Bad Part
15
Access Time Reduction
A Weak Bit Just Beginning to Fail 7 Hrs at
150C and 15 Hrs Room Temp
Known Bad Part
16
Access Time Reduction
A Failed Data Bit 7
hours 150C Bake and 18 Hours at Room Temp
Known Bad Part
17
Maxwells Data Retention Screen
  • The data retention screening test is performed
    after the devices have completed all electrical
    and mechanical screening.
  • Devices are programmed with a checkerboard
    pattern. The pattern is verified and software
    protection is enabled.
  • The devices are placed in a 150?C oven,
    un-powered, for 72 hours.
  • Upon completion of the 72 hour bake, the
    patterns are verified and those devices failing
    pattern verification are removed form the lot.
  • Prior to shipping devices are programmed with all
    0s and software protection is disabled.

18
Data Retention
  • Test sequence
  • Programmed with 55AA pattern,
  • Memory protection enabled, then
  • Placed unbiased into oven _at_ 150 ºC for 72 hours.
  • Post burn in perform pattern verification test
  • Test simulates time with Temperature using the
    Arrhenius equation
  • AF exp (AE / k)1/t1-1/t2
  • AF acceleration factor, AE activation
    energy, k Boltzmann's constant (8.6E-5 eV/k )
  • AE1.1eV (from Mfg) T1 55 ºC , T2 150 ºC
  • AF 6206 50 years
  • Production Screening
  • 8741 devices tested only 4 failures
  • All failed devices removed from production lots
  • Post Radiation No Failures!

19
Data Retention with TID
Test Type of Parts of Failures Radiation Level (krad(Si)) Fit Rate,1 Mean Time between Failures(years)
Unscreened 8741 4 0 1.024 111,450
Production screened 8737 0 0 lt0.26 gt445,600
TID test 35 0 40 lt62 gt1,836
1 FIT rate is defined as the expected number of
component failures per 109 (ten to the ninth
power, or 1,000,000,000) hours. The FIT rate can
be converted to the MTBF (Mean Time Between
Failures) in hours as MTBF 109/FIT.
Data Retention not effected by radiation - No
data retention failures after irradiation!
20
EEPROM Endurance
  • Each memory cell, in the EEPROM, can be
    programmed up to 10,000 times when using the page
    mode operation.
  • Maxwell has performed endurance testing in which
    the EEPROMs were written in excess of 40,000
    times, after irradiation, with no failures.

21
Endurance Test
Test Description of Parts Erase/Write Cycles of Failures Radiation Level (krad(Si))
Post production 8737 25 0 0
Endurance 10 10,000 0 0
Endurance radiation 10 10,000 0 40
2x Endurance radiation 10 20,000 0 40
  • Specification - 10,000 erase/write cycles
  • Tested to 2x Specification 40 krad(Si)
  • No failures!

Conclusion TID does not reduce endurance!
22
Radiation Performance of the EEPROM
  • Maxwell Technologies' patented RAD-PAK
    packaging technology
  • incorporates radiation shielding in the
    microcircuit package.
  • Total Dose Hardness gt 100 krads(Si)
  • SEL gt 120 MeV/mg/cm2
  • SEU gt 90 MeVmg/cm2 ( Read Mode)
  • SEU gt 18 MeV/mg/cm2 ( Write Mode)

23
Design Considerations
  • Software Protection
  • Proper implementation of the RESET Pin
  • Byte vs. Page Programming
  • Proper Power Cycling
  • Error Detection and Correction
  • Power Supervisory Circuitry

24
Software Data Protection
  • Software Data Protection locks the memory
    preventing unintentional erase/writes from
    occurring.
  • Maxwells EEPROMs implement Software Data
    Protection via the JEDEC standard algorithm.
  • Software Data Protection will only protect the
    memory contents when the supply voltage is within
    the normal operating range.

25
Hardware Protection
Maxwells EEPROMs have a RESET or Write Protect
input. When set active (LOW), all erase/writes
operations are blocked.
26
Proper Power Cycling
  • Allow Vcc to reach proper operating level before
    initiating any Reads or Writes to the EEPROM.
  • Enable the EEPROM Hardware Write Protection, or
    Reset, prior to power down.
  • Do not remove power while a write cycle is in
    process.

27
Byte vs. Page Programming
  • The EEPROM can program from 1 to 128 bytes in one
    write cycle.
  • The bytes that are written, must all be located
    in one page.
  • There are 1024 pages in a 1 Megabit EEPROM
  • Each page of 128 bytes is further sub-divided
    into 16 sub-pages, each containing 8 bytes.
  • The 8 byte sub-page is the smallest unit that
    can be written to.
  • When a single byte is written the other seven
    bytes contained in the sub-page are copied and
    re-written.
  • When operationing the Byte programming mode,
    endurance is reduced to 1250 write cycles due to
    the minimum programming unit.

28
Error Detection and Correction
  • When the architecture allows, the simple use of
    Parity Bits can detect single bit errors.
  • A Checksum is useful when determining when data
    corruption has occurred in the device.
  • Error Correction Codes can restore corrupted
    memory locations. Two examples are Hamming Code
    and Reed-Solomon.

29
Power Supervisory Circuitry
Monitor supply voltages and provide a RESET
signal when the voltage drops below a
pre-described level.
30
Conclusion
  • Die are packaged in Maxwells RAD-PAK package
  • 100 wafer lot testing for TID
  • Each customer requirement is analyzed and
    assigned a die lot based on actual data to meet
    requirement with margin.
  • 100 production screening to eliminate any data
    retention failures
  • TID data retention tests showed no influence of
    TID on data retention
  • Multiple endurance tests above specification
    (10,000 write cycles) and with TID showed no
    failures,
  • Part exceeds specification even after 40 krad(Si)
    irradiation 20,000 write cycles
  • Tested for TID, Data retention and Endurance
  • EEPROM is conservatively specified high design
    margins
  • No data retention degradation due to TID
  • No endurance degradation due to TID
  • Performance within specification at 43 krads(Si)
