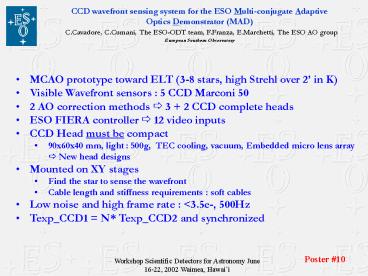

CCD wavefront sensing system for the ESO
Multi-conjugate Adaptive Optics Demonstrator
(MAD) C.Cavadore, C.Cumani, The ESO-ODT team,
F.Franza, E.Marchetti, The ESO AO group European
Southern Observatory
  • MCAO prototype toward ELT (3-8 stars, high Strehl
    over 2 in K)
  • Visible Wavefront sensors 5 CCD Marconi 50
  • 2 AO correction methods ? 3 2 CCD complete
    heads
  • ESO FIERA controller ? 12 video inputs
  • CCD Head must be compact
  • 90x60x40 mm, light 500g, TEC cooling, vacuum,
    Embedded micro lens array ? New head designs
  • Mounted on XY stages
  • Find the star to sense the wavefront
  • Cable length and stiffness requirements soft
    cables
  • Low noise and high frame rate lt3.5e-, 500Hz
  • Texp_CCD1 N Texp_CCD2 and synchronized

Poster 10
2
CCD wavefront sensing system for the ESO
Multi-conjugate Adaptive Optics Demonstrator
(MAD)
Micro lens array
2 field of view
Pickup mirror
ESO FIERA system
XY stage
Soft CCD cables
200 mm
Head
Opto-mechanical setup Shack Hartmann WFS
AO Marconi CCD50 4 ports/CCD used 24 mm pixels
