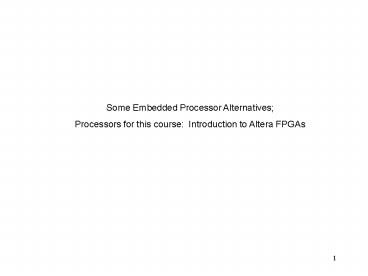

Some Embedded Processor Alternatives;

1
Some Embedded Processor Alternatives Processors
for this course Introduction to Altera FPGAs
2
Processor Examples Harvard architecture --PIC
processor family von Neumann
architecture --simple processor --mP 3
processor (Hamblen et al., chapter 9) --MIPS
processor (Hamblen et al., chapter 14) --NIOS II
processor core (Hamblen et al., chapters 15-17)
Control
ALU
Instruc.
I/O
Data
3

• PIC processor family processor is fixed,
  developer programs it
• Reference http//en.wikipedia.org/wiki/PIC_micro
  controller
• PIC peripheral interface controller
• Originally (1975) for offloading I/O functions
  from a CPU
• Harvard architecture data and instructions
  (code) are stored separatelythus a data item
  and an instruction do not need to be the same
  length
• Newer versions have a stack
• One accumulator (referred to as W), but memory
  is usually referred to as a register file
• Some versions allow a type of indirect
  addressing
• Usually referred to as a RISC machine may have
  up to 70 instructions
• May be able to access external memory (newer
  versions)
• Many development tools languages available

Data
Code (Instructions)
4
VGA port
UP3 BOARD
parallel port
PS2 port
Altera Cyclone chip
USB port
SRAM
serial port
FLASH
invalid input voltage LED
on/off switch
user-definable pushbuttons
user-definable LEDs

• power

3.3V supply LED
user-definable DIP switches
5V supply LED
global reset
Some processor architectures
LC Display
http//users.ece.gatech.edu/hamblen/UP3/
and http//users.ece.gatech.edu/hamblen/UP3/UP32
0Reference20Manual.pdf
5

• simple processor
• Von Neumann architecture
• Only one general purpose register (accumulator)
• Supports direct, indirect, and indexed addressing
• Small instruction set, 2 formats (000-110 or 111)
• Primitive I/O (via accumulator)
• No built-in stack / stack pointer
• No ability to do virtual storage

M
MA
IR
AC
CF
MD
IA
IB
PC
ABUS
BBUS
ALU
ALU OUTPUT
OBUS
M memory MA memory address register MD memory
data register IR instruction register AC
accumulator CF carry flag IA, IB index
registers PC program counter
6

• mP 3 processor (Hamblen et al., chapter 9)
• Similar to simple processorvon Neumann
  architecture, 1 accumulator
• Implementation uses lt 1 of Altera Cyclone device
  logic
• Memory and I/O are now each components on the
  data bus all info goes through MDR (fig. 9-1)
• 8-bit instructions, 8-bit data in 1 16-bit word,
  several formats
• Only direct addressing
• Only 5 instructions given (load, store, add,
  jump, jneg)can these support general-purpose
  computing?
• No stack pointer
• Can it do virtual storage?

7

• MIPS processor (Hamblen et al., chapter 14)
• Widely-used RISC architecture, 1980s
• 32-bit instructions, 3 formats
• 32 general-purpose registers
• 1-cycle fetch/decode/execute (employs pipelining)

8

• NIOS II processor core (Hamblen et al., chapters
  15-17)
• Hardware (IP) coreSOPC example C/C compiler
• 32-bit datapath
• 1-6 pipeline stages
• 32 general purpose registers, 6 special-purpose
• Optional instruction cache
• Optional multiply/divide instructions
• Hardware floating point unit can be added
• Hardware can be customized
• Development environment includes
• --C/C compiler
• --Ability to customize library for the
  peripheral
• devices you need

9
More about Altera devices and tools Generic
FPGA architecture
GLOBAL BUS
FPGA (EXAMPLE)
LOCAL BUS
RAM BLOCK
SINGLE FPGA CELL
10
(No Transcript)
11

• Example using a lookup table to describe a gate
  network
• f(A,B,C) A'B'C A'BC' A'BC ABC
• (001) (010) (011) (111)
• Inputs ABC out
• 000 0
• 001 1
• 010 1
• 011 1
• 100 0
• 101 0
• 110 0
• 111 1

12
LE (Logic Element)
LAB (Logic Array Block)
RAM Block
13

• Device families
• Example Cyclonewe will use EP1C6 or EP1C2
• features
• logic elements (LEs)
• RAM blocks
• Global clock Phase locked loops for clock
  configuration
• gt 170 I/O pins
• Cyclone LEfigure 3.7
• Cyclone LABs and interconnects figure 3.9
• (These references and those that follow are to
  the reference by Hamblen et al.)

14
"silicon compilation" basic idea restrict
possible physical configurations sacrifice area
/ performance for "regularity" of design use
regular physical structures to enable AUTOMATION
of layout All CAD tools will sacrifice some
area/performance for automation and the ability
to do "large" designs, just as software compilers
sacrifice some efficiency for the ability to use
a high-level language instead of assembly
language designer productivity will increase
substantially, however
SW Programming
Write Program (HLL)
Link to Libraries
Load/ Execute
Compile
Silicon Programming
Write Program (HDL/Scm)
Program Device/ Execute
Com-pile/ Link
Fit
Simu-late
15
Altera Project Flow (Rapid Prototyping) 1.
(Hierarchical) DESIGN design entry schematic
(mydesign.gdf) Verilog (mydesign.v) other
formats (VHDL, AHDL, EDIF, ) IP
cores 2.Compilation translation, optimization,
synthesis (netlist) device fitting (placement
and routing) Floorplan editorfigure 1.23 Report
generation 3.Execution Timing
analysis simulation (functional / timing) device
programming, hardware verification information on
power usage
16
(No Transcript)
17
VGA port
UP3 BOARD
parallel port
PS2 port
Cyclone chip
USB port
SRAM
serial port
FLASH
invalid input voltage LED
on/off switch
user-definable pushbuttons
user-definable LEDs

• power

3.3V supply LED
user-definable DIP switches
5V supply LED
global reset
LC Display
http//users.ece.gatech.edu/hamblen/UP3/
and http//users.ece.gatech.edu/hamblen/UP3/UP32
0Reference20Manual.pdf
18

• Technology SRAM
• General description
• http//en.wikipedia.org/wiki/Static_Random_Access_
  Memory
• General information on programmable devices
• http//www.tutorial-reports.com/computer-science/f
  pga/user-programmability.php

19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
Functional Testing One more useful Altera
option note that the devices we have access to
will allow us to produce fairly "large" designs.
To adequately test these designs, we will need to
input files of test vectors rather than relying
solely on inputting waveforms (and we will need
to do HIERARCHICAL design AND testing) A test
vector file (myfile.vec) can be created in the
text editor. Here is an example file to test a
module with inputs A, B, RESET, and CLOCK and
outputs X,Y,Z. A X B
Y RESET Z CLOCK
23
INPUTS RESET PATTERN 0gt 1 100gt 0 OUTPUTS
X Y Z PATTERN check output at every Clock
pulse --these are expected values X X X 0 0
0 relative time vector values 0 0
0 1 0 0 0 0 1 0 0 1 0 1 1 0 1 1 1 1
1 1 1 1 1 1 1 1 1 1
test vector file for above module units
default to ns START 0 time to start
simulation STOP 1000 time to end (in
ns) INTERVAL 100 INPUTS CLOCK PATTERN 0 1
pattern of clock values
CLOCK ticks every 100 ns
INPUTS A B PATTERN test every
combination of A and
B 0gt 0 0 220gt 1 0 320gt 1 1
change A,B at given times 570gt 0 1 720gt 1 1
24
using the .vec file open the simulator then on
the "File" menu choose inputs/outputs then
choose your .vec file you must do this BEFORE
opening a .scf file Note results of the
simulation cannot be saved as a .vec file. To
save your results, save them as either a waveform
(.vwf) or a table output (.tbl)
file. Alternative compile separately in
Verilog on Sun workstations, compiler, use a
testbench then import into Altera environment
this is the standard HDl methodology (handout on
this will be provided)
25

• Useful Altera functions
• The UP3 core library
• input and output for the Altera board
• random number generation

26
(No Transcript)
27
UP3 functions an IP (intellectual property)
core described in chapter 5 of Hamblen et al.
can be used with schematics, Verilog, or VHDL 8
modules--perform I/O housekeeping functions
modules must be visible in your path or
included in your design in some way (directly,
package, etc.)
28
output
input
29
VGA port
UP3 BOARD
parallel port
PS2 port
Cyclone chip
USB port
SRAM
serial port
FLASH
invalid input voltage LED
on/off switch
user-definable pushbuttons
user-definable LEDs

• power

3.3V supply LED
user-definable DIP switches
5V supply LED
global reset
LC Display
http//users.ece.gatech.edu/hamblen/UP3/
and http//users.ece.gatech.edu/hamblen/UP3/UP32
0Reference20Manual.pdf
30
COMPONENT LCD_Display PORT (Hex_Display_Data
IN STD_LOGIC_VECTOR (Num_Hex_Digists4)-1
DOWNTO 0 reset, clock_48MHz IN
std_logic LCD_RS, LCD_E OUT STD_LOGIC
DATA_BUS INOUT STD_LOGIC_VECTOR (7 DOWNTO
0) END COMPONENT input 4 bits hex digit
signal values to convert to ASCII hex digits and
send to LED display (note Appendix D contains
ASCII to hex table) Num_Hex_Digits is a Generic
parameter which can be given a value in a VHDL
file or in a schematic (16 characters, 2 lines
available) Outputs PIN (important!) LCD_RS 1
08 LCD_E 50 LCD_RW 73 DATA_BUS (7 DOWNTO
0) 113, 106, 104, 102, 100, 98, 96, 94
31
COMPONENT Debounce PORT (pb, clk_100HzIN
STD_LOGIC pb_debouncedOUT STD_LOGIC) END
COMPONENT pb is the input from a pushbutton
(see I/O pins, chapter 2) since pushbuttons have
a mechanical bounce, this component samples the
input over several clock cycles and filters out
the bounces it will register the pushbutton
input only when several sequential samples of the
input agree the clock input is used by the
bounce filter (see example below) when push is
registered, output goes low it remains low until
button is released
32
COMPONENT OnePulse PORT (PB_debounced, clockIN
STD_LOGIC PB_single_pulseOUT STD_LOGIC) END
COMPONENT after the push button signal is
debounced, this component can be used to ensure
that the output read from the pushbutton is high
for only one clock cycle, no matter how long the
pushbutton is held down this is useful for
building finite state machines--an edge-triggered
flip-flop can be used to build a state and each
input will be active for only one clock
cycle the clock input is the clock signal
being used to drive the state machine
33
COMPONENT Clk_Div PORT ( clock_48MHz IN
STD_LOGIC clock_1MHz, clock_100KHz,
clock_10KHz, clock_1KHz, clock_100Hz,
clock_10Hz, clock_1Hz OUT STD_LOGIC) END
COMPONENT the input is from the (48MHz)
on-board clock (pin 29 for the Cyclone chip) JP3
jumper must be set to select the 48MHz USBthis
the default setting the outputs are clock
signals of various frequencies which can be used
in designs Note actual frequency will be
(listed frequency)(1.007 /- .005)
34
Example
pushbutton
fsm
Debounce
OnePulse
Clock (pin 29)
Clock_100Hz
Clk_Div
Clock_1MHz
35
COMPONENT Mouse PORT ( clock_48Mhz,reset IN
STD_LOGIC mouse_data, mouse_clkINOUT
STD_LOGIC left_button,right_button OUT
STD_LOGIC mouse_cursor_row,mouse_cursor_colu
mn OUT STD_LOGIC_VECTOR(9 DOWNTO 0) END
COMPONENT the input is from the (48MHz)
on-board clock (pin 29 for the Cyclone
chip) mouse_data is pin 13, mouse_clk is pin
12 BIDIRECTIONAL (also used for
keyboard) cursor outputs give postion in 640 x
480 pixel screen (VGA) cursor is initialized to
the middle of the screen button outputs are high
when the corresponding button is pushed
36
COMPONENT Keyboard PORT ( keyboard_clk,keyboard_
data, clock_48Mhz, reset, read IN
STD_LOGIC scan_code OUT STD_LOGIC_VECTOR(7
DOWNTO 0) scan_ready OUT STD_LOGIC) END
COMPONENT Reads PS/2 keyboard scan code
converts serial data from keyboard to parallel
clock input is from the (48MHz) on-board clock
(pin 29 for the Cyclone chip) keyboard_data is
pin 13, keyboard_clk is pin 12 INPUTS (also used
for mouse) read clears the scan_ready signal
reset clears flip-flops for serial-to-parallel
conversion scan_code table of values in Table
11.3 --make code key is hit break code
key is released ex A make 1C, break
F01C shift make 12, break F012 (if key
is held down, several makes will be sent before a
break) scan_ready goes high when new scan code
is sent and can be used to make sure each scan
code is read only once
37
COMPONENT VGA_Sync PORT (clock_48MHz, red,
green, blue IN STD_LOGIC red_out,
green_out, blue_out, horiz_sync_out,
vert_sync_out OUT STD_LOGIC
pixel_row, pixel_column OUT STD_LOGIC_VECTOR(9
DOWNTO 0)) END COMPONENT clock_48MHz signal
must come from pin 29 (Cyclone chip) user logic
generates the input color (red, green,
blue) Cyclone chip horiz_sync --gt pin 226,
vert_sync --gt pin 227 red_out --gt pin 228,
green_out --gt pin 122, blue_out --gt pin
170 pixel_row and pixel_column give the pixel
address how many colors are available? how many
pixels? (dithering one color on odd cycles,
different on even ? twice as many colors
example pattern sent (even/odd cycles)
pattern observed
38
COMPONENT Char_ROM PORT (clock IN STD-logic
character_address IN STD_LOGIC_VECTOR (5
DOWNTO 0) font_row, font_col IN
STD_LOGIC_VECTOR (2 DOWNTO 0)
row_mux_output OUT STD_LOGIC) END
COMPONENT generates text for a video
display--each character requires an 8 x 8 pixel
pattern (see codes, table 9.1--a memory
initialization file, tcgrom.mif, is provided the
font data can be stored in one M4K memory
block) character_address addresses the character
to be displayed font_row and font_col step
through the 64 pixels (8x8) needed to display one
character Clock loads the address register and
should be tied to the video pixel_clock row_mux_o
utput is the pixel value to be output for this
character at this position and can be used to
generate the correct RGB pixel color
39
How does output occur (examples chapter 10)
monitor contains CRT (cathode ray tube) screen
consists of pixels, 640 in a row and 480 in a
column (VGA format) refresh rate how quickly
these pixels are scanned standard
rate is 60 times / second (60 Hz) (human eye can
detect flicker below 30Hz) if there are 640 X
480 pixels, with a 60Hz refresh rate, how much
time is available to scan one pixel? What clock
speed is therefore required? What is the onboard
clock speed? (note UP3 has PLL which can be
used to obtain faster refresh rates) Sync
signals tell when to start a new row or column
40
random number generation (Appendix
A) actually generates pseudorandom
numbers Q what is the difference? Method
example n 32--will give 32-bit pseudorandom
sequence of bits from table, read XOR from bits
32,22,2,1 (bits are 32--1, not 31--0) build a
32-bit shift register that shifts left one bit
per cycle next bit to be input into lsb should
be the XOR of bits 32,22,2,1 this will generate
a sequence in pseudorandom order initial value
in the register is the seed 0 should not be
used (why?)
41
Example n 3--table gives bits
3,2 step pattern (bit 3) xor (bit
2) 0 111 0 1 110 0 2 100 1 3 001 0 4 010 1 5 101
1 6 011 1 7 111 0---from here, the sequence will
repeat we have a sequence of the numbers 1-7
7,6,4,1,2,5,3 this is the longest nonrepeating
sequence we can have order will always be the
same, seed only determines where we start
42
How good are the random numbers
generated? Reference Shruthi Narayanan, M.S.
2005, ATI Technologies Hardware implementation of
genetic algorithm modules for intelligent
systems
Random numbers generated by one shift register
Random numbers generated by multiple shift
registers
