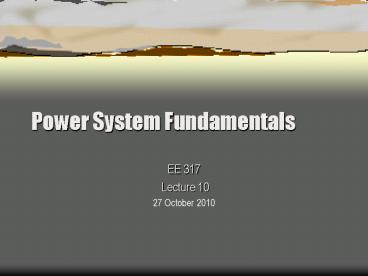

Title: Power System Fundamentals


1
Power System Fundamentals
  • EE 317
  • Lecture 10
  • 27 October 2010

2
Distribution System Overview
  • Role of the Substation
  • What is a Bus?
  • What is a Feeder?
  • What does Radial mean?
  • What are the methods used by engineers to
    increase reliability in the distribution system?

3
Bahria Town Grid Station
4
Roles of a Substation
  • What are they?

5
Voltage transformation
  • Why?
  • Typical levels 230,138,69, 34.5 or 23 kV in
  • And 12kV or 4 kV out

6
System Protection
  • Substation Breakers what do they protect?
  • The Public
  • Substation Transformers
  • Switchgear

7
System Reliability
  • Isolate Faults trip a feeder or a bus as opposed
    to an entire substation

8
TYPICAL Sub Station
9
Elements of sub station
  • Substations generally have switching, protection
    and control equipment and one or more
    transformers.
  • In a large substation,circuit breakers are used
    to interrupt any short-circuits or overload
    currents that may occur on the network.
  • Smaller distribution stations may use recloser
    circuit breakers or fuses for protection of
    distribution circuits.
  • Substations do not usually have generators,
    although a power plant may have a substation
    nearby. Other devices such as capacitors and
    voltage regulators may also be located at a
    substation.

10
Functional Types of sub stations
  • Transmission substation
  • A transmission substation connects two or more
    transmission lines
  • Distribution substation
  • A distribution substation transfers power from
    the transmission system to the distribution
    system of an area
  • Collector sub station
  • In distributed generation projects such as a wind
    farm, a collector substation may be required
  • Switching sub station
  • A switching substation is a substation which does
    not contain transformers and operates only at a
    single voltage level.

11
Layout of a Typical Substation
  • Hi-voltage Breaker
  • Switchgear
  • Station Transformer
  • Switchgear
  • Bus
  • Feeder Switchgear (and/or breakers)
  • Single primary feeders
  • Multiple primary feeders

12
High Voltage Breaker
  • A circuit breaker is an automatically-operated ele
    ctrical switch designed to protect an electrical
    circuit from damage caused by overload or short
    circuit. Its basic function is to detect a fault
    condition and, by interrupting continuity, to
    immediately discontinue electrical flow. Unlike
    a fuse, which operates once and then has to be
    replaced, a circuit breaker can be reset (either
    manually or automatically) to resume normal
    operation. Circuit breakers are made in varying
    sizes, from small devices that protect an
    individual household appliance up to
    large switchgear designed to protect high voltage
    circuits feeding an entire city.

13
Switch Gears
  • Switchgear for low voltages may be entirely
    enclosed within a building. For transmission
    levels of voltage (high voltages over 66 kV),
    often switchgear will be mounted outdoors and
    insulated by air, though this requires a large
    amount of space. Gas insulated switchgear used
    for transmission-level voltages saves space,
    although it has a higher equipment cost. Oil
    insulated switchgear generally takes up more
    space, and is being phased out to eliminate the
    risk of an oil spill.

14
Station Transformers
  • Station Transformers come in varying sizes,
    depending on site requirements, but are normally
    connected to the network through overhead
    connections which results in exposed HV or LV
    bushings that necessitate a fence or other
    protective enclosure for personnel safety and
    equipment security.

15
Primary Radial Feeders
  • Layout
  • 3 ? to any customer locations requiring it as
    well as to other key points to maximize
    reliability
  • Sectionalizer locations
  • Feeder Tie locations
  • Single phase to all other locations (balancing
    load connected to each phase)

16
Sectionalizing Switches
  • Switches WITHIN a feeder service area
  • Isolate Faults
  • Allow majority of feeder customers served to be
    put back into service during an extended repair

17
Feeder Tie Switches
  • Switches BETWEEN two different feeders to
    interconnect them
  • Allow an adjacent feeder region to be served by a
    feeder that is still in service when a substation
    problem or feeder fault which can be isolated
    from the substation side has disrupted service on
    an entire feeder

18
Distribution Service
  • Primary Feeder serves Distribution pots (or
    transformers)
  • Normally Fused
  • Switchable Transformer
  • Serves Secondary circuit
  • distribution voltage 120/240 V
  • Houses/streetlights connected to secondary
  • Service Entrance Cable to Home/Meter

19
Distribution Transformers
  • Because of connection to overhead, open wire
    feeders these transformers are often exposed to
    lightning strikes
  • To minimize insulation breakdown and transformer
    failure lightning arrestors are added

20
Distribution Equipment
  • Lightning arrestor
  • Bushing Insert
  • 11-kV Insulator
  • Fused Cutout
  • Terminating Dead-End
  • 66- kV insulator
  • 3-? 0.4 kV spacer
  • Secondary capacitor
