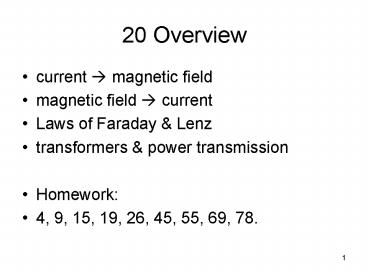

20 Overview

1
20 Overview
0

• current ? magnetic field
• magnetic field ? current
• Laws of Faraday Lenz
• transformers power transmission
• Homework
• 4, 9, 15, 19, 26, 45, 55, 69, 78.

2
Motional EMF
0

• magnetic force on free charges creates voltage
  across rod
• qE qvB
• E vB
• EL vBL
• emf vBL

3
0
A (d 1m) bar moves (v 20 m/s) as shown. (B
0.25 T). Calculate the emf and the current in
the resistor (R 5.0 O).
4
Magnetic Flux

• Motional emf works for straight wires, but not
  for loops
• Solution Magnetic Flux Concept
• Faradays Law Voltage induced in loop equals the
  _______ the Magnetic Flux
• ______________.
• Magnetic Flux is a field x area product
• Unit Tm2

5
Magnetic Flux Concept

• Method Draw field lines loop
• Flux is the lines passing thru loop
• Draw the change
• Voltage rate of change in lines thru loop

6
(No Transcript)
7
Calculating B-Flux
Ex. B 1.0T, Area 10. sq.m., angle 30
degrees.
8
Faradays Law
0
(1 Tm2 /s 1 volt)
N is number of turns of wire on loop. Ex. 50
turns of wire has
9
What motions produce a change in flux thru the
single loop? If the single loop is moved to the
right, what is the direction of the current
induced in it?
10
Which of the following can produce a changing
magnetic flux?

1. B change
2. Area change
3. angle change
4. none of these
5. all of these

11
Lenzs Law
0

• induced voltage opposes the change which produced
  it
• Ex A magnet moving in or out of a coil feels a
  magnetic force which opposes the motion of the
  magnet
• Ex. Lenz Law Tube

12
0
Ex. A 1.0 sq.m. loop has 60 turns. Its normal is
parallel to a uniform B-field of strength 0.10 T.
It is rotated so its normal is perpendicular to B
in a time of 1.0s. Calculate the voltage induced.
13
Applications of Faradays Law
0

• Pick up coils
• Generators

14
Alternating Current (AC) Generators
0

• Coil rotates at ? ?/t (? ?t)
• Rotation ? flux change
• Voltage NBA?sin(?t)

15
a) What must be the magnetic field strength so
that a generator consisting of 1000 turns of a
coil of radius 25 cm produces a peak output of
160 V when turned at a frequency of 60 Hz? b)
Sketch a graph of the output of the generator.
0
16
Transformers

• Flux ?FB/?t _________ for each coil
• By Faradays Law
• Vp Np ?FB/?t and
• Vs Ns ?FB/?t

17
Power and Current in Transformers

• Conservation of Energy implies power at primary
  is the same as power at secondary
• ______________
• Ex A transformer increases voltage by a factor
  of ten, the output (secondary) current decreases
  by a factor of ten

18
Electromagnetic Waves

• Faraday time varying B produces time varying E
• Maxwell time varying E produces time varying B
• i.e. one begets the other self-sustaining,
  time-varying EM wave is produced

19
Polarization

• overall orientation of electric field of light
• simplest cases unpolarized (radial), plane
  polarized (linear)

20
Polarizing Filters

• Polarizing material allows the passage of only
  one direction of E
• Malus Law

21
Properties of Electromagnetic Waves

• travel in vacuum
• transverse waves
• speed in a vacuum governed by magnetic and
  electric constants of free space
• c fl 299,792,458 m/s (3.00 x 108 m/s)

22
Spectrum by Wavelength

• microwaves cm range waves strongly absorbed by
  water. cold spots separated by half-wavelength
• infrared (IR) mm to um waves also strongly
  absorbed by water
• radio waves wavelengths 1 to 500 meters
• Ex. f 100 MHz. What is its wavelength?
• visible 400 to 700 nm (400 is violet, 700 is
  red)
• ultraviolet (UV) 0.1 to 100 nm, causes sunburn
• x-ray 0.01 to 0.001 nm waves can pass through
  10cm of many materials
• gamma-rays lt 0.001 nm waves are even more
  penetrating

23
Standing Waves

• Confined microwaves create a standing wave
• Hot spots are separated by half a wavelength
• Most microwave ovens are around 2400MHz

24
Chapter Summary
0

• moving conductor in a B field gets a motional
  emf.
• Faradays Law emf -DF/Dt
• Lenzs Law energy conservation
• generators motors utilize F ILB, experience
  back emf
• transformers step ac voltages up or down
• EM waves E B oscillation

25
Intensity

• wave intensity in watts/square-meter
• Ex. 5 mW laser is focused to a spot size of
  diameter 1.0 mm.

26
Intensity for Different Types of Waves

• Plane Waves Intensity is constant
• Spherical Waves Intensity falls off as inverse
  square

27
Energy in EM Waves

• E cB
• u e0 E2 (1/µ0)B2
• Intensity S cu ce0E2 (c/µ0)B2

28
Ex. A laser beam has a peak intensity of 150
W/m2. Find the amplitude of the electric and
magnetic fields.

• S cu ce0E2 (c/µ0)B2

29
Eddy Currents

• Current induced in metal due to magnetic fields

30
calculating emf for loops

• summary
• draw magnetic field lines
• count the number of penetrating lines ( that
  pass through the loop) at two (or more) times
• the emf induced is to the change in of
  penetrating lines per second
• penetrating lines magnetic flux

31

• A metallic wire loop is in a uniform magnetic
  field.
• How does the flux change if
• ring moves a little to left or right?
• ring begins to rotate?

32
Producing B and E Fields

• Electrical current creates B
• Changing B field creates a circulating E field.
• This E field creates the circulating currents
  observed in wire loops.

33
Back emf

• rotating coil in motor experiences an induced emf
  opposite to batterys V
• net voltage V back-emf IR
• I current in motor
• R resistance of motor coil
• back-emf speed of coil, therefore is zero when
  motor starts (or freezes)
• current is large when back-emf is small

34
Direct Current (DC) Generators
0

• split ring keeps current flowing in only one
  direction
• output can be smoothed

35
120 V ac is applied across the primary of a step
down transformer with turns ratio 1/50. How does
the power applied at the primary compare to that
at the secondary? (Assume a lossless transformer)

• Reduced by a factor of 50
• Increased by a factor of 50
• It is the same
• Not enough information

36
Application to Power Generation
0

• Higher voltage transmission reduces resistive
  heat loss (I2R).
• Ex. Power transmitted thru 10m long wire which
  has 1 ohm resistance.
• At 6V Current V/R 6V/1ohm 6A
• At 60V Current V/R 60V/1ohm 6A
