Experimental design and statistical analyses of data

1

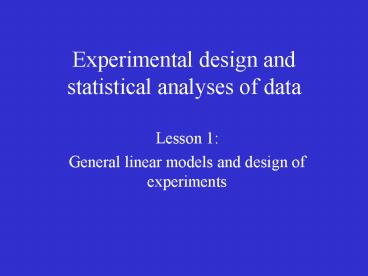

Experimental design and statistical analyses of
data

• Lesson 1
• General linear models and design of experiments

2
Examples of General Linear Models (GLM)
3
Simple linear regression
4
Polynomial regression
Ex   y depth at disappearance x
nitrogen concentration of water
5
Multiple regression
Eks   y depth at disappearance x1
Concentration of N x2 Concentration of P
6
Analysis of variance (ANOVA)
7
Analysis of covariance (ANCOVA)
Ex   y depth at disappearance x1 Blue
disc x2 Green disc x3 Concentration of N
8
Nested analysis of variance
Ex   y depth at disappearance ai effect of
the ith lake ß(i)j effect of the jth
measurement in the ith lake
9
What is not a general linear model?

• y ß0(1ß1x)
• y ß0cos(ß1ß2x)

10
Other topics covered by this course

• Multivariate analysis of variance (MANOVA)
• Repeated measurements
• Logistic regression

11
Experimental designs

• Examples

12
Randomised design

• Effects of p treatments (e.g. drugs) are compared

• Total number of experimental units (persons) is n

• Treatment i is administrated to ni units
• Allocation of treatments among units is random

13
Example of randomized design

• 4 drugs (called A, B, C, and D) are tested (i.e.
  p 4)
• 12 persons are available (i.e. n 12)
• Each treatment is given to 3 persons (i.e. ni 3
  for i 1,2,..,p) (i.e. design is balanced)
• Persons are allocated randomly among treatments

14
Drugs Drugs Drugs Drugs Drugs
A B C D Total
y1A y2A y3A y1B y2B y3B y1C y2C y3C y1D y2D y3D

15
Source Degrees of freedom
Estimate of Treatments ( ) Residuals 1 p - 1 3 n-p 8
Total n 12
16
Randomized block design

• All treatments are allocated to the same
  experimental units
• Treatments are allocated at random

B C B
A B D
D A A
C D C
17
Treatments Treatments Treatments Treatments Treatments Treatments Treatments
Persons A B C D Average
Persons 1
Persons 2
Persons 3
Average
18
Randomized block design
Source Degrees of freedom
Estimate of Blocks (persons) Treatments ( drugs ) Residuals 1 b - 1 2 p-1 3 n-(b-1)(p-1)1 6
Total n 12
19
Double block design (latin-square)
Person Person Person Person Person
Sequence 1 2 3 4
Sequence 1 B D A C
Sequence 2 A C D B
Sequence 3 C A B D
Sequence 4 D B C A
20
Latin-square design
Source Degrees of freedom
Estimate of Rows (sequences) Blocks (persons) Treatments ( drugs ) Residuals 1 a-1 3 b - 1 3 p-1 3 n-3(p-1)1 6
Total n p2 16
21
Factorial designs

• Are used when the combined effects of two or more
  factors are investigated concurrently.
• As an example, assume that factor A is a drug and
  factor B is the way the drug is administrated
• Factor A occurs in three different levels (called
  drug A1, A2 and A3)
• Factor B occurs in four different levels (called
  B1, B2, B3 and B4)

22
Factorial designs
Factor B Factor B Factor B Factor B Factor B Factor B
Factor A B1 B2 B3 B4 Average
Factor A A1 y11 y12 y13 y14
Factor A A2 y21 y22 y23 y24
Factor A A3 y31 y32 y33 y34
Average
No interaction between A and B
23
Factorial experiment with no interaction

• Survival time at 15oC and 50 RH 17 days
• Survival time at 25oC and 50 RH 8 days
• Survival time at 15oC and 80 RH 19 days
• What is the expected survival time at 25oC and
  80 RH?
• An increase in temperature from 15oC to 25oC at
  50 RH decreases survival time by 9 days
• An increase in RH from 50 to 80 at 15oC
  increases survival time by 2 days
• An increase in temperature from 15oC to 25oC and
  an increase in RH from 50 to 80 is expected to
  change survival time by 92 -7 days

24
Factorial experiment with no interaction
25
Factorial experiment with no interaction
26
Factorial experiment with no interaction
27
Factorial experiment with no interaction
28
Factorial experiment with no interaction
29
Factorial experiment with interaction
30
Factorial designs
Factor B Factor B Factor B Factor B Factor B Factor B
Factor A B1 B2 B3 B4 Average
Factor A A1 y11 y12 y13 y14
Factor A A2 y21 y22 y23 y24
Factor A A3 y31 y32 y33 y34
Average
31
Two-way factorial designwith interaction, but
without replication
Source Degrees of freedom
Estimate of Factor A (drug) Factor B (administration) Interactions between A and B Residuals 1 a-1 2 b - 1 3 (a-1)(b-1) 6 n- ab 0
Total n ab 12
32
Two-way factorial designwithout replication
Source Degrees of freedom
Estimate of Factor A (drug) Factor B (administration) Residuals 1 a-1 2 b - 1 3 n- a-b1 6
Total n ab 12
Without replication it is necessary to assume no
interaction between factors!
33
Two-way factorial designwith replications
Source Degrees of freedom
Estimate of Factor A (drug) Factor B (administration) Interactions between A and B Residuals 1 a-1 b - 1 (a-1)(b-1) ab( r-1)
Total n rab
34
Two-way factorial designwith interaction (r 2)
Source Degrees of freedom
Estimate of Factor A (drug) Factor B (administration) Interactions between A and B Residuals 1 a-1 2 b 1 3 (a-1)(b-1) 6 ab( r-1) 12
Total n rab 24
35
Three-way factorial design
36
Three-way factorial design
Source Degrees of freedom
Estimate of Factor A Factor B Factor C Interactions between A and B Interactions between A and C Interactions between B and C Interactions between A, B and C Residuals 1 a-1 2 b 1 5 c-1 3 (a-1)(b-1) 10 (a-1)(c-1) 6 (b-1)(c-1) 15 (a-1)(b-1)(c-1) 30 abc( r-1) 0
Total n rabc 72
37
Why should more than two levels of a factor be
used in a factorial design?
38
Two-levels of a factor
39
Three-levelsfactor qualitative
40
Three-levelsfactor quantitative
41
Why should not many levels of each factor be used
in a factorial design?
42
Because each level of each factor increases the
number of experimental units to be used

• For example, a five factor experiment with four
  levels per factor yields 45 1024 different
  combinations
• If not all combinations are applied in an
  experiment, the design is partially factorial
