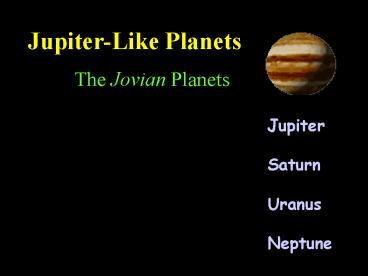

Jupiter-Like Planets

1
Jupiter-Like Planets
The Jovian Planets
Jupiter Saturn Uranus Neptune
2
Appearances
3
Clouds
4
Insides
5
p. 172
6
Jupiter Saturn
Liquid molecular hydrogen/helium
Liquid metallic hydrogen
Rocky core
p. 175
7
p. 175
8
Uranus Neptune
Liquid molecular hydrogen/helium
Slush
Rocky core
p. 175
9
Most Jovians are net radiators . . .
Jupiter 2 Saturn 3 Uranus 1 Neptune 1.5
10
Jovians rotate differentially . . .
? Fluid interior
11
Magnetic Fields
12
Fluid, conducting interiors rapid rotation
? huge magnetic fields
Strange geometry
13
Jovian Magnetospheres
14
Jupiter Saturn Aurorae
15
Atmospheres
16
No solid surfaces! Composition mainly
hydrogen helium some methane ammonia.
Heated mainly from bottom. Rapid rotation
drives high-speed east-west winds, forming
clouds into zones belts. Sustain giant
cyclonic storms - Great Red Spot - Great
Dark Spot
17
Jupiters atmosphere
18
p. 175
19
Great Red Spot . . . Cyclonic Storm
20
Great Red Spot (Jupiter)
21
Red Spot Movie
22
Great Dark Spot (Neptune)
23
Galileo atmospheric probe
- 230 oF
300 oF
24
Blue-green of Uranus Neptune is due to methane
25
Moons
26
Jupiters Family
27
(No Transcript)
28
Io
Recent volcanic deposits
29
Volcanic Plumes
Sulfur deposits
30
Volcano from above
Lava lake?
31
Europa
Icy Surface
32
Water beneath the ice?
Cracks in the Ice
33
Ice Rafts
34
p. 175
35
Ganymede
Craters in icy crust
36
Strange grooved terrain suggestive of
tectonic activity . . .
37
Callisto
The most heavily cratered body in the Solar
System!
38
Valhalla Impact Basin
39
Saturns Moons
Titan
40
Titan
90 nitrogen
41
Cassini mission to Saturn (Arrival 2004)
42
Enceladus
Rhea
Dione

• Densities 1.2 1.4 g/cm3
• Ice rock interiors
• icy surfaces.

43
Some of Saturns minor satellites.
44
Moons of Uranus
Miranda
45
Miranda
Groovy terrain!
46
Neptune 8 moons
Neptune
Triton
47
Triton
Cantaloupe terrain
Nitrogen ice surface
Temp - 390 oF
South polar cap
48
Streaks probably result from nitrogen geysers.
Dark streaks
Old Faithful
49
Clouds in a thin nitrogen atmosphere.
50
Rings
51
RINGS
Consist of particles, each following an orbit
about a planet, like a small moon.
52
Jupiter smoke particles.
53
Saturn chunks of ice icy rock
54
Braids in the F Ring.
55
Shepherd satellites (moons) and F Ring.
56
Ring Spokes.
57
(No Transcript)
58
Uranus Dark chunky ring particles.
59
Neptune Dark chunky ring particles.
