Asynchronous Consensus

1

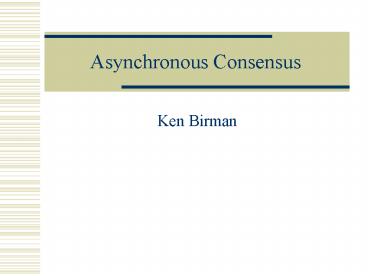

Asynchronous Consensus

• Ken Birman

2
Outline of talk

• Reminder about models
• Asynchronous consensus Impossibility result
• Solution to the problem
• With an oracle that detects failures
• Without oracles, using timeout
• Big issues? Revisit from Byzantine agreement
• Is this model realistic? In what ways is it
  legitimate?
• Should we focus on impossibility, or
  possibility?
• Asynchronous consensus in real world systems

3
Distributed Computing Models

• Recall that we had two models
• To reason about networks and applications we need
  to be precise about the setting in which our
  protocols run
• But real world networks are very complex
• They can drop packets, or reorder them
• Intruders might be able to intercept and modify
  data
• Timing is totally unpredictable

4
Asynchronous network model

• Asynchronous because we lack clocks
• Network can arbitrarily delay a message
• But we assume that messages are sequenced and
  retransmitted (arbitrary numbers of times), so
  they eventually get through.
• Free to say lossless, ordered
• No value to assumptions about process speed
• Failures in asynchronous model?
• Usually, limited to process crash faults
• If detectable, we call this fail-stop but how
  to detect?

5
An asynchronous network
Not causal!
6
An asynchronous network
Time shrinks
7
An asynchronous network
Time shrinks
Time stretches
8
Justification?

• If we can do something in the asynchronous model,
  we can probably do it even better in a real
  network
• Clocks, a-priori knowledge can only help
• But today we will focus on an impossibility
  result
• By definition, impossibility in this model means
  xxx cant always be done

9
Paradigms

• Fundamental problems, the solution of which
  yields general insight into a broad class of
  questions
• In distributed systems
• Agreement (on value proposed by a leader)
• Consensus (everyone proposes a value pick one)
• Electing a leader
• Atomic broadcast/multicast (send a message,
  reliably, to everyone who isnt faulty, such that
  concurrent messages are delivered in the same
  order everywhere)
• Deadlock detection, clock or process
  synchronization, taking a snapshot (picture) of
  the system state.

10
Consensus problem

• Models distributed agreement
• Comes in various forms (with subtle differences
  in the associated results)!
• With a leader leader gives an order, like
  attack, and non-faulty participants either
  attack or do nothing, despite some limited number
  of failures Byzantine Agreement
• Without a leader participants have an initial
  vote protocol runs and eventually all non-faulty
  participants chose the same outcome, and it is
  one of the initial votes (typically, 0 or 1)
  Fault-tolerant Consensus

11
Consensus problem
P0 Q0 R1
P1 Q1 R1
12
Fault-tolerance

• Goal an algorithm tolerant of one failure
• Failure process crashes but this is not
  detectable
• So the algorithm must work both in the face of
  arbitrary message delay caused by the network,
  and in the event of a single failure

13
If some process stays up

• Suppose we knew that P wont fail
• Then P could simply broadcast its input
• All would decide upon this value
• Solves the problem

14
If one process stays up

• Indeed, suppose that P stays up only long enough
  to send one message
• But there is only one failure
• And we knew that P would lead
• Then we can relay Ps message, using an
  all-to-all broadcast

15
Algorithm

• P broadcast my input
• Q ? P on receiving Ps message for first time,
  broadcast a copy
• Tolerates anything except failure of P in the
  first step, but we need to agree upon P before
  starting (ie P is the least ranked process, using
  alphabetic ranking)

16
Another algorithm

• All processes start by broadcasting own value to
  all other processes
• If we know that there is always exactly one
  failure, could wait until n-1 messages received,
  then using any deterministic rule
• But doesnt work if sometimes we have one
  failure, sometimes none

17
FLP result

• Considers general case
• Assumes an algorithm that can decide with zero or
  one failures
• Proves that this algorithm can be prevented from
  reaching decision, indefinitely

18
Basic idea

• Think of system state as a configuration
• Configuration is v-valent if decision to pick v
  has become inevitable all runs lead to v
• If not 0-valent or 1-valent, configuration is
  bivalent
• Initial configuration includes
• At least one 0-valent 0,0,0.0
• At least one 1-valent 1,1,1..1
• At least one bivalent 0,0,1,1

19
Basic idea
0-valentconfigurations
1-valentconfigurations
bi-valentconfigurations
20
Transitions between configurations

• Configuration is a set of processes and messages
• Applying a message to a process changes its
  state, hence it moves us to a new configuration
• Because the system is asynchronous, cant predict
  which of a set of concurrent messages will be
  delivered next
• But because processes only communicate by
  messages, this is unimportant

21
Basic Lemma

• Suppose that from some configuration C, the
  schedules ?1, ?2 lead to configurations C1 and
  C2, respectively.
• If the sets of processes taking actions in ?1 and
  ?2, respectively, are disjoint than ?2 can be
  applied to C1 and ?1 to C2, and both lead to the
  same configuration C3

22
Basic Lemma
C
?2
?1
C1
C2
?2
?1
C3
23
Main result

• No consensus protocol is totally correct in spite
  of one fault
• Note Uses total in formal sense (guarantee of
  termination)

24
Basic FLP theorem

• Suppose we are in a bivalent configuration now
  and later will enter a univalent configuration
• We can draw a form of frontier, such that a
  single message to a single process triggers the
  transition from bivalent to univalent

25
Basic FLP theorem
C
e
bivalent
e
D0
C1
univalent
e
e
D1
26
Single step decides

• They prove that any run that goes from a bivalent
  state to a univalent state has a single decision
  step, e
• They show that it is always possible to schedule
  events so as to block such steps
• Eventually, e can be scheduled but in a state
  where it no longer triggers a decision

27
Basic FLP theorem

• They show that we can delay this magic message
  and cause the system to take at least one step,
  remaining in a new bivalent configuration
• Uses the diamond-relation seen earlier
• But this implies that in a bivalent state there
  are runs of indefinite length that remain
  bivalent
• Proves the impossibility of fault-tolerant
  consensus

28
Notes on FLP

• No failures actually occur in this run, just
  delayed messages
• Result is purely abstract. What does it mean?
• Says nothing about how probable this adversarial
  run might be, only that at least one such run
  exists

29
FLP intuition

• Suppose that we start a system up with n
  processes
• Run for a while close to picking value
  associated with process p
• Someone will do this for the first time,
  presumably on receiving some message from q
• If we delay that message, and yet our protocol is
  fault-tolerant, it will somehow reconfigure
• Now allow the delayed message to get through but
  delay some other message

30
Key insight

• FLP is about forcing a system to attempt a form
  of reconfiguration
• This takes time
• Each unfortunate suspected failure causes such
  a reconfiguration

31
FLP and our first algorithm

• P is the leader and is supposed to send its input
  to Q
• Q times out and
• Tells everyone that P has apparently failed
• Then can disseminate its own value
• If P wakes up, we re-admit it to the system but
  it is no longer considered least ranked
• One can make such algorithms work
• But they can be attacked by delaying first P,
  then Q, then R, etc

32
FLP in the real world

• Real systems are subject to this impossibility
  result
• But in fact often are subject to even more severe
  limitations, such as inability to tolerate
  network partition failures
• Also, asynchronous consensus may be too slow for
  our taste
• And FLP attack is not probable in a real system
• Requires a very smart adversary!

33
Chandra/Toueg

• Showed that FLP applies to many problems, not
  just consensus
• In particular, they show that FLP applies to
  group membership, reliable multicast
• So these practical problems are impossible in
  asynchronous systems, in formal sense
• But they also look at the weakest condition under
  which consensus can be solved

34
Chandra/Toueg Idea

• Separate problem into
• The consensus algorithm itself
• A failure detector a form of oracle that
  announces suspected failure
• But it can change its mind
• Question what is the weakest oracle for which
  consensus is always solvable?

35
Sample properties

• Completeness detection of every crash
• Strong completeness Eventually, every process
  that crashes is permanently suspected by every
  correct process
• Weak completeness Eventually, every process that
  crashes is permanently suspected by some correct
  process

36
Sample properties

• Accuracy does it make mistakes?
• Strong accuracy No process is suspected before
  it crashes.
• Weak accuracy Some correct process is never
  suspected
• Eventual strong accuracy there is a time after
  which correct processes are not suspected by any
  correct process
• Eventual weak accuracy there is a time after
  which some correct process is not suspected by
  any correct process

37
A sampling of failure detectors
Completeness Accuracy Accuracy Accuracy Accuracy
Completeness Strong Weak Eventually Strong Eventually Weak
Strong PerfectP StrongS Eventually Perfect?P Eventually Strong ? S
Weak D WeakW ? D Eventually Weak? W
38
Perfect Detector?

• Named Perfect, written P
• Strong completeness and strong accuracy
• Immediately detects all failures
• Never makes mistakes

39
Example of a failure detector

• The detector they call W eventually weak
• More commonly ?W diamond-W
• Defined by two properties
• There is a time after which every process that
  crashes is suspected by some correct process
• There is a time after which some correct process
  is never suspected by any correct process
• Think we can eventually agree upon a leader.
  If it crashes, we eventually, accurately detect
  the crash

40
?W Weakest failure detector

• They show that ?W is the weakest failure detector
  for which consensus is guaranteed to be achieved
• Algorithm is pretty simple
• Rotate a token around a ring of processes
• Decision can occur once token makes it around
  once without a change in failure-suspicion status
  for any process
• Subsequently, as token is passed, each recipient
  learns the decision outcome

41
Rotating a token versus 2-phase commit
Propose v ack Decide v
phase
42
Rotating a token versus 2-phase commit

• Their protocol is basically a 2-phase commit
• But with n processes, 2PC requires 2(n-1)
  messages per phase, 3(n-1) total
• Passing a token only requires n messages per
  phase, for 2n total (when nothing fails)
• Tolerates f lt ? n/2 ? failures

43
Set of problems solvable in
Clock synchronization TRBnon-blocking atomic
commitconsensusatomic broadcast reliablebroa
dcast
Synchronous systems Asynchronous using
P Asynchronous using W Asynchronous TRB
Byzantine Generals with only crash failures
44
Building systems with ?W

• Unfortunately, this failure detector is not
  implementable
• Using timeouts we can make mistakes at arbitrary
  times
• But with long enough timeouts, could produce a
  close approximation to ?W

45
Would we want to?

• Question are we solving the right problem?
• Pros and cons of asynchronous consensus
• Think about an air traffic control application
• Find one problem for which asynchronous consensus
  is a good match
• Find one problem for which the match is poor

46
French ATC system (simplified)
Onboard
Radar
X.500 Directory
Controllers
Air Traffic Database (flight plans, etc)
47
Potential applications

• Maintaining replicated state within console
  clusters
• Distributing radar data to participants
• Distributing data over wide-area links within
  large geographic scale
• Management and control (administration) of the
  overall system
• Distributing security keys to prevent
  unauthorized action
• Agreement when flight control handoffs occur

48
Broad conclusions?

• The protocol seems unsuitable for high
  availability applications
• If the core of the system must make progress, the
  agreement property itself is too strong
• If a process becomes unresponsive might not want
  to wait for it to recover
• Also, since we cant implement any of these
  failure detectors, the whole issue is abstract
• Hence real systems dont try to solve consensus
  as defined and used in these kinds of protocols!

49
Value of FLP/Consensus

• A clear and elegant problem statement
• Highlights limitations
• Perhaps with clocks we can overcome them
• More likely, we need a different notion of
  failure
• Crash failure is too narrow, unreachable also
  treated as failure in many real systems
• Caused much debate about real systems

50
Nature of debate

• Well see many practical systems soon
• Do they
• Evade FLP in some way?
• Are they subject to FLP? If so, what problem do
  they solve, given that consensus (and most
  problems reduce to consensus) is impossible to
  solve?
• Or are they subject to even more stringent
  limitations?
• Is fault-tolerant consensus even an issue in real
  systems?
