Control Structures

1

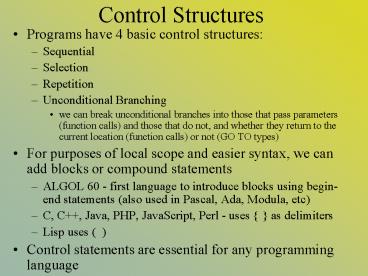

Control Structures

• Programs have 4 basic control structures
• Sequential
• Selection
• Repetition
• Unconditional Branching
• we can break unconditional branches into those
  that pass parameters (function calls) and those
  that do not, and whether they return to the
  current location (function calls) or not (GO TO
  types)
• For purposes of local scope and easier syntax, we
  can add blocks or compound statements
• ALGOL 60 - first language to introduce blocks
  using begin-end statements (also used in Pascal,
  Ada, Modula, etc)
• C, C, Java, PHP, JavaScript, Perl - uses as
  delimiters
• Lisp uses ( )
• Control statements are essential for any
  programming language

2
Selection Statements

• Gives a program the ability to choose which
  instruction(s) to next execute based on
  conditions
• Types
• 1-Way selection (if statement)
• 2-Way selection (if-else statement)
• 3-Way selection (FORTRAN had a peculiar
  arithmetic-based selection statement)
• multiple selection (or n-way selection,
  switch/case)
• Design issues
• what is the form and type of expression that
  controls the selection? (C allows 0/non-0,
  Java/C allow only boolean)
• how are clauses specified if at all?
• if nesting is allowed, how is it specified and
  implemented?

3
One-way and Two-way Selections

• One-way if without else
• if condition is true then execute next statement,
  otherwise skip over it
• FORTRANs IF statement was a One-Way (no Else
  clause, no nesting)
• if the then clause has more than 1, instruction,
  we alter the semantics of the statement, to what
  is in essence an else-goto rather than, an
  if-then
• nearly every language since has allowed two-way
  selections
• ALGOL 60 introduced the first true two-way
  selection
• terms then-clause else-clause introduced
• clauses are expected to be a single instruction
  to easily detect the end of each clause,
  otherwise, must use blocks
• ALGOL 60 allowed more than one entry into the
  two-way selection clauses!
• in languages where the then is omitted, the
  condition must be placed in ( ) to denote its end

If (.NOT. Condition) GOTO 20 I 1 J
2 20 Continue
4
Blocks

• ALGOL introduced the block structure in part to
  permit multiple instructions being part of the
  then or else clauses
• these required delimiters begin .. end, , (
  )
• in Algol 60
• If (Boolean expression) then begin
  statement 1 ... statement
  n end
• Perl goes one step further and requires that all
  clauses be placed into blocks (even if the clause
  is a single instruction)
• Ada and FORTRAN 95 have explicit end of blocks
  but not explicit beginnings by using end if or
  end for statements

5
Nesting

• Nested If-Then-Else statements can lead to
  ambiguity if there is a miss-match between
  conditions and else clauses

if(sum 0) if (count 0)
result 0 else result 1
Which condition does the else go with? Is
result 1 if sum ! 0 or if sum 0 and count
! 0?
if sum 0 then if count 0 then
result 0 else result 1
end end if sum 0 then if count 0
then result 0 end else result
1 end

• In ALGOL 60, nested if-then-else clauses must use
  an explicit end statement
• this is also the case for FORTRAN 77/90/95,
  Modula-2 and Ada
• In Ruby, all clauses must have explicit end
  statements (even if there is only a single
  statement in the clause)
• In C/C/Java/C and Pascal, the compiler rule
  matches mismatched elses with the last unmatched
  condition
• the rule can be overridden using blocks

6
Multiple Selection Constructs

• FORTRAN offers a 3-way selection
• IF (expression) N1, N2, N3
• if expression lt 0 then goto N1, if 0 goto N2,
  if gt 0 goto N3
• this was FORTRAN I-IVs only IF statement!
• ALGOL-W introduced the case statement
• Pascal, Modula and Ada, FORTRAN 90/95 all use
  this
• C/C/Java/C use the switch statement
• the main difference is that after a condition is
  found true in the switch statement, the next
  condition is tested such that the switch
  statement is not exited until all cases have been
  tested, to avoid this, you must use break
  statements
• however, to fix this oddity, in C you must end
  each case with a break or goto
• Lisp uses the COND statement
• all of these allow for a default if none of the
  cases is selected
• default in C-languages, else in Pascal, when
  others in Ada
• Perl/Python dont have a multi-selection
  statement at all!

7
Nested If-Else Constructs

• Cond in Lisp is really a nested if-then-else
  function
• Lisp also provides a default by using T as the
  final condition
• Other languages have provided a specific
  if-then-else nested construct for convenience
• Ada uses elsif if the intention is to do else
  if so that you do not have to explicitly end
  each if statement with an end if
• Python uses elif so that you dont have to
  continue to indent

Ada without elsif if Count lt 10 then Bag1
True else
if Count lt 100 then Bag2 True
else if Count lt 1000
then Bag3 True end
if end if
end if
Ada with elsif if Count lt 10 then Bag1
True elsif Count lt 100 then Bag2 True
elsif Count lt 1000 then Bag3 True end
if
8
Repetition Statements

• Every language has included some form of
  repetition, either counter-controlled (early
  FORTRAN) or logically-controlled, or both
• Issues
• how is repetition controlled?
• is testing before or after the loop body? (pre
  vs. post test)
• where should the control mechanism appear in the
  loop?
• for counter-controlled loops
• what are legal types and the scope of the loop
  control variable?
• what happens to the variable when the loop
  terminates?
• can the loops controlling variables (terminating
  value, step-size) be altered during execution?
• are the loop controlling variables (terminating
  value, step-size) evaluated once (before
  executing the loop) or after each iteration?
• what are legal step-sizes (for counter-controlled
  loops)

9
FORTRANs DO statement

• DO label variable initial, terminal ,step
• example Do 10 K 1, 10
• FORTRAN I IV a posttest loop, stepsize
  defaults to 1
• label is a line number that indicates the last
  instruction in the loop body
• FORTRAN 77, 90 and 95 pretest loop
• Integers (literals or variables) only for
  initial, terminal, step
• these values are computed prior to loop execution
  so that, if a variable changes values in the
  loop, it does not affect the number of loop
  iterations

initvalue J terminalvalue K 10 stepvalue
L iterationcount max(int((K10 J) / L),
1)
DO 10 I J, K 10, L K K 1 L L
2 10 CONTINUE If J 1, K 5, L 2, the loop
would iterate 25 times in spite of K and L
changing in the loop body
- in FORTRAN I-IV, this is a post-test loop so
it must iterate at least 1 time, in later
FORTRANs, this would become 0
10
ALGOL For Loop

• ALGOL 60 introduced an extremely flexible for
  loop as a reaction to FORTRANs primitive and
  restrictive Do
• the programmer controls the number of iterations
  by
• a counter controlled mechanism like FORTRANs DO
  but where the step size and terminating value
  could change during iterations
• enumerating a list of values to iterate through
• using a logical statement to control termination
• or any combination thereof
• Basic form
• for ltvargt ltlistgt,ltlistgt ltlistgt ? ltexprgt
  ltexprgt while ltbooleangt ltexprgt step ltexprgt until
  ltexprgt do ltstmtgt
• examples
• for count 1, 2, 3, 4, 5, 6, 7 do listcount0
• for count 1 step 1 until 7 do listcount0
• for count1, count1 while (count lt7) do
  listcount0
• for I 1, 4, 13, step 5 until 23, 3I while I lt
  300, 8, -4 do
• the values for I iterate through 1, 4, 13, 18,
  23, 69, 207, 8, -4

11
Other Languages For Loops

• COBOL
• Perform ltexprgt Times ltstatementsgt End-Perform
• Perform Varying ltvargt From ltexprgt By ltexprgt Until
  ltexprgt ltstatementsgt End-Perform
• PL/I
• DO ltvargt ltstartgt TO ltstopgt BY ltstepsizegt
  ltstatementsgt END
• ltstartgt, ltstopgt and ltstepsizegt can be int or
  float values
• like FORTRAN though, the values are only
  evaluated once before the loop starts
• can have multiple lists of ltstartgt TO ltstopgt
  values
• DO I 1 TO 10, 20 to 30, 50 TO 100
• Pascal for ltvargt ltinitgt (to downto)
  ltfinalgt do
• ltvargt, ltinitgt, ltfinalgt are any ordinal type but
  are evaluated prior to the start of the loop,
  step size is fixed as 1 or -1 depending on
  whether you use to or downto
• Ada for ltvargt in reverse ltrangegt loop ... end
  loop
• ltrangegt is a subrange as in 1..10 (the values can
  be ints or enumerated types)

12
Continued

• Common Lisp (do ((ltvargt ltinitgt ltstepgt)
  (ltendtestgt . ltresultgt)) ltstatementsgt)
• ltinitgt, ltstepgt, ltendtestgt and ltresultgt can all be
  functions or atoms, ltresultgt if specified is
  returned when the loop exits rather than the
  value returned by the last ltstatementsgt and
  ltvargts scope is only for the loop itself
• Cs for loop
• for (expr1 expr2 expr3) statement
• expr1 is the initialization, expr2 is the test,
  expr3 is the step increment
• each of these can be multiple terms separated by
  commas as in
• for (c10,c21 c1lt10 c2lt100 c1, c22)
• notice a C for-loop does not need a loop body as
  actions can take place in the expr3 component, or
  can omit one or more clauses, and can also be
  used like a logical loop
• for(x1 xltn x, factorial x)
• for(temp head temp ! NULL temp temp-gtnext)

• unlike the previous languages (except for Algol
  and Common Lisp), the increment and terminating
  conditions can change making these loops more
  writable but less readable

13
Iterator Loops

• A variation of the counting loop is a loop that
  iterates once for each item in the list (or data
  structure) provided
• Algols for loop has the capability of iterating
  over a list, but the list must be explicitly
  enumerated
• Python for ltvargt in ltrangegt
• ltrangegt will be a tuple or range(value , value
  , value)
• note that Pythons for loop can also be a
  counting loop by using the range function as in
  for x in range(0, 10, 2) which iterates over 0,
  2, 4, 6, 8, 10
• C has a foreach statement which can iterate
  across array elements
• Java 5.0s for loop has been enhanced to work on
  objects of type Iterable
• Common Lisp has a dolist statement much like Cs
  foreach

14
Logically Controlled Loops

• For situations where the number of repetitions is
  not based on counting, we use logically
  controlled loops
• Issues
• pretest vs. posttest (test condition before entry
  or after execution?)
• pre-test can block entry to loop body
• post-test must execute body at least once
• in C, C and Java, the post-test loop has the
  same semantics as the pre-test loop repeat
  while the condition is true
• in Pascal, the semantics change repeat until
  condition becomes false
• is this type of statement separate from a special
  kind of counter-controlled loop?
• C/C/Java/C, Pascal, Modula-2 have both pretest
  and posttest loops
• Ada only has posttest
• FORTRAN has no logically controlled loop (even
  FORTRAN 95)

15
Exiting Loops

• Should exiting a loop only be permitted at the
  end when the test returns false, or can premature
  exiting (and returning) be permitted?
• Ada has a conditional-less loop (infinite loop)
• loop ... end loop
• to use this, it requires that a GOTO statement be
  used to break out of the loop, for instance in an
  if statement
• C/C/Java/C and Modula-2 have unconditional
  exit statements
• break, continue, exit
• these are forms of GO TO statements
• Java has break and exit but not continue
• COBOL uses
• Perform ltparagraphgt Thru ltparagraphgt
• both paragraphs are executed but if an error
  arises in the first paragraph, control exits to
  the second paragraph
• Multiple exits harm readability
• exception throwing (and catching) are forms of
  pre-maturely exiting a block (including possibly
  inside a loop)
• again, these are forms of GO TO statements

16
Problems with Unconditional Branching

• Can make programs unreadable
• Creates problems with maintenance
• thus harming reliability, especially of very
  large programs
• The GO TO statement is too primitive
• it is an invitation to make a mess of ones
  program
• Most languages have some form of GOTO statement
• Modula-2, Bliss, CLU, Euclid, Gypsy do not!
• Java has a GOTO, but it hasnt been implemented
  (yet)
• Without a GOTO, the language must have other
  control mechanisms, usually in the form of loops
  and subprograms with their own ability to enter
  and exit
• if you think about it, GOTO statements are
  required in assembly/machine code because they do
  not have the high-level language constructs, but
  the high level languages should offer these
  constructs and let the compiler do the work

17
GOTO Labels

• Used in ALGOL 60, C, FORTRAN and Ada as locations
  for GOTO commands
• in Ada, ltltlabelgtgt
• in FORTRAN and Pascal, unsigned integer constant
  (20, 100, etc...)
• in Pascal, labels must be declared as if they
  were variables (but cannot be modified or passed
  as a parameter)
• in C, ALGOL 60, any legal identifier
• Most languages restrict the use of unconditional
  branches with respect to which label can be
  reached
• in Pascal, the scope of the label is the same as
  the scope of a variable and the target of the
  GOTO must be
• within the control statement that includes the
  GOTO or
• a statement in the same group that contains the
  GOTO or
• in a statement in an enclosing subprogram scope
