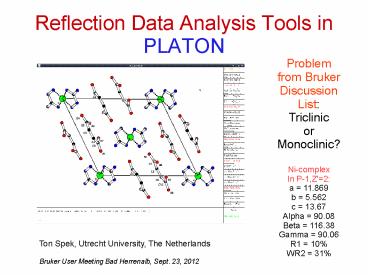

Reflection Data Analysis Tools in PLATON

1
Reflection Data Analysis Tools in PLATON
Problem from Bruker Discussion
List Triclinic or Monoclinic?
Ni-complex In P-1,Z'2 a 11.869 b 5.562 c
13.67 Alpha 90.08 Beta 116.38 Gamma
90.06 R1 10 WR2 31
Ton Spek, Utrecht University, The
Netherlands Bruker User Meeting Bad Herrenalb,
Sept. 23, 2012
2
Triclinic, Monoclinic ?

• The New SHELXT program offers a starting model in
  P-1 and Pn and P21/n
• PLATON/ADDSYM happily offers a structure in P21/n
  that resembles the solution in P-1

3
(No Transcript)
4
(No Transcript)
5
Alternative Monoclinic Model
In P21/n, Z'1 A 11.869 B 5.562 C
13.67 Alpha 90 Beta 116.38 Gamma 90 R1
17 WR2 53 Poor ADP's
6
Monoclinic Model ADP's
7
Looking at the Data

• - Investigate thePrimary Data
• - Images, Integration
• - HKL File
• - Redundancy, Laue Symmetry (Rav)
• - Space Group Extinctions
• - Investigate the Refinement Data
• - Analysis of Variance
• - Twinning
• With Tools Available in PLATON

8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Test P-1 Model for Twinning
24
Overlapped k 0 Layer
25
(No Transcript)
26
Rav (Monoclinic 2/m) 21 on F(calc) Model
27
Refined Model in P-1
All H-atoms Found and rerined
28
In Conclusion

• Three additional parameters had to be introduced
  to obtain a nice looking refinement result in
  P-1
• - A twinning parameter
• - Two population parameters Ni1 0.88, Ni2 0.43
• The residual problem explain the non 1.0
  population parameters for Ni.
• - Go back to the chemist ..

29
Thanks !
