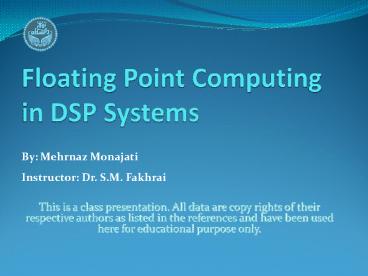

Title: Floating Point Computing in DSP Systems


1
Floating Point Computing in DSP Systems
  • By Mehrnaz Monajati
  • Instructor Dr. S.M. Fakhrai
  • This is a class presentation. All data are copy
    rights of their respective authors as listed in
    the references and have been used here for
    educational purpose only.

2
Fixed vs. Floating Point DSPs
  • Cost
  • Ease of use
  • Accuracy
  • Dynamic range

3
Fixed vs. Floating Point DSPs
  • Cost
  • Today, fixed-point DSPs continue to benefit more
    from cost reductions of scale in manufacturing
  • since they are more often used for high-volume
    applications
  • the same reductions will apply to floating-point
    DSPs when high-volume demand for the devices
    appears.
  • Today, cost has increasingly become an issue of
    SOC integration and volume, rather than a result
    of the size of the DSP core itself.

4
Fixed vs. Floating Point DSPs
  • Ease of use
  • Last days
  • TI floating-point supported the C language
  • FXP DSPs were programmed at the assembly code
    level
  • Coding of real arithmetic in to hardware
  • Directly in FLP
  • indirectly in FXP
  • software routines that added development time and
    extra instructions to the algorithm
  • Programming
  • Easier in FLP
  • Today
  • TI fixed-point DSPs have long been supported by
    outstandingly efficient C compilers
  • The advantage of implementing real arithmetic
    directly in floating-point hardware still remains
  • Reduction in FXP complexity
  • FXP DSPs still have an edge in cost and FLP DSPs
    in ease of use, but the edge has narrowed

5
Fixed vs. Floating Point DSPs
  • Accuracy
  • Dynamic range
  • Accuracy of FLP is greater than FXP
  • FLP has greater precision in integer as well as
    real values
  • Exponentiation vastly increases the dynamic range
  • Internal data representations in FLP DSPs are
    more exact than in FXP
  • ensuring greater accuracy in end result

6
Fixed vs. Floating Point DSPs
  • FXP DSPs
  • TIs TMS320C62x FXP DSPs
  • Two data paths operating in parallel
  • Each with a 16-bit word width
  • provides signed integer values within a range
    from 215 to 215
  • TMS320C64x DSPs,
  • double the overall throughput with four 16-bit
    multipliers
  • TMS320C5x and TMS320C2x DSPs
  • designed for handheld and control applications,
    respectively
  • are based on single 16-bit data paths

7
Fixed vs. Floating Point DSPs
  • FLP DSPs
  • TMS320C67x FLP DSPs
  • divide a 32-bit data path into two parts a
    24-bit mantissa and an 8-bit exponent.
  • 16M range of precision
  • supporting a vastly greater dynamic range than is
    available with the FXP format. The C67x DSP can
    also perform calculations
  • C67x DSP
  • Using industry-standard double-width precision
  • 64 bits, including a 53-bit mantissa and an
    11-bit exponent
  • Achieves much greater precision and dynamic range
    at the expense of speed, since it requires
    multiple cycles for each operation

8
Standards for FLP Number Formats
9
FLP Nnumber Formats
10
Sample Floating Point DSPs
  • AMD - Athlon Processor
  • Xilinx Virtex-5 APU Floating Point Unit
  • Digital Core Design DFPAU ver 2.05

11
AMD - Athlon Processor 2000
  • Include the most powerful floating point engine
    for x86 platforms
  • Delivers twice the peak x87 floating point
    execution rate of the Intel Pentium III
    processor
  • Rivals the FP performance of many RISC processors
    in that time
  • Superscalar and Super pipelined
  • Higher clock frequencies
  • Higher overall throughput

Ref. 3
12
AMD - Athlon Processor 2000
Ref. 3
13
Xilinx Virtex-5 APU FLP Unit 2009
  • designed for the PowerPC 440 embedded
    microprocessor of the Virtex-5 FXT FPGA family
  • support for IEEE-754 standard in single or double
    precision
  • Optimized for 21 and 31 APUCPU clock ratios
  • allowing PowerPC processor to operate at maximum
    frequency
  • Application
  • Digital signal processing of high-quality audio
    or video signals where a very large dynamic range
    is needed to retain fidelity.
  • Matrix inversion in wireless communications and
    radar
  • Digital signal processing tasks, spectral methods
    such as FFT
  • Statistical processing
  • where floating-point is often the simplest way to
    avoid integer overflow and rounding errors

14
Xilinx Virtex-5 APU FLP Unit 2009
  • Increased Processing Capacity
  • Hardware floating-point operations complete
    faster than the equivalent software emulation
    routines
  • The floating-point operators within the FPU are
    pipelined
  • multiple floating-point calculations can proceed
    in parallel
  • The FPU is autonomous
  • the PowerPC processor internal pipeline can
    continue to execute integer instructions while
    floating-point operations are handled by the FPU
    in parallel
  • IEEE 754-1985 / Book-E Standard Compatibility
  • The standard represents very small numbers by
    allowing significands of the form "0.x" in
    addition to the usual 1.x used by normalized
    FLP numbers
  • In Book-E, the multiply part of a multiply-add
    operation should not round its result before
    supplying it to the addition part
  • The FPU treats all not-a-number (NaN) values as
    quiet NaNs, which do not cause exceptions. When a
    floating-point operation results in a NaN because
    one of the inputs was a NaN, the input NaN is not
    propagated to the output the default quiet NaN
    value is provided. This value is
    0x7ff8000000000000 in double precision, and
    0x7f800000 in single precision

15
Xilinx Virtex-5 APU FLP Unit
Ref. 4
16
Digital Core Design DFPAU ver. 2.05, 2010
  • It is a FLP Arithmetic Co-processor
  • directly replaces C software functions, by
    equivalent, very fast hardware operations
  • significantly accelerate system performance
  • It doesnt require any programming
  • Everything is done automatically during software
    compilation by the DFPAU C driver.
  • Supports addition, subtraction, multiplication,
    division, square root, comparison, absolute value
  • The input numbers format is according to IEEE-754
  • Each floating point function can be turned on/off
    at configuration level
  • providing the flexible scalability of DFPAU
    module
  • technology independent design

17
Digital Core Design DFPAU ver. 2.05, 2010
Ref. 5
Ref. 5
18
Architectural Modification to Improve FLP Unit in
FPGAs 2008 1
  • Variable length shifters account for over 30 of
    a adder and 25 of a multiplier
  • Coarse-grained approach
  • Embedded Shifter
  • fine-grained approach
  • Multiplexer

embedded shifter 41 multiplexer
Consumed chip area 1.5 0.48
Saved area 14.6 7.3
Increased clock rate 3.3 11.6
19
Low power FLP Unit 2009 2
  • Design of embedded systems applications with low
    power consumption and fast processing
  • performing basic operations such as addition,
    subtraction, multiplication and division
  • Idea
  • the functional units (adder, shifter, registers)
    are shared between different operations
  • Advantage saving silicon area
  • Disadvantage the increase in the number of
    cycles required to perform the operation

20
Low power FLP Unit - 2009
Ref. 2
21
Low power FLP Unit - 2009
Ref. 2
22
Reconfigurable FLP Unit 2009 7
  • Non-numerical applications usually have very few
    FLP operations
  • FLP unit is always under idle mode
  • In idle mode, the floating-point unit still
    consume power and the die area is wasted
  • Idea
  • reconfigurable floating-point unit that provide
    integer and floating-point operations

23
Reconfigurable FLP Unit
rAMM Array
Ref. 7
24
Reconfigurable FLP Unit
Ref. 7
25
Reconfigurable FLP Unit
Ref. 7
Ref. 7
26
References
  1. M. Beauchamp, et al., "Architectural
    modifications to enhance the floating-point
    performance of FPGAs," IEEE Transactions on Very
    Large Scale Integration Systems, vol. 16, p. 177,
    2008.
  2. R.Neves, et al. "A Floating Point Unit
    Architecture for Low Power Embedded Systems
    Applications," XXIV SIM - South Symposium on
    Microelectronics, 2009.
  3. AMD Athlon Floating Point Engine, "AMD Athlon
    Processor floating Point Capability, The Most
    Powerful, Architecturally Advanced Floating Point
    Engine Ever Delivered in an x86 Microprocessor,"
    with paper, 2000.
  4. Xilinx DS693 Virtex-5 APU Floating-Point Unit
    v1.01a, Data Sheet, DS693, 2009.
  5. DFPAU floating-point pipelined divider, 2010,
    lthttp//www.altera.comgt.
  6. G. Frantz and R. Simar, "Comparing Fixed and
    Floating Point DSPs," SPRY061, Texas Instruments,
    2004.
  7. Y. Lee and J. Jou, "Design of A Reconfigurable
    Floating-Point Unit," 2009.

27
Thanks for Your attention
28
Embedded shifter block diagram
Ref. 1
29
41 Multiplexer
Ref. 1
