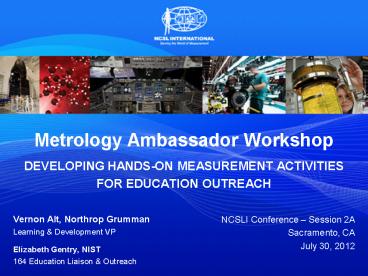

Metrology Ambassador Workshop

1
Metrology Ambassador Workshop

• DEVELOPING HANDS-ON MEASUREMENT ACTIVITIES
• FOR EDUCATION OUTREACH

Vernon Alt, Northrop Grumman Learning
Development VP Elizabeth Gentry, NIST 164
Education Liaison Outreach
NCSLI Conference Session 2A Sacramento, CA July
30, 2012
2
WorkshopLearning Objectives

• Following this workshop, participants will be
  able to work in teams and use provided resources
  to
• DESCRIBE the purpose of the Metrologist Kits
• LIST at least 3 types of sensors included in the
  Metrologist Kits
• LIST the typical elements of an outreach activity
  lesson plan
• WRITE a measurement focused outreach activity
  lesson plan

3
Purpose of the NCSLI Metrology Ambassador Program
Future Workforce Shortage
Goal Inspire the Next Generation of Measurement
ProfessionalsHow Target the STEM Pipeline
4
What is a Metrology Ambassador?
Educates Students, Parents, Educators, Others
Basic Measurement Science Principles MetrologyCa
reers
Measurement Scientist Volunteer
5
Tools of the Metrology Ambassador

• ncsli.org Learning Development Training Aids
  Library Metrologist Kits
• Business Office (303-440-3339)

6
Example Lesson PlanLab Summary

• The purpose of this lab
• Demonstrate Chemical Reaction
• Focus on the Physics
• Everyday Applications
• Use to Perform a Calibration

7
Materials

• 1 ea. Vernier LabQuest
• 2 ea. Stainless Steel Temperature Probes
• 2 ea. 1 L Beakers or Plastic Cups
• 2 ea. Cups to hold 200 mL of ice
• Measuring cup
• 30 mL of table salt
• 150 mL of water
• 200 mL of crushed ice
• Container of distilled water
• Container of crushed ice

8
Where to Get the Materials
9
Preliminary Questions

• How cold is ice?
• A typical freezer -8 oC, deep freezer -17 oC.
• What are the 4 states of matter?
• Solid, Liquid, Vapor, and Plasma
• Hypothesis - What will happen when salt is added
  to one of the beakers?
• The salt, water and ice solution will get colder
  than 0 oC and still remain liquid

10
Procedure

1. Add 150 mL of distilled water to each beaker.
   Place a temperature probe in each beaker and
   allow to stabilize at room temperature
2. Procure two volunteers
3. Set up and start data collection on the LabQuest
4. After several seconds have the volunteers add the
   ice
5. Allow both probes to level off at 0 oC
6. Add 30 mL of salt to one of the beakers
7. Allow the salt water and ice to level off then
   add another 30 mL of salt to the same beaker

11
Resulting Plot of Temp vs. Time
Ambient Temperature
Add crushed ice
Latent Heat of Fusion
1st 30 mL of Salt added
2nd 30 mL of Salt added
12
Post Lab Discussion

• How can we use our knowledge of water, ice, salt
  and the latent heat of fusion to perform a single
  point calibration on a thermometer?
• Materials
• Distilled water
• Ice made using distilled water
• Clean salt free ice trays
• A clean salt free container
• A thermometer that measures down to at least 0
  oC
• Dont use a glass thermometer
• Use a probe style

13
Post Example Discussion

1. What was the main goal of the activity?
2. What was the key measurement area and concept(s)?
3. How could this activity be modified to increase
   the measurement science focus (e.g., Real Life
   Applications, Traceability, Uncertainty,
   Calibration)?

14
WorkshopActivity

• TEAMS
• REVIEW template lesson plans and related
  resources
• WRITE a complete measurement focused outreach
  activity lesson plan
• Template Format
• Learning Objectives
• State Standards

15
EducationStandards

• Vernier
• National Council Teachers of Mathematics (NCTM)
  Principals Standards
• National Science Education Standards
• National Education Technology Standards for
  Students

http//www.vernier.com/standards/US/
16
The Scientific Method
17
Lesson Plan Elements
Lesson Plan Element Description
Summary A brief synopsis of the experiment.
Learning Objectives An objective statement that describes the purpose of the activity.
Education Standards Shows how the experiment correlates to curriculum standards of State and/or National education standards.
Materials and Equipment List all of the materials and equipment you need to perform the activity or experiment (e.g., consumable supplies, chemicals, glassware, etc.).
Background Information to bring the instructor up to speed with the concepts used in the experiments, which could include vocabulary words, theory, history, real life applications, equations, sample calculations, and safety concerns.
Extensions Additional questions or activities that allow the student to explore concepts outside of class or apply what they have learned to a new situation. Connections to related measurement topics can also be included.
Assessment Plan Various methods that can be used to assess if learning objectives have been achieved.
Bibliography A list of references used in the activity, such as books, journals articles, or website sources.
18
Writing Learning Objectives
Blooms Taxonomy

• Learner Behavior or Skill
• Select a VERB

19
AVOID vague words like Know Understand
LEVEL ACTION WORDS
KNOWLEDGE describe, identify, recall, arrange, define, duplicate, label, list, memorize, name, order, recognize, reproduce state
COMPREHENSION give example, classify, describe, discuss, explain, express, identify, indicate, locate, recognize, report, restate, review, select, translate
APPLICATION change, construct, compute, choose, demonstrate, dramatize, employ, illustrate, interpret, operate, practice, schedule, sketch, solve, use, write
ANALYSIS break down, relate, appraise, calculate, categorize, compare, contrast, criticize, differentiate, discriminate, distinguish, examine, experiment, question, make inferences, find evidence, test
SYNTHESIS summarize, arrange, combine, categorize, assemble, collect, compose, construct, create, design, develop, formulate, manage, organize, plan, prepare, propose, set up, write
20
WorkshopActivity

• TEAMS
• REVIEW template lesson plans and related
  resources
• WRITE a complete measurement focused outreach
  activity lesson plan
• Template Format
• Learning Objectives
• State Standards

21
Team Activity
Notebooks
Equipment Specifications
LIGHT
22
Team Topics
FORCE Sensor Force Plate Champion Corey Peters
LIGHT Sensors UVA Sensor UVB Sensor Champion
Dilip Shah
TEMPERATURE Sensors Infrared Thermometer
Stainless Steel Probe Champion Elizabeth Gentry
SOUND Sensor Microphone Champion Vernon Alt
23
Ideas from the Working Groups

• TEMPERATURE
• Measure insulative properties of materials.
• Temperature expand infrared image
• Consumer Decision Value vs. Energy Savings

24
Ideas from the Working Groups

• SOUND
• Measure speed of sound (24)
• Measure reflective/absorptive properties of
  materials using 24.
• Time using speed of sound
• Measure greater distances using 24 and cardboard
  with focusing hole.

25
Ideas from the Working Groups

• FORCE
• Definition of a Newton
• Force
• Buoyant Force
• Interactive Force
• Directional Force
• Pushing a Thumbtack Into Different Materials

26
Ideas from the Working Groups

• LIGHT
• What is SPF?
• What is UV radiation?
• What are the units?
• How do we measure amount of radiation?
• How do different SPFs change the amount of
  radiation?

27
Template ExperimentDiscussion

1. What was the main goal of the activity/activities?

2. What was the key measurement area and concept(s)?
3. How could this activity be modified to increase
   the measurement science focus (e.g., Real Life
   Applications, Traceability, Uncertainty,
   Calibration)?

28
WorkshopConclusions

• Discussion
• Team comments are recorded on flip charts

• Review
• Purpose of the Metrologist Kits?
• 3 types of sensors?
• Typical elements of a lesson plan?
• Join a working group!

29
Whats Next?
Experiment Request Metrologist Kit from
TALOS Identify Probes or sensors needed, but
not in TALOS Compose Drafts Using plan
elements, education standards results from
experimentation Attend Working Group
Web-meetings Publish Metrology related labs for
use by Metrology Ambassadors (December 2012)
30

• Questions?
• Thank You!
