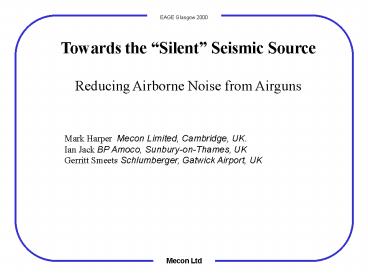

Towards the Silent Seismic Source Reducing
Airborne Noise from Airguns
Mark Harper Mecon Limited, Cambridge, UK. Ian
Jack BP Amoco, Sunbury-on-Thames, UK Gerritt
Smeets Schlumberger, Gatwick Airport, UK
Mecon Ltd
2
EAGE Glasgow 2000

• Why bother to reduce airgun noise?
• In environmentally sensitive areas, noise may
  disturb wildlife or residents
• 4D surveys can make things worse

Mecon Ltd
3
EAGE Glasgow 2000
Proposed 4D survey in Poole Harbour, Dorset
(English South Coast)
Mecon Ltd
4
EAGE Glasgow 2000
Advantages and Disadvantages of the Airgun as a
Transition Zone Source

• High Energy Output in the Seismic Band
• Instantaneous Signal (convenient on a moving
  ship)..but..
• High Peak-Level Acoustic Noise

Mecon Ltd
5
EAGE Glasgow 2000
How do Airguns Generate Acoustic Noise?
Possible Paths
1
4
Airgun Barge
3
2
Mecon Ltd
6
EAGE Glasgow 2000
Field Measurements of Possible Paths GECO-Prakla
Gun Barge
Mecon Ltd
7
EAGE Glasgow 2000
Field Measurements of Possible Paths Measurement
Positions Single Gun, 0.6L capacity
1
4
3
2
Airgun Barge
Hydrophone
Microphone
Accelerometer
Mecon Ltd
8
EAGE Glasgow 2000
Measurements Near Gun
Pa
Pa
Microphone
Hydrophone
Sec
Sec
Mecon Ltd
9
EAGE Glasgow 2000
Measurements On Barge
Pa
m/s2
Accelerometer
Microphone
Sec
Sec
Mecon Ltd
10
EAGE Glasgow 2000
Measurements on Water 100m from Barge
Pa
Pa
Microphone
Hydrophone
Sec
Sec
Mecon Ltd
11
EAGE Glasgow 2000
Measurements on Land 100m from Barge
Pa
m/s2
Accelerometer
Microphone
Sec
Sec
Mecon Ltd
12
EAGE Glasgow 2000
Effect of Gun Depth Pressure on Acoustic Signal
at Various Distances
Mecon Ltd
13
EAGE Glasgow 2000
Conclusions

• Acoustic signal from gun is not coupled to water
  wave or ground roll
• Propagation is omnidirectional (amplitude
  inversely proportional to distance)
• Sound is produced either by rigid-body scattering
  from the raft or by nonlinear effects near the
  gun

Mecon Ltd
14
EAGE Glasgow 2000
Airgun Pop
Mecon Ltd
15
EAGE Glasgow 2000
What now?

• A proof experiment is needed to decide whether
  noise is caused by scattering or by nonlinearity
• If by scattering, the cure is to stand the guns
  off from the barge
• If by nonlinearity, further investigation will be
  needed to decide the best method for noise
  reduction

Mecon Ltd
