9.3 Altitude-on-Hypotenuse Theorems

1

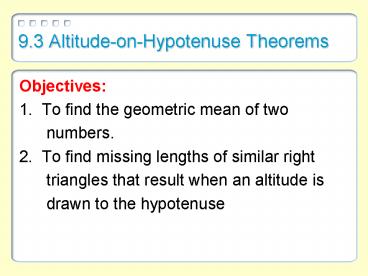

9.3 Altitude-on-Hypotenuse Theorems

• Objectives
• 1. To find the geometric mean of two
• numbers.
• 2. To find missing lengths of similar right
• triangles that result when an altitude is
• drawn to the hypotenuse

2
Altitudes

• Recall that an altitude is a segment drawn from a
  vertex such that it is perpendicular to the
  opposite side of the triangle.
• Every triangle has three altitudes.

3
Altitudes

• In a right triangle, two of these altitudes are
  the two legs of the triangle. The other one is
  drawn perpendicular to the hypotenuse.

Altitudes
4
Altitudes

• Notice that the third altitude creates two
  smaller right triangles. Is there something
  special about the three triangles?

Altitudes
5
Index Card Activity

• Step 1 On your index card, draw a diagonal.
  Cut along this diagonal to separate your right
  triangles.

6
Index Card Activity

• Step 2 On one of the right triangles, fold the
  paper to create the altitude from the right angle
  to the hypotenuse. Cut along this fold line to
  separate your right triangles.

7
Index Card Activity

• Step 2 On one of the right triangles, fold the
  paper to create the altitude from the right angle
  to the hypotenuse. Cut along this fold line to
  separate your right triangles.

8
Index Card Activity

• Step 2 On one of the right triangles, fold the
  paper to create the altitude from the right angle
  to the hypotenuse. Cut along this fold line to
  separate your right triangles.

9
Index Card Activity

• Step 3 Notice that the small and medium triangle
  can be stacked on the large triangle so that the
  side they share is the third altitude of the
  large triangle.

10
Index Card Activity

• Step 3
• Label the angles of each triangle to match
  the diagram.
• Be sure to label all three triangles.
• In fact, use 4 colored markers to color edges and
  altitude, and label the back of each of them too.

B
A
C
11
Index Card Activity

• Step 4 Arrange all three triangles so that they
  are nested. What does this demonstrate? Why
  must this be true?

C
12
Index Card Activity

• Step 5 Write a similarity statement involving
  the large, medium, and small triangles.

C
13
Right Triangle Similarity Theorem

• If an altitude is drawn to the hypotenuse of a
  right triangle, then the two triangles formed are
  similar to the original triangle and to each
  other.

14
Example 1

• Identify the similar triangles in the diagram.

15
Example 2

• Find the value of x.

Did you get x 12 ?
5
16
Geometric Mean

• The geometric mean of two positive numbers a and
  b is the positive number x that satisfies
• This is just the square root of their product!

17
Example 3

• Find the geometric mean of 12 and 27.

18
Example 4

• Find the value of x.

Did you get x 18?
19
Example 5

• The altitude to the hypotenuse divides the
  hypotenuse into two segments.
• What is the relationship between the altitude and
  these two segments?

altitude
Segment 1
Segment 2
hypotenuse
20
Geometric Mean Theorem I

• Geometric Mean (Altitude) Theorem
• In a right triangle, the altitude from the right
  angle to the hypotenuse divides the hypotenuse
  into two segments.
• The length of the altitude is the geometric mean
  of the lengths of the two segments.

21
Geometric Mean Theorem I
Heartbeat

• Geometric Mean (Altitude) Theorem
• In a right triangle, the altitude from the right
  angle to the hypotenuse divides the hypotenuse
  into two segments.
• The length of the altitude is the geometric mean
  of the lengths of the two segments.

x
x
b
a
22
Example 6

• Find the value of w.

(w 9)(w 9) (8)(18)
w2 18w 81 144
(short leg) 8 w 9
(long
leg) w 9 18
w2 18w - 63 0
(w 21)(w 3) 0
w -21, 3
8 (3 9) (3 9) 18 8 12 12 18
2 3 2 3 v
23
Example 7

• Find the value of x.

Boomerang!
(short leg) 3 x

(hypotenuse) x 12
x2 36
Did you get x 6?
24
Geometric Mean Theorem II

• Geometric Mean (Leg) Theorem
• When an altitude is drawn to the hypotenuse of a
  right triangle, each leg is the geometric mean
  between the hypotenuse and the segment of the
  hypotenuse that is adjacent to the leg.

25
Geometric Mean Theorem II
Boomerang

• Geometric Mean (Leg) Theorem
• When an altitude is drawn to the hypotenuse of a
  right triangle, each leg is the geometric mean
  between the hypotenuse and the segment of the
  hypotenuse that is adjacent to the leg.

a
a
x
c
26
Geometric Mean Theorem II
Boomerang

• Geometric Mean (Leg) Theorem
• When an altitude is drawn to the hypotenuse of a
  right triangle, each leg is the geometric mean
  between the hypotenuse and the segment of the
  hypotenuse that is adjacent to the leg.

b
b
y
c
27
Example 8

• Find the value of b.

Did you get b 25 ?
6
28
Example 9

• Find the value of the variable.

w k
6
4
Boomerang!
HEARTBEAT
29
9.3 Assignment

• P 379
• (1 5 8 13 16, 17)
