Young

1

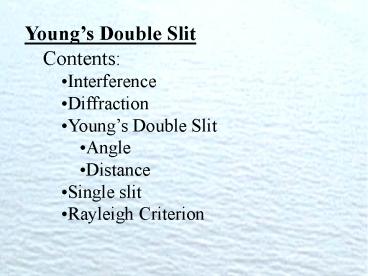

• Youngs Double Slit
• Contents
• Interference
• Diffraction
• Youngs Double Slit
• Angle
• Distance
• Single slit
• Rayleigh Criterion

2
Interference
Sources
L1
L2
When the difference in distance (L1- L2) is an
integer number of wavelengths (0, 1, 2, 3)
Constructive remainder of a half (1/2, 1 1/2, 2
1/2, ) Destructive
TOC
3
Youngs Double Slit Experiment
Monochromatic, coherent light Light spreads out
from slits Screen has sum of two
sources Interference pattern on screen Demo
TOC
4
(No Transcript)
5
Youngs Double Slit Experiment
L1
Next Maxima
d
Central Maxima
L2
d slit separation
TOC
6
Youngs Double Slit Experiment
L1
Next Maxima
?
d
Central Maxima
L2
d slit separation d sin? n? (n 0, 1, 2) -
constructive d sin? (n 1/2)? - destructive
TOC
7
Youngs Double Slit - Angle 1 2 3 4
TOC
8
Two slits are 3.00 x 10-6 m apart. What is the
wavelength of the incident light if the bright
fringes are separated by 6.00o?
d sin? n? d 3.00 x 10-6 m, n 1, ? 6.00o
W
314 nm
9
Two slits are 9.00 x 10-6 m apart. If 565 nm
light is incident, what angle separates the
central maxima, and the third fringe out?
d sin? n? d 9.00 x 10-6 m, n 3, ? 565 x
10-9 m
W
10.9o
10
Youngs Double Slit Experiment
L1
Next Maxima
d
Central Maxima
Similar triangles - set up proportion s ? D
d
TOC
11
Youngs Double Slit Distance 1 2 3 4
TOC
12
520 nm light hits two slits separated by 2.5 x
10-5 m. What distance separates the bright
fringes on the screen that is 5.0 m distant? s
? D d
d 2.5 x 10-5 m, D 5.0 m, ? 520 x 10-9 m
W
.10 m
13
Light hits two slits separated by 2.50 x 10-5 m.
If 5.70 cm separates the bright fringes on the
screen that is 5.00 m distant, what is the
wavelength of light being used? s ? D
d
d 2.50 x 10-5 m, D 5.00 m, d .0570 m
W
285 nm
14
A single slit can make an interference pattern too
15
Rayleigh Criterion ? 1.22? b ?
Angle of resolution (Rad) ? Wavelength (m) b
Diameter of circular opening (m) (Telescope
aperture) the bigger the aperture, the smaller
the angle you can resolve.
16
Rayleigh Criterion 1 2
TOC
17
What is the angular resolution of the 100 inch
(2.54 m) diameter telescope on the top of Mt
Wilson? (use 550 nm as the wavelength) (uh 550
nm 550 x 10-9 m)
? 1.22? b ? ?, ? 550 x 10-9 m, b
2.54 m ? 2.64173E-07
W
2.6 x 10-7 radians
18
What diameter telescope do you need to resolve
two stars that are separated by 1.8 x 1011 m, but
are 3.0 1017 m from us? (use 550 nm as the
wavelength) (AU, 32 LY) hint ? s/r (1.8 x
1011 m)/(3.0 1017 m)
? 1.22? b ? 6.00 x 10-7, ? 550 x
10-9 m, b ? b 1.12 m
W
1.1 m
