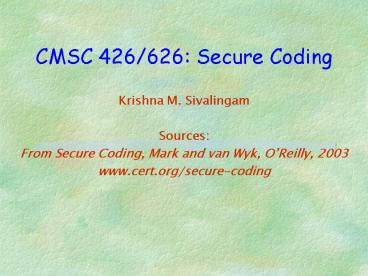

CMSC 426/626: Secure Coding

1
CMSC 426/626 Secure Coding

• Krishna M. Sivalingam
• Sources
• From Secure Coding, Mark and van Wyk, OReilly,
  2003
• www.cert.org/secure-coding

2
Where can errors occur?

• During entire software lifecycle
• Security Architecture/Design stage
• Man-in-the-middle attack
• Race condition attack
• Replay attack
• Implementation Stage
• Buffer overflow attack
• Parsing error attack
• Back door attacks (aka Trapdoors)
• Code Maintenance Stage

3
Flaw Classifications

• Landwehrs Scheme
• Bishops Scheme
• Aslams Scheme
• Du/Mathurs classification
• Flaws are Intentional and Inadvertent
• Inadvertent Flaw Classifications
• Validation Error
• Domain Error
• Serialization and Aliasing
• Inadequate Authentication and Identification
• Boundary Condition Violation
• Other exploitable logic error

4
Study of Buffer Overflow Attack

• Cowan, Crispin, Perry Wagle, Calton Pu, Steve
  Beattie, and Jonathan Walpole. "Buffer Overflows
  Attacks and Defenses for the Vulnerability of the
  Decade." Proceedings of DARPA Information
  Survivability Conference and Expo (DISCEX), 1999
• http//insecure.org/stf/mudge_buffer_overflow_tuto
  rial.html

5
Buffer Overflows

• Inject attack code by overflowing the buffer
• Usually involves adding code based on target
  machines CPU opcodes
• Execute code with all the privileges of the
  vulnerable program
• Thus, if program is running as root, attacker can
  run at will any code as root
• Typically, manage to invoke execve /bin/sh or
  similar to get a root shell

6
Program Segments

• An executing program consists of
• Code
• Initialized Data
• Global variables
• Stack
• Heap (for dynamic allocation)
• Remember that local variables, return address,
  etc. are stored in the stack when a function is
  invoked
• When a local variable is over-run, it can alter
  return address, etc.

7
Where to Inject Code

• On the stack (automatic variables)
• On the heap (malloc or calloc variables)
• In static data areas
• Executable code need not be restricted to the
  overflowing buffer code can be injected
  elsewhere
• One can also use existing code
• For example, if exec(arg) exists in program,
  modify running code by making arg point to
  /bin/sh

8
Jump to Attackers Code

• Activation Record
• Overflow into return address on the stack and
  make it point at the code.
• Function pointers
• Overflow into void (foo())() and it point at
  the code
• Setjmp and longjmp commands, that are used for
  checkpointing and recovery
• Alter address given to longjmp to point to
  attackers code

9
Buffer Overflow Details

• Look at Mudges sample buffer overflow attack

10
Buffer Overflow Defenses

• Writing Correct Code
• Vulnerable programs continue to emerge on a
  regular basis
• C has many error-prone idioms and a culture that
  favors performance over correctness.
• Static Analysis Tools
• Fortify looks for vulnerable constructs
• Too many false positives

From Crispin Cowans SANS 2000 Talk on Web
11
Buffer Overflow Defenses

• Non-executable buffers
• Non executable data segments
• Optimizing compiles emit code into program data
  segments
• Non executable stack segments
• Highly effective against code injection on the
  stack but not against code injections on the heap
  or static variables.

12
Buffer Overflow Defenses

• Array Bound Checking
• Can run 12x-30x slower
• a3 is checked but (a3) is not
• Type safe languages Java or ML
• There are millions of lines of C code in
  operating systems and security system
  applications
• Attack the Java Virtual Machine which is a C
  program
• StackGuard program Adds a canary value, which
  is a 32-bit random or a known string terminator
  (CR, LF, \0, etc.)
• Compiler adds canary and system can check for
  this value at runtime
• Entire RedHat system has been recompiled with
  this and shown to be less vulnerable

13
Race Conditions

• http//seclab.cs.ucdavis.edu/projects/vulnerabilit
  ies/scriv/ucd-ecs-95-08.pdf
• http//citeseer.ist.psu.edu/bishop96checking.html
• http//www.mirrors.wiretapped.net/security/develop
  ment/secure-programming/bishop-dilger-1996-checkin
  g-for-race-conditions-in-file-accesses.pdf

14
Race condition What is it?

• Consider a setuid program, owned by root
• UserA is presently executing the program, hence
  is running it as root
• Assume that the program wants to write to a file.
  The system must check whether UserA has the right
  privileges on this file, checked as follows
• if (access(filename, W_OK) 0)
• if ((fd open(filename, O_WRONLY)) NULL)
• perror(filename)
• return(0)
• / now write to the file /

15
Race condition What is it?

• In the time between verifying access and opening
  the file, if the file referred to changes, then
  its access will not have been checked
• Called TOCTTOU (Time-of-check-To-Time-of-Use)
  binding flaw
• For example, if access is originally checked on
  /tmp/X AND before execution of write statement
• /tmp/X is deleted AND
• Hard link from /etc/passwd is created to /tmp/X
• Then, process will write to /etc/passwd!
• Present in xterm program, while logging sessions

16
Source Bishop and Dilgers 1996 paper in
Computing Systems
17
Race conditions, contd.

• Similar attack possible on binmail program
• Binmail appends mail to an existing mail spool
  file
• E.g. /usr/spool/mail/jkl
• Binmail verifies if file exists (and is not a
  symbolic link)
• Before binmail writes to file, jkl is deleted AND
  made a hard link to /etc/passwd
• Now, binmail appends data to /etc/passwd
• Attacker can create a new account with no
  password and root privileges
• Note that binding flaws do not arise when file
  descriptors are used!

18
Good Practices in Implementation

• Inform Yourself
• Follow Vulnerability Discussions and Alerts (eg.
  www.cert.org)
• Read books and papers on secure coding practices,
  analyses of software flaws, etc.
• Explore open source software
• Examples of how to and how not to write code

19
Good Practices in Implementation

• Handle Data with Caution
• Cleanse data Examine input data for malicious
  intent (altering character sets, using
  dis-allowed characters)
• Perform bounds checking
• Check array indices
• Check configuration files
• Can be modified by attacker
• Check command-line parameters
• Dont trust web URLs and parameters within
• Be careful of web content (variables hidden in
  HTML fields)

20
Good Practices in Implementation

• Check web cookies
• Check environment variables
• Set valid initial values for data
• Understand filename references and use them
  correctly
• Check for indirect file references (e.g.
  Shortcuts, symbolic links)
• Be careful of how program and data files are
  located (as in searching using PATH variable)
• Reuse Good Code whenever Practical

21
Good Practices in Implementation

• Sound Review Processes
• Perform Peer review of Code
• Perform Independent Validation and Verification
• Use automated security tools
• Static Code checkers
• RATS - Rough Auditing Tool for Security
• SPLINT Source code scanner http//splint.org/
• Uno http//spinroot.com/uno/
• Runtime checkers
• Libsafe http//directory.fsf.org/libsafe.html
• PurifyPlus http//www-306.ibm.com/software/awdtoo
  ls/purifyplus/
• Immunix Tools

22
Good Practices in Implementation

• Profiling Tools
• Papillon for Solaris http//www.roqe.org/papillon
  /
• Gprof from GNU
• Janus policy enforcement and profiling
  http//www.cs.berkeley.edu/daw/janus/
• Black-box Testing for Fault-Injection Tools
• Appscan http//www.watchfire.com/securityzone/def
  ault.aspx
• Whisker wiretrip.net
• ISS Database Scanner http//www.iss.net/
• Perform network-based vulnerability scans
• Nmap http//insecure.org/nmap/
• Nessus http//www.nessus.org/
• ISS Internet Scanner

23
Good Practices in Implementation

• Make Generous Use of Checklists
• Security checklists must be created and checked
  against. For example
• Application requires password for access
• All user ID logins are unique
• Uses role-based access control
• Encryption is used
• Code should be Maintainable
• Practice standards of in-line documentation
• Remove obsolete code
• Test all code changes

24
Implementation, Donts

• Dont write code that uses relative filenames
• Fully qualified filenames should be used
• Dont refer to a file twice in the same program
  by its name
• Always use file descriptors after initial open
• Prevents race condition attack that exploit
  time between access check and file execution
• Dont invoke untrusted programs from within
  trusted ones
• Avoid using setuid or similar mechanisms whenever
  possible
• Dont assume that users are not malicious

25
Implementation, Donts

• Dont dump core code must fail gracefully
• Coredump can be used to extract valuable data
  stored in memory during execution
• Dont assume that a system call (or any function
  call) is always successful always check for
  return values and error variable values
• Computer-based random number generators are
  pseudo-random and can have repitition
• Dont invoke shell or command line from within a
  program
• Dont use world writable storage, even for
  temporary files

26
Implementation, Donts

• Dont trust user-writable storage not to be
  tampered with
• Dont keep sensitive data in a database without
  password protection
• Dont code usernames/passwords into an
  application
• Dont echo passwords!
• Dont rely on host-level file protection
  mechanisms
• Dont make access decisions based on environment
  variables or command-line arguments
• Dont issue passwords via email

27
To be Continued
