Title: Time Study
1Time Study

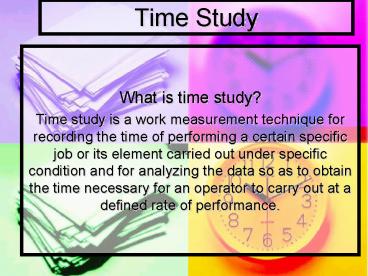

- What is time study?
- Time study is a work measurement technique for
recording the time of performing a certain
specific job or its element carried out under
specific condition and for analyzing the data so
as to obtain the time necessary for an operator
to carry out at a defined rate of performance.
2- Time study is a method of direct observation. A
trained observer watches the job and records data
as the job is being performed over a number of
cycles. - Time study equipment
- the stop watch in general, two types of watch are
used for time study. - Fly back
- Continuous
- These watches may be used any of the following
time scales - Seconds
- Decimal minutes
- Decimal hours
3Selecting the job
- The job in question is a new one, not previously
carried out (new product, component, operation or
set of activities) - A change in material or method of working has
been made and a new time standard is required. - A complaint has been received from a worker or
workers representative about the time standard
for an operation. - A particular operation appears to be a
bottleneck holding up subsequent operations and
possibly previous operations.
4- Standard times are required before an incentive
scheme is introduced. - A piece of equipment appears to be idle for an
excessive time or its output is low, and it
therefore becomes necessary to investigate the
method of its use. - The job needs studying as a preliminary to
marking a method study, or to compare the
efficiency of two proposed methods. - The cost of a particular job appears to be
evidenced by a pareto type of analysis.
5- Before starting the study, there are a number of
points to be observed in relation to the approach
to the worker and the job he is doing. - 1. Make sure the job has been method studied.
Especially where the standard time is to be used
for incentive purposes. - 2. in an organisation where time study has never
been used before, supervision and worker
representatives should be told the reasons for
the study programme and given and insight into
tie study procedure. - 3. It is good policy to ask the supervisor or
workers representatives to be studied. The worker
should be a competent steady person with an
average rate of workig.
6- 4. the worker should be told the reasons for the
study. Why he has been selected and asked to work
at his normal pace explaining any problems that
may arise during the time the study is taken. - 5. workers should be allowed plenty of time to
settle down to new methods. - 6. when making the study the observer should take
a position where he can see the whole of the job
being performed. This is generally to the side of
the operator, slightly to the rear and
approximately 6 feet away. No attempt should be
made to carry out timing from a concealed
position, without the operators knowledge or with
the watch in the pocket.
7- 7. the observer should take a comfortable
standing position for the duration of the study. - Rating
- Rating is a technique used to assess the speed
and effectiveness of an operator. - Consider may take into account
- Speed of movement
- Effort
- Effectiveness
- etc.
8- How accurate is rating?
- Rating is subjective and relies on the skill of
the observer carrying out the rating exercise and
the observers concept of the rate of working
relative to a standard of 100. -
9Element
- An element is a distinct part of a specified job
selected for convenient of observation.
Measurement and analysis. - Breaking down the job in to elements
- Elements should be easily identified, with
definite beginnings and endings so that, once
established. They can be repeatedly recognized.
The point at which one element ends and another
begins is called break point. Breakpoints must be
decided by the work study officer when he divides
the work cycle into elements. - All breakpoints can be recognised by a sound or
by a change of direction of a hand or arm.
10- Elements should be as short as can be
conveniently timed by a trained observer, but
should not be less than 0.10 minutes and more
than 0.50 minutes. - Manual elements should be separated from machine
elements for future use as synthetic data. - Short elements should be next to long elements.
-
11Reasons for breaking down the job into elements
- Variations in speed, pace and effort which an
operator works can be more accurately recorded
over short periods of time. There could be some
parts of the work-cycle with the operator
performs better than others. - The more clear-cut the item of work which is
timed, separately, the more readily can an
appropriate fatigue allowance be arrived at for
incorporation with the element. - To ensure that productive work is separated form
unproductive work. - To enable a detailed job specification to be
produced.
12SMV
- SMV time that is allowed to perform the job
satisfactory. - SMV Basic time Allowances
- Standard Minute Value
-
SMV B.T Allowances
13Basic Time
- The basic time for the operation is found by
applying concept of rating to relate the observed
to that of a standard place of working. - Calculated as follows
- Basic time observed time observed rating
-
100 - (BT Observed time Observed Rating A
constant) - 100
14- Example..
- Rating 50 75 100 125
- Observed time 1.2 0.8 0.6 0.5
- Basic Time 1.250 0.875 0.6100 0.5125
- 100 100
100 100 -
- 0.6 0.6 0.6 0.6
-
15Types of allowances
- 1. Relaxation Allowances
- Personal needs
- This allowance provides for the necessity to
leave the workplace to attend to personal needs
such as washing, going to the lavatory or
fetching a drink - Common figures are from 5 to 7 percent of basic
time. - Basic fatigue
- This allowance, always a constant is given to
take account of the energy expended while
carrying out work and to alleviate monotony. - A common figure is 4 percent of basic time.
16- Contingency allowances
- A contingency allowance is a small allowance of
time which may be included in a standard time to
meet legitimate and expected items of work or
delays, the precise measurement of which is
uneconomical because of their infrequent or
irregular occurrence.
17Machine delay allowances
- These are applied to the total basic times for
those elements which are concerned with the
operation of machinery. - Common used as follows
- Single needle lockstitch 9
- Twin needle lockstitch 14
- Three thread overlock 7
- Four thread overlock 9
- Five thread overlock 11
-
18Types of allowance
- 1. relaxation allowance
- Personal needs (from 5 to 7 of basic time)
- Basic fatigue
- (4 of basic time)
- 2. Contingency Allowances
- (less than 5 percent)
- 3. Machine attention Allowances
- Single needle lockstitch 9 - 12
- Double needle lockstitch 14 - 17
- Three thread over lock - 7
- Four thread over lock - 9
- Five thread over lock -11
-
19SMV calculation
Element description Obser rating Obser. time Basic Time Freq. Basic Time/Gmt
Get bundle and sort parts 95 0.32 0.304 1/30 0.010
Match pocket flap to lining 105 0.11 0.116 1/1 0.116
Sew round flap 100 0.48 0.480 1/1 0.480
Trim threads and turn out flap 58 0.35 0.298 1/1 0.298
Top stitch flap 90 0.56 0.504 1/1 0.504
Close bundle and place aside 110 0.23 0.253 1/30 0.008
Total 1.416
20- Total basic time/garment (brought forward) 1.416
- Add machine attention allowances 7
- 7 fo (0.480 0.504) 0.07 x 0.984
0.069 0.069 - Basic time MAA (1.416 0.069) 1.485
- Add personal needs and relaxation allowances 14
- 14 of 1.485 0.14 x 1.485 0.208 0.028
- Standard minute Value (SMV)
- Basic time all allowances
- 1.485 0.208 1.693 (SMV)
21Question 1
- As a result of a time study exercise the
following information is available - (BSI. 100 rating used)
- Elements Observed Observed
- Rating
Time(min) - Obtain and sort bundle 90 0.11
- Position breast pocket 75 0.16
- Sew to attach pocket 105 1.02
- Cut threads and reposition 100 0.05
- Pickup and position pocket 80 0.15
- Sew to attach flap 110 0.88
- Cut threads and aside gmt. 95 0.09
- Close bundle and write ticket 85 0.17
- Additional Information
- An 8 allowance is to be applied to all sewing
elements to compensate for machine attention. - A 14 relaxation allowance is to be applied to
all work. - The average bundle size is 10 garments
- Calculate the standard minute Value (SMV) for one
garment. - How many garments would you expect to be produced
in a 465 minute working day. (Briefly explain any
assumptions you have made.) -
22Operators Performance rating
- Listed bellow are the twenty levels of
performance used in the rating process. You will
note that each definition has a corresponding
percentage figure. It is this figure that is used
in leveling.
23Production and Efficiency Calculations
24Production Calculation
- Target 60
- (individual) SMV
- Line Target Actual Minutes
- Total M/C SMV
- Actual Minutes No. of M/C operators X working
mints efficiency x present
25Efficiency and Performance Calculations
- Efficiency Earned Minutes x 100
- (of individual) Available minutes
- Earned minutes No. of produced pieces X SMV of
that
activity - Available Minutes Working Minutes
26- Example 1
- An operator worked for 8 hours on an activity of
having a SMV of 5. She produced 82 pieces of that
activity. What was her efficiency? - Efficiency 82 x 5 x 100 85.42
- 8 x 60
27- Example 2.
- An operator worked for 9 hours on activity of
having SMV of 1.21 0.80. She produced 195 250
of those activities respectively. What was her
efficiency? - Efficiency 195 x 1.21 250 x 0.80 x 100
- 9 x 60
- 80.66
28- Line Efficiency Total Earned Minutes x 100
- Total Available
minutes - Total Earned Minutes no of produced Gmts. x SMV
of that Gmt. - Total Available Minutes No of operators x
working minutes.
29- Example 3.
- A unit of 24 operators produced 400 Gmts. SMV of
Garments is 20 assume a working day has 480
minutes what was the line efficiency?
30- Line efficiency 400 20 100
- 24 480
- 69.79
31- Performance Earned Minutes 100
- (of individual) Available Minutes off std
-
minutes
32- E.g. 4
- An operator worked for 8 hours on an activity of
having a SMV of 5. She produced 82 pieces of that
activity. She had 40 minutes of stoppage time due
to machine breakdown power failure. What was
her performance? - Performance 82 5 100
- ( 8 60) 40
-
- 93.18
33Allowance and Calculation
- Personal Needs and Fatigue 7.5
- Other (Standing) 4.0
Machine Type Allowance
DNL SNL/BH DNC/50L SNC/30L BS/BT Other 17.5 12.5 9.0 7.5 5.0 2.0
34- Operation TGT/HR 60
- SMV of the operation
- Line Target
- TGT/Working Time No of operator working mints
- Total machine SMV
- Overall Efficiency Earned SAH 100
- Clock hours
- On std Efficiency Earned SAH 100
- Clock HRS Lost
HRS
35Production Planning
- Load and capacity Planning
- Successful planning requires knowledge of two
variables to determine the time required to
manufacture a contract. - Load How much work we are putting on a section
- Capacity How much work a section is capable of
completing - In an ideal situation
- gtgt Load Capacity
36Load and capacity
- LOAD Contract size x Work content
- Capacity The amount of work the factory or
section is capable of doing.
37The scheduling rule
- Balance load and capacity
- Arrange the programme of work so that the load
can be achieved - Use common units standard minutes
38Balancing Capacity
- Load
- Uncertainty about the number of garments to be
sold Demand? - Speculation?
- Prediction?
- Uncertainty about work content
- Standard minute value
- Measured
- Estimated
- Capacity
- Uncertainty about the number of operators and
performance - Total numbers
- Attendance hours
- Absenteeism
- Performance
- Learning curve
- Uncertainty about the equipment
- Availability
- Reliability
39The pre Production plan for the next 13 week
season has provided the following information.
- Style Order qty SMV per gmts Total SMVs
- Avon 10000 42
- Bar 8000 30
- Clyde 24000 20
- Dee 12000 65
- Calculate the average weekly load in standard
minutes - If the factory employs 80 operators, has 4
absenteeism, works a 40 hour week, has an
efficiency of 8 what is the weekly capacity in
standard minutes? - Is the factory sufficient capacity to meet the
plan?
40The Pre-production plan for the next 13 week
season has provided the following information
- Style Order qty SMV per Gmts. Total SMVs
- Avon 10000 42 420000
- Bar 8000 30 240000
- Clyde 24000 20 480000
- Dee 12000 65 780000
- Calculate the average weekly load in standard
minutes 1920000sms/13 weeks 147692 SMs - If the factory employs 80 operators, has
4absenteeism, works a 40 hor week, has a
eficiency of 85, what is the weekly capacity in
SM? 80400.960.85156672sms - His the Factory sufficient capacity to meet the
plan? - Yes
