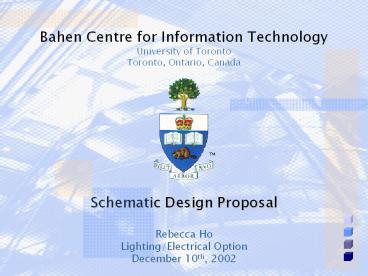

Schematic Design Proposal

1
Bahen Centre for Information TechnologyUniversity
of TorontoToronto, Ontario, Canada
TM
Schematic Design Proposal
Rebecca HoLighting/Electrical OptionDecember
10th, 2002
2
Building Location
The Bahen Centre for Information Technology is
located in the heart of downtown Toronto in
Ontario, Canada. It is located in the St.
George campus of the University of Toronto, at
the intersection of St. George and College Street.
3
Building Information
Photo Credit Diamond Schmitt Architects Inc.
Owner University of Toronto Architect
Planning Diamond Schmitt Architects
Incorporated General Contractor Construction
Management PCL Constructors Canada Electrical
Engineers Lighting Design Crossey Engineering
Limited Mechanical Engineers Keen Engineering
4
Building Features

• Total building area 377,000 ft2 (8 stories)
• Project cost 100 Million dollars (150 Million
  Canadian dollar)
• Featuring lecture halls, seminar rooms, offices,
  and laboratories
• It is the largest of its kind among Canadian
  Universities nationwide

Photo Credit Diamond Schmitt Architects Inc.
Photo Credit Diamond Schmitt Architects Inc.
5
Building Use
Photo Credit Diamond Schmitt Architects Inc.

• Facility for information technology, electrical
  engineering, computer engineering, and industrial
  engineering education at the University of
  Toronto.

Photo Credit Diamond Schmitt Architects Inc.
Photo Credit Diamond Schmitt Architects Inc.
6
Design Metaphor
The Computer Chip and Motherboard Symbolizes
the acquisition and generation of knowledge and
information Bahen Centre of information
technology is a place for the education and
research of information technology Symbolized by
glowing objects (light of knowledge) and
strategically placed smaller marker light sources
representing the organizational structure of
information and the physical appearance of a
motherboard
7
Spaces

• Gallery 1134
• Lecture Hall 1210
• Meeting Room 4287
• Outdoor Patio

(on 4th floor)
N
8
General design goals for all four spaces

• To provide quietness, non-cluttered, and a clean
  look
• To highlight architectural elements and attract
  attention
• To provide an energy efficient design
• To maintain design metaphor throughout all the
  spaces

9
First space to consider

• Gallery 1134
• Lecture Hall 1210
• Meeting Room 4287
• Outdoor Patio

N
10
Gallery
The gallery space is a corridor enclosed by a
glass lined wall of auditorium 1130
and a large plane of windows facing the
pedestrian walkway of St. George Street.
N
Ground Floor Plan
11
Gallery
The large windows adjacent to the sidewalk makes
this a very visible area from outside.
Computer lab and auditorium walls are lined with
glass panels, which will provide sunlight into
those spaces
N
Ground Floor Plan
12
Design Criteria
Gallery

• To direct movement through the corridor
• To be adequately lit to promote safety
• Direct glare and shadowing issues from overhead
  luminaire should be considered
• To add visual interest to the corridor space
• Target illuminance
• Horizontal 5 fc (50 Lux)

13
Gallery
Design Concept
Goal To eliminate clutter in the space and
achieve a clean look
Corridor will be lighted indirectly by the light
shining through the glass.
Use patterned ceramic fritted glass for glass
panels on wall.
Backlight frit glass panels from above to create
a grazing effect.
14
Gallery
Design Concept continued
Wall wash fixture with glass wall detail
Fixtures will be placed inside the auditorium and
computer lab side of the glass to avoid glare for
occupants of those rooms.
15
Gallery
Design Concept (Ceramic Fritted Glass side note)

• Ceramic fritted glass consists of a ceramic
  based paint screen-printed onto glass. The glass
  is then heat strengthened or toughened which
  fuses the paint to the glass creating a permanent
  durable coating - National Glass Catalogue and
  Reference Guide 2000
• Can be used to filter light or reduce glare with
  different pattern designs.
• When fritted glass is used in conjunction with a
  light source, it can create a glowing visual
  appearance.

Examples of Application
16
Gallery
Design Concept continued
Goal To enhance architectural elements (curved
glass wall)
The lighted fritted glass panels will create a
glowing curved wall appearance for onlookers
from the outside.
Fiber optics lining the top and bottom of the
curved wall, creating movement along the corridor.
17
Gallery
Design Concept continued
Goal To attract the attention of pedestrians
looking through windows
The lighted fritted glass panels will create a
glowing curved wall appearance for onlookers
from the outside. It also represents the metaphor
for the project, where the glowing wall
symbolizes a source of knowledge and information.
18
Gallery
Design Concept continued
Goal To provide adequate illuminance safety in
the corridor
Corridor will be lighted indirectly by the light
shining through the glass.
19
Gallery
Lighting Equipment
Side emitting fiber encased along top and bottom
of curved wall in Gallery.
Ceiling mounted, small concealed, one lamp
fluorescent T-8 wallwash fixture.
Fritted glass washed by linear fluorescent
fixture will become a light source itself,
lighting up the corridor. The patter of the frit
should be horizontal to promote movement along
the gallery.
20
Next space to consider

• Gallery 1134
• Lecture Hall 1210
• Meeting Room 4287
• Outdoor Patio

N
21
Lecture Hall
The side walls of the lecture hall features
mahogany wood architectural detail designed by
the architect.
The lecture hall is equipped with an overhead
video projector, screen for the projector, and
blackboard at the front of the room.
N
This 85 seat Lecture Hall features eight rows of
seats on a stepped floor. The room does not have
windows.
Ground Floor Plan
22
Design Criteria
Lecture Hall

• Consider veiling reflections on table and
  blackboard, glare, and reflected glare issues of
  the space
• Lighting of the vertical surfaces such as
  chalkboards
• Visual appearance of lecturer at the front of the
  room and shadows
• Provide different levels of illumination for
  different tasks (lecture, note-taking,
  audiovisual presentation)
• Target Illuminance
• Horizontal 50 fc (500 Lux)
• Vertical 50 fc (500 Lux)

23
Lecture Hall
Design Concept
Goal To provide an even ambient lighting scheme
that causes minimal shadow and glare
Suspended indirect/Direct fixtures (with LED
lights on the bottom side) to provide a
comfortable, diffuse illumination for the entire
space.
Fixtures will be aligned orthogonally to the
orientation of the rows of tables to avoid glare
from the downlight portion of the fixtures.
24
Lecture Hall
Design Concept continued
The LED on the fixture continues to symbolize the
project metaphor
25
Lecture Hall
Design Concept continued
Goal To highlight the architectural detail in
the space
Cove lighting for drop ceiling to illuminate the
perimeter of the room, preventing the caved-in
feeling. The lights will also highlight the
mahogany wood architectural detail mounted on the
walls all around the room.
26
Lecture Hall
Design Concept continued
27
Lecture Hall
Design Concept continued
28
Lecture Hall
Design Concept continued
Goal To provide adequate illuminance for the
vertical surfaces at the front of the room
Recessed asymmetrical fluorescent fixture to
light vertical surfaces (blackboards, screen) and
lecturer at the front of the room
29
Lecture Hall
Design Concept continued
30
Lecture Hall
Control Systems
Requirements
Special controls are need to set different scenes
and zones of lighting for the lecture hall. The
control should have the capability to dim
different groups of lighting required for various
tasks and to achieve a desire illuminance level
on the various workplane levels.

• At least two different scenes will be required
  for
• Regular lectures and note-taking
• Audio-visual presentations

31
Lecture Hall
Control Systems continued
A number of dimming zones must be set up for the
linear fluorescent fixtures so that there will be
the same illuminance level for the different
desktop elevation levels of the room. An
additional zone should also be set up for the
front of the room and another zone for the cove
lighting around the room.
Zone 1 Front of the room for vertical surfaces
and face rendering
Zone 2,3,4 Above desks and seats for tasks such
as note taking and reading
Zone 5 Cove lighting region
32
Lecture Hall
Lighting Equipment
Direct/indirect fluorescent cable suspended
fixture with LED on the bottom. Fixtures will be
arranged end to end (tandem wiring) and complete
with a dimmable ballast.
1x4 recessed wall wash fixture for lighting
blackboard, screen and vertical surfaces at the
front of the room.
Small concealed, one lamp fluorescent T-8 (32W)
wallwash fixture with remote transformer.
33
Third spaces to consider

• Gallery 1134
• Lecture Hall 1210
• Meeting Room 4287
• Outdoor Patio

(on 4th floor)
N
34
Meeting Room
Approximately half of the perimeter of this
circular room is constructed of glass panels
(similar to Gallery).
The meeting room is located on the 4th floor
within the core of the grand spiral staircase in
the atrium.
4th Floor Plan
The ceiling of the room is a drop ceiling with
two columns at the edge of the room. A large
conference table is located in the center of the
room
35
Meeting Room
Design Criteria

• The lighting system should provide an even,
  comfortable ambient lighting level for meetings.
  It should be a dimmable which is useful for
  audio/visual presentation and special purpose
  uses.
• Sufficient vertical illumination for whiteboard
  and presentations

• Facial rendering quality of lights should be
  considered
• Target Illuminance
• Horizontal 30 fc (300 Lux)
• Vertical 10 fc (100 Lux)

36
Meeting Room
Design Concept
Goal To highlight architectural detail (cove and
circular room)
Cove lighting for drop ceiling illuminates the
perimeter of the room, preventing the caved-in
feeling. It also highlights the architectural
circular ceiling to make it float.
37
Meeting Room
Design Concept continued
Goal To provide an even ambient lighting for the
space
Dimmable compact fluorescent downlight provides
even ambient lighting for the space.
38
Meeting Room
Design Concept continued
Goal To generate interest in the space and
showcase architectural features
39
Meeting Room
Design Concept continued
40
Meeting Room
Design Concept continued
41
Meeting Room
Design Concept continued
42
Meeting Room
Lighting Equipment
LED strip light with RGB color mixing capability
32W Triple Tube compact fluorescent downlight
fixture with a medium beam, and open reflector.
Small concealed, one lamp fluorescent T-8 (32W)
wallwash fixture with remote transformer.
43
Fourth spaces to consider

• Gallery 1134
• Lecture Hall 1210
• Meeting Room 4287
• Outdoor Patio

(on 4th floor)
N
44
South Courtyard
Located in the southwest end of the Bahen Centre.
All the rooms on the south side of the building
has a view of the courtyard.
Ground Floor Plan
It features a green lawn area, groups of trees,
and a custom designed water feature
45
South Courtyard
The water feature consists of three
concrete-casted silos used to collect rain water.
The collected rain water is then drained into
troughs and trickle down to the pool. It then
flows to a lower level trough (which runs
north/south) and to another trough which is at
street level to College Street.
46
South Courtyard
Design Criteria

• To promote safety and security to the area by
  providing sufficient lighting at night
• To direct movement through dark paths in the
  courtyard
• To attract attention to the water feature the
  building, while eliminating glare to the adjacent
  buildings caused by lighting
• Target illuminance
• Horizontal 5 fc (50 Lux)
• Vertical 2 fc (20 Lux)

47
South Courtyard
Design Concept
Goal To attract attention to the water feature
and provide sufficient illuminance for safety in
the outdoor space
48
South Courtyard
Design Concept continued
Submersible uplight fixtures are recessed into
the bottom of the trough.
(Similar application)
Steplights used at the base of the water trough
to provide a well lit path for pedestrians
through the courtyard
49
South Courtyard
Design Concept continued
Mounting detail for LED fixture inside silo
50
South Courtyard
Design Concept continued
Trees will be lighted individually from the
bottom. This is for aesthetics reasons but also
for safety purposes (so that people will not run
into trees when walking across courtyard)
(Similar application)
51
South Courtyard
Design Concept continued
52
South Courtyard
Design Concept continued
53
South Courtyard
Design Concept continued
Circular wall lights will be place at steps on
the pathway that runs north/south from the
courtyard to provide enough light for pedestrians
walking on the steps. LED marker lights will be
casted into the concrete ramp for handicap access
next to the steps on the path. This will create
an airport runway effect that will guide people
in or out of the courtyard to the street.
54
South Courtyard
Design Concept continued
55
South Courtyard
Design Concept continued
(Example of similar application)
Also, inground LED fixtures are to be used in the
central portion of the courtyard. These fixtures
will be arrange in a pattern paralleling the
pattern of dots on a motherboard.
56
South Courtyard
Design Concept continued
Another example of similar application
57
South Courtyard
Design Concept continued
58
South Courtyard
Lighting Equipment
Outdoor rated (wet location) LED wall wash
fixture to be mounted on the inside of silo
The 120V base mounted fountain fixture uses a
200W PAR46 lamp. This fixture will be place in
all the troughs where the water flow from the
silos to the lowest trough at street level.
Floor washlight with low voltage halogen tungsten
lamp to be installed into the concrete of the
troughs to light pathway adjacent to it.
59
South Courtyard
Lighting Equipment continued
This LED orientation luminaire is used as marker
lights to illuminate the ramp going towards the
courtyard to provide orientation for pedestrians.
60
The end
