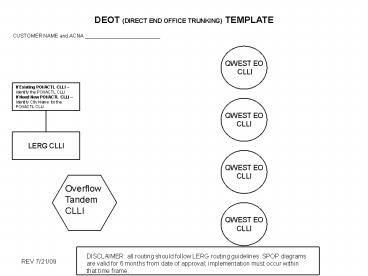

DEOT (DIRECT END OFFICE TRUNKING) TEMPLATE

1
DEOT (DIRECT END OFFICE TRUNKING) TEMPLATE
CUSTOMER NAME and ACNA
QWEST EO CLLI
If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
QWEST EO CLLI
LERG CLLI
QWEST EO CLLI
Overflow Tandem CLLI
QWEST EO CLLI
REV 7/21/09
2
DEOT Trunking Instructions
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• List the customer name and ACNA on the DEOT
  diagram
• Fill in the rectangle with the LERG CLLI
• Fill in a QWEST end office CLLI in a circle for
  each DEOT trunk group
• Connect the POI/ACTL rectangle and circle with a
  line and describe the trunk group in a text box.
  Ex. 2w PH 24 trks (26code if available or NEW)
• If a DEOT is Primary High, traffic overflow must
  be indicated on the diagram (typically overflow
  goes to the local or access tandem the DEOT
  subtends).
• Indicate the overflow trunk group on the diagram
  by connecting the POI/ACTL rectangle and hexagon
  with a line and describe the trunk group as above
• Associate DEOTs by the tandem they overflow to
• i.e. all DEOTs in area served by local tandem
  on one page, all DEOTs
• overflowing to access tandem on separate page
• For each access or local tandem to which traffic
  will overflow, copy page one and indicate the
  Qwest tandem CLLI in the hexagon and the DEOT
  CLLI(s) in the circles. Use the LATA maps to
  assist you in determining which offices subtend
  which tandem.

REV 2/05/09
3
DEOT (DIRECT END OFFICE TRUNKING) TEMPLATE
CUSTOMER NAME and ACNA ABC Telecom ABC
BRTHCOMADS0
2W PH 24 TRKS AE987654
DNVRCOMAHGA
FTCLCOHMDS0
2W PH 24 TRKS NEW
GRVGCO27DS0
QWEST EO CLLI
2W AF 72 TRKS AE576849
FTCLCOMA00T
QWEST EO CLLI
REV 2/05/07
