General Guidelines for SPOP

1
GREAT FALLS MT LATA 648

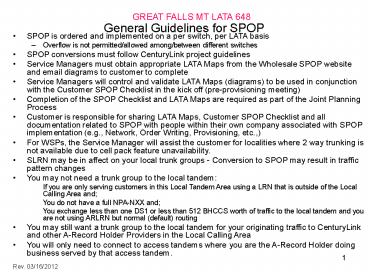

General Guidelines for SPOP

• SPOP is ordered and implemented on a per switch,
  per LATA basis
• Overflow is not permitted/allowed among/between
  different switches
• SPOP conversions must follow CenturyLink project
  guidelines
• Service Managers must obtain appropriate LATA
  Maps from the Wholesale SPOP website and email
  diagrams to customer to complete
• Service Managers will control and validate LATA
  Maps (diagrams) to be used in conjunction with
  the Customer SPOP Checklist in the kick off
  (pre-provisioning meeting)
• Completion of the SPOP Checklist and LATA Maps
  are required as part of the Joint Planning
  Process
• Customer is responsible for sharing LATA Maps,
  Customer SPOP Checklist and all documentation
  related to SPOP with people within their own
  company associated with SPOP implementation
  (e.g., Network, Order Writing, Provisioning,
  etc.,)
• For WSPs, the Service Manager will assist the
  customer for localities where 2 way trunking is
  not available due to cell pack feature
  unavailability.
• SLRN may be in affect on your local trunk groups
  - Conversion to SPOP may result in traffic
  pattern changes
• You may not need a trunk group to the local
  tandem
• If you are only serving customers in this Local
  Tandem Area using a LRN that is outside of the
  Local Calling Area and
• You do not have a full NPA-NXX and
• You exchange less than one DS1 or less than 512
  BHCCS worth of traffic to the local tandem and
  you are not using ARLRN but normal (default)
  routing
• You may still want a trunk group to the local
  tandem for your originating traffic to
  CenturyLink and other A-Record Holder Providers
  in the Local Calling Area
• You will only need to connect to access tandems
  where you are the A-Record Holder doing business
  served by that access tandem.

Rev. 03/16/2012
2
Subtending Localities















GREAT FALLS MT LATA 648
CUSTOMER NAME and ACNA
CASCADE
CONRAD
CUT BANK
DUTTON
EAST GLACIER PARK
GREAT FALLS
HAVRE
LEWISTOWN
SHELBY
ST. MARY
ULM
VAUGHN
WEST GLACIER
Locality covered by local tandem submit
diagram for local tandem, also.
REV. 2/28/08
3
INSTRUCTIONS
GREAT FALLS MT LATA 648

• Use previous slide one as a template. Copy all
  and paste to new document
• In top left box full NPA-NXXs assigned to the
  switch and in LATA 648 (on ASR, full NPA-NXXs
  should go in CNPANXX fields on Translations
  Questionnaire).
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the CenturyLink localities where you
  will be conducting business by changing the color
  to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

Rev. 02/17/2012
4
Subtending Localities

GREAT FALLS MT LATA 648
CUSTOMER NAME and ACNA
ANACONDA
BOULDER
BUTTE
CANYON FERRY
CLANCY
DEER LODGE
DILLON
EAST HELENA
HELENA
HELENA NORTH

TOWNSEND
WARM SPRINGS
WHITEHALL
WOLF CREEK








Locality covered by local tandem submit
diagram for local tandem, also.
REV. 2/28/08
5
INSTRUCTIONS
GREAT FALLS MT LATA 648

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs assigned
  to the switch and in LATA 648 (on ASR, full
  NPA-NXXs should go in CNPANXX fields on
  Translations Questionnaire).
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the CenturyLink localities where you
  will be conducting business by changing the color
  to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

Rev. 02/17/2012
6
Subtending Localities

GREAT FALLS MT LATA 648
CUSTOMER NAME and ACNA
CORVALLIS
DARBY
FRENCHTOWN
HAMILTON
LOLO
MILLTOWN
MISSOULA SOUTH
MISSOULA
STEVENSVILLE
VICTOR





REV. 2/28/08
7
INSTRUCTIONS
GREAT FALLS MT LATA 648

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs assigned
  to the switch and in LATA 648 (on ASR, full
  NPA-NXXs should go in CNPANXX fields on
  Translations Questionnaire).
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the CenturyLink localities where you
  will be conducting business by changing the color
  to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

Rev. 02/17/2012
8
Subtending Localities

GREAT FALLS MT LATA 648
CUSTOMER NAME and ACNA
ANACONDA
BUTTE
DEER LODGE
WARM SRINGS
WHITEHALL









If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
9
GREAT FALLS MT LATA 648
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs assigned
  to the switch and in the BUTTE, MT LOCAL CALLING
  AREA (on ASR, full NPA-NXXs should go in CNPANXX
  fields on Translations Questionnaire). If no
  full NPA-NXXs, MAY REQUEST ARLRN. SEE ARLRN PCAT
  FOR MORE INFORMATION.
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the CenturyLink localities where you
  will be conducting business by changing the color
  to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

Rev. 03/16/2012
10
Subtending Localities

GREAT FALLS MT LATA 648
CUSTOMER NAME and ACNA
BOULDER
CANYON FERRY
CLANCY
EAST HELENA
HELENA
HELENA NORTH
TOWNSEND
WOLF CREEK

If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
11
GREAT FALLS MT LATA 648
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs assigned
  to the switch and in the HELENA, MT LOCAL CALLING
  AREA (on ASR, full NPA-NXXs should go in CNPANXX
  fields on Translations Questionnaire). If no
  full NPA-NXXs, MAY REQUEST ARLRN. SEE ARLRN PCAT
  FOR MORE INFORMATION.
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the CenturyLink localities where you
  will be conducting business by changing the color
  to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

Rev. 03/16/2012
12
Subtending Localities

GREAT FALLS MT LATA 648
CUSTOMER NAME and ACNA
CORVALLIS
DARBY
FRENCHTOWN
HAMILTON
LOLO
MILLTOWN
MISSOULA
MISSOULA SOUTH
STEVENSVILLE
VICTOR

If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
13
GREAT FALLS MT LATA 648
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs assigned
  to the switch and in the MISSOULA, MT LOCAL
  CALLING AREA (on ASR, full NPA-NXXs should go in
  CNPANXX fields on Translations Questionnaire).
  If no full NPA-NXXs, MAY REQUEST ARLRN. SEE
  ARLRN PCAT FOR MORE INFORMATION.
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the CenturyLink localities where you
  will be conducting business by changing the color
  to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

Rev. 03/16/2012
14
Subtending Localities

GREAT FALLS MT LATA 648
CUSTOMER NAME and ACNA
GREAT FALLS
ULM
VAUGHN








If Existing POI/ACTL CLLI Identify the POI/ACTL
CLLI If Need New POI/ACTL CLLI Identify City
Name for the POI/ACTL CLLI
REV. 7/21/09
15
GREAT FALLS MT LATA 648
INSTRUCTIONS
WARNING SLRN may be in affect on your local
trunk groups - Conversion to SPOP may result in
traffic pattern changes

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs assigned
  to the switch and in the GREAT FALLS, MT LOCAL
  CALLING AREA (on ASR, full NPA-NXXs should go in
  CNPANXX fields on Translations Questionnaire).
  If no full NPA-NXXs, MAY REQUEST ARLRN. SEE
  ARLRN PCAT FOR MORE INFORMATION.
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the CenturyLink localities where you
  will be conducting business by changing the color
  to red.
• Full NPA-NXXs also known as Code Holder,
  LERG Assignee, or A Record Holder

Rev. 03/16/2012
