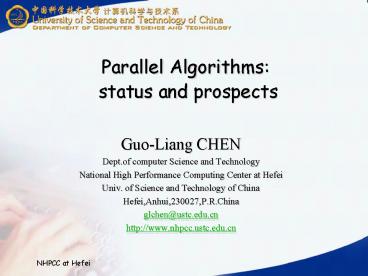

Parallel Algorithms: status and prospects

1
Parallel Algorithms status and prospects

• Guo-Liang CHEN
• Dept.of computer Science and Technology
• National High Performance Computing Center at
  Hefei
• Univ. of Science and Technology of China
• Hefei,Anhui,230027,P.R.China
• glchen_at_ustc.edu.cn
• http//www.nhpcc.ustc.edu.cn

2
Abstract

• The parallel algorithm is very important problem
  to parallel processing. In this talk, we first
  briefly introduce to the parallel algorithm. And
  then, we focus on discussion issues and direction
  of the parallel algorithm research. Lastly, the
  existent problems and faced new challenges for
  parallel algorithm research are given. We argue
  that the parallel algorithm research should
  establish a systematic approach to
  Theory-Design-Implementation-Application,
  should form an integrated methodology of
  Architecture-Algorithm-Programming. Only in
  this way, parallel algorithm research becomes
  continuous development and more realistic.

3
Outline

• Introduction
• Research Issues
• Parallel computation models
• Design techniques
• Parallel complexity theory
• Research directions
• Parallel computing
• Solving problem from applied domains
• Non-Tradition computation modes
• Existent problems and faced new challenges

4
Introduction (1)

• What is a parallel algorithm?
• Algorithm------ a method and procedure to solve a
  given problem
• Parallel algorithm------ an algorithm in which
  multiple operations are performed simultaneously.

• Why parallelism has been an interesting topic?
• The real world is inherently parallel it is
  natural and straightforward to express something
  about the real world in a parallel way.
• There are limits to sequential computing
  performance physical limits such as the speed of
  light.
• Parallel computation is still likely to be more
  cost-effective for many applications than using
  uniprecessors which are very expensive.

5
Introduction (2)

• Why parallelism has not led to widespread use?
• Conscious human thinking appears to be sequential
  to us.
• The theory required for parallel algorithm in
  immature and was developed after the technology.
• The hardware platform required for parallel
  algorithm are very expensive.
• Portability is much more serious issue in
  parallel programming than in sequential.
• Why we need parallel algorithm?
• To increase computational speed.
• To increase computational precision (to generate
  the fine mesh).
• To meet requirement of real time computation
  (weather forecasting).

6
Introduction (3)

• Classification of parallel algorithms
• Numerical parallel algorithms (algebraic
  operation matrix operations, solving a system of
  linear equations etc.).
• Non-numerical parallel algorithms (symbolic
  operation sorting, searching, graph algorithms
  etc.).
• Research hierarchy of parallel algorithms
• Parallel complexity theory (parallelizable
  problem, NC class problem, P-complete problem,
  lower bound etc.)
• Design and analysis of parallel algorithms
  (efficient parallel algorithms).
• Implementation of parallel algorithms (hardware
  platform, software supporting).

7
Introduction (4)

• The history of parallel algorithm research
• From 70s to 80s two decades, parallel algorithm
  research were very hot, many excellent papers,
  textbooks, monographs of parallel algorithms were
  published.
• From the middle of 90s, parallel algorithm had
  shifted to parallel computing.
• New opportunity for parallel algorithm research
• The dramatically decrease of computer price and
  the rapid development of communication
  technology, make it possible to build PC-cluster
  by ourselves.
• It is easy to get free software to support
  cluster from internet.

8
Research Issues

• Parallel computation models
• PRAM
• APRAM
• BSP
• logP
• MH and UMH
• Memory-LogP
• Design techniques
• Partitioning Principle
• Divide-and-Conquer Strategy
• Balanced Trees Method
• Doubling Techniques
• Pipelining Techniques
• Parallel complexity theory
• NC class
• P-complete

9
Research Issues Parallel computation models(1)

• PRAM(Parallel Random Access Memory)
• SIMD-SM, Used for fine grain parallel computing,
  Centralized shared memory, Globally synchronized.
• Advantages
• Suitable for representing and analyzing
  complexity of parallel algorithms, Simple to use
  , hiding the most of low-level details of
  parallel computer (communication, synchronization
  etc. ).
• Disadvantages
• Unsuitable for MIMD computers, Unrealistic to
  neglect the issues of memory contention,
  communication delay etc.

10
Research Issues Parallel computation models(2)

• Asynchronous PRAM
• APRAM or MIMD-SM, Used for medium grain parallel
  computation, Centralized shared memory,
  Asynchronous operation, Read/write shared
  variable communication, Explicit synchronous
  (barrier, etc.).
• Computation in APRAM
• Computation Consists of global phases separated
  by barriers in a phase all processors execute
  operation asynchronized, the last instruction
  must be a synchronization instruction.
• Advantages Preserving much of simplicity of
  PRAM, better programmability, program must be
  correctness, easy to analyze complexity.
• Disadvantages Unsuitable for MIMD computers with
  distributed memory.

11
Research Issues Parallel computation models(3)

• Bulk Synchronous Parallel (BSP) model
• MIMD-DM, Consist of a set of processors,
  send/receive message communication , A mechanism
  for synchronization.
• Bulk synchronous to combine message into a bulk
  one to transfer, to delay communication.
• BSP parameters
• p number of processors
• l Barrier synchronization time
• g unary packet transmission time (time
  steps/packet)1/bandwidth
• BSP bulk synchronization can reduce the
  difficulty of design and analysis and ensure
  easily the correctness of the algorithm.

12
Research Issues Parallel computation models(4)

• LogP model
• MIMD-DM, point-to-point communication, implicit
  synch.
• Parameters (LogP)
• L (network latency), o (communication overhead),
  g (gap1/bandwidth), P (processors).
• Advantages
• Capturing the communication bottleneck of
  parallel computers.
• Hiding details of topology, routing algorithm and
  network protocol.
• Can be applicable shared variable, message
  passing and data parallel algorithm.
• Disadvantages
• Restricting the network capacity, neglecting
  communication congestion.
• Difficult to describe and design of algorithms.

13
Research Issues Parallel computation models(5)

• BSP (Bulk Synch.)-gt BSP (Subset synch.)-gt BSP
  (Pairwise synch.) logP
• BSP can simulate logP with constant factor and
  logP can simulate BSP with at most logarithmic
  factor
• BSPLogPBarriers-Overhead
• BSP offers a more convenient abstraction for
  design of algorithm and program and logP provides
  a better control of machine resources
• BSP seems preferable with greater simplicity and
  portability and more structured programming style

14
Research Issues Parallel computation models(5)

• MH (Memory Hierarchy) model
• A sequential computer memory is modeled as a
  sequence of memory modules ltM0, M1, M2, M3, gt,
  With buses connecting adjacent modules, All buses
  may be active simultaneously, M0 (Central
  processor), M1 (Cache), M2(Main memory),
  M3(Storage).
• MH is oriented address access model, memory
  access cost function f(a) is a monotonic
  increasing function, a is memory address.
• MH model is suitable for sequential memory
  (magnetic tape etc.)

15
Research Issues Parallel computation models(5)

• UMH (Uniform Memory Hierarchy) model
• UMH model captures performance-relevant aspects
  of the hierarchical nature of computer memory
  which is a tool for quantifying the efficiency of
  data movements.
• Memory access cost function f(k), k is of
  memory hierarchy.
• The memory access of the algorithm is always
  repeatly from farther memory modules neglecting
  from nearer memory modules if possible.
• Prefetching operands and overlapping computation
  with memory access operations are encouraged.

16
Research Issues Parallel computation models(5)

• Memory LogP Model
• This model is based on data movement across a
  memory hierarchy from resource LM to target LM
  (Local Memory) using point-to-point memory
  communication inspired by LogP to predict and
  analyze the latency of memory copy, pack and
  unpack.
• Communication lost consist of the sum of memory
  communication and network communication times.
  Memory communication is from user local menory to
  network buffer, network communication is from
  network buffer to network buffer.
• Estimating the cost of point-to-point
  communication is similar to the original LogP
  only parameters have different meaning.

17
Research Issues Parallel computation models(5)

• Model Parameters
• l effective latency, l f (d, s), s (data
  size), d (access pattern) which is the cost of
  data transfer for application, middleware and
  hardware.
• o ideal overhead, which is the cost of data
  transfer for middleware and hardware.
• g the reciprocal of g corresponds to per-process
  bandwidth, usually o g.
• p of processors, p 1 (since consider only
  point-to-point communication).
• Cost Function (cost per byte)
• (om l) (Ln/wn) (om l) which is similar to o
  l o of LogP.
• Om l -- average cost between packing /
  unpacking, Ln -- word size of network
  communication, wn -- word size of instruction
  set.

18
Research Issues Design Techniques(1)

• Partitioning
• Breaking up the given problem into several
  nonoverlapping subproblems of almost equal sizes.
• Solving concurrently these subproblems.
• Divide and conquer
• Dividing the problem into several subproblems.
• Solving recursively the subproblems.
• Merging solutions of subproblems into a solution
  for original problem.
• Balanced Tree
• Building a balanced binary tree on input
  elements.
• Traveling the tree forward/backward to/from the
  root.

19
Research Issues Design Techniques(2)

• Pipelining
• Breaking an algorithm into a sequence of segment
  in which the output of each segment is the input
  of its successor.
• All segments must produce results at the same
  rate.
• Doubling
• It is also called pointer jumping, path doubling.
• The computation proceeds by a recursive
  application of the calculation.
• This distance doubles in successive steps. After
  k steps the computation has been performed over
  all elements within a distance of 2K .

20
Research Issues - Parallel Complexity Theory(1)

• Nick's Class problem
• Definition if it can be solved in time
  polylogarithmic in the size of the problem using
  at most a polynomial number of processors.
• Role the class NC in parallel complexity theory
  plays the role of P in sequential complexity.
• P-complete problem
• Definition a problem L?P is said to be
  P-complete if every other problem in P can be
  transformed to L in polylogarithmic parallel time
  using a polynomial number of processors.
• Role P-completeness plays the role of NPC in
  sequential complexity.

21
Research Issues - Parallel Complexity Theory(2)

• Parallelisable problem
• NC is the class of problem solvable in
  polylogarithmic Parallel time using a polynomial
  number of processors.
• Obviously, any problem in NC is also in P (NC?
  P), but few believe P class is also in NC(P ?
  NC).
• Even if a problem is P-complete, there may be
  efficient(but not necessarily polygarithmic time)
  parallel algorithm for solving it.(Ex. maximum
  flow problem which is P-complete, but several
  efficient parallel algorithms are known for
  solving it).

22
Research Directions

• Parallel computing
• Architecture
• Algorithm
• Programming
• Solving problem from applied domains
• Non-Tradition computation modes
• Neuro-computing
• Nature inspired computing
• Molecular computing
• Quantum computing

23
Research Directions Parallel Computing(1)Archit
ecture

• SMP(Symmetric MultiProcessors)
• MIMD,UMA, medium grain, higher DOP(Degree of
  Parallelism).
• Commodity microprocessors with on/off-chip
  caches.
• A high-speed snoopy bus or crossbar switch
• Central shared memory.
• Symmetric each processor has equal access to
  SM(Shared Memory),I/O and OS services.
• Unscalable due to SM and bus.

24
Research Directions Parallel Computing(1)Archit
ecture

• MPP (Massively Parallel Processors)
• MIMD, NORMA, medium/large grain.
• A large number of commodity processors.
• A customized high bandwidth, low latency
  communication network.
• Physically distributed memory.
• May or may not have local disk.
• Synchronized through blocking message-passing
  operations.

25
Research Directions Parallel Computing(1)Archit
ecture

• Cluster
• MIMD, NUMA, coarse grain, Distributed memory.
• Each node of Cluster is a complete computer (SMP
  of PC), sometimes called headless workstation.
• A low-cost commodity network.
• There is always a local disk.
• A complete OS resides on each node, whereas MPP
  only a microkernel exists.

26
Research Directions Parallel Computing(1)Archit
ecture

• Constellation
• Constellation clusters of custom vector
  processors, very expensive
• Small/medium collection of fast vector nodes,
  vector operation on vector registers
• Large memory moderate scalability and very
  limited scalability in processor count
• High bandwidth pipelined memory access
• Global shared memory (PVP), easy programming model

27
Research Directions Parallel Computing(2)algori
thms

• Policy Parallelizing a Sequential Algorithm
• Method Description
• Detect and exploit any inherent parallelism in an
  existing sequential algorithm.
• Parallel implementation of a parallelizable code
  segment.
• Remark
• parallelizing is most useful and effective
  usually.
• Not all sequential algorithms can be
  parallelized.
• A good sequential algorithm is uncertain to be
  parallelized a good parallel algorithm.
• Many sequential numerical algorithms can be
  parallelized directly into effective parallel
  numerical algorithms.

28
Research Directions Parallel Computing(2)algori
thms

• Policy Designing a new Parallel Algorithm
• Method Description
• In terms of the description of a given problem,
  we redesign or invent a new parallel algorithm
  without regard to the related a sequential
  algorithm.
• remark
• Investigating inherent feature of the problem.
• Inventing a new parallel algorithm is a challenge
  and creative work.

29
Research Directions Parallel Computing(2)algori
thms

• PolicyBorrowing Other Well-known Algorithm
• Method Description
• To find relationship between to be solved problem
  and well-know problem.
• Design a similar algorithm that solves a given
  problem using a well-know algorithm.
• remark
• This work is very skilled work where rich and
  practical experience of algorithm design is
  needed.

30
Research Directions Parallel Computing(2)algori
thms

• Methods
• Decomposition
• Divide-and-Conquer Strategy
• Randomization
• Parallel Iterative
• Pipelining Techniques
• MultiGrid
• Conjugate Gradient

31
Research Directions Parallel Computing(2)algori
thms

• Prcedure (Steps)
• PCAM Algorithm Design
• 4 Stages to designing a parallel algorithm
• P Partitioning
• C Communication
• A Agglomeration
• M Mapping
• P C focus on concurrency and scalability.
• A M focus on locality and performance.

32
Research Directions Parallel Computing(2)algori
thms

• Procedure (Steps)

33
Research Directions Parallel Computing(3)progra
mming

• Parallel Programming Models
• Implicit Parallel
• Sequential programming language, compiler is
  responsible to convert automatically it into a
  parallel codes.
• Data Parallel
• Emphasize local computations and data routing
  operations. It can be implemented either on SIMD
  or SPMD.
• Shared Variable
• Native model for PVP,SMP and DSM. The portability
  of programs is problematic.
• Message Passing
• Native model for MPP and Cluster. The portability
  of programs is enhanced greatly by PVM and MPI
  libraries.

34
Research Directions Parallel
Computing(3)programming
Unified Parallel Programming Model

• High Abstraction Level
• Suitable for various distributed and shared
  memory parallel architecture
• Hide the underlying implementation details of
  message-passing or synchronization
• Support high abstraction level parallel algorithm
  design and description
• High Productivity
• Support fast and intuitive mapping from parallel
  algorithms to parallel programs
• Support high-performance implementation of
  parallel programs
• Highly readable parallel programs
• High Extensibility
• Can be customized or extended conveniently
• Can accommodate the needs of various application
  areas

35
Research Directions Parallel
Computing(3)programming
Unified Parallel Programming ModelMain Layers
and Components

• Core Support Layer
• GOOMPI Generic Object Oriented MPI
• PMT Parallel Multi-Thread
• Core Application Layer
• Centered on smart parallel and distributed
  abstract data structures
• Implementation of a highly reusable basic
  parallel algorithm library
• High-level Framework Layer
• Provide extensible parallel algorithmic skeletons
• Support the research and design of new parallel
  algorithms

36
Research Directions Parallel
Computing(3)programming
Unified Parallel Programming Model System
Architecture
37
Research Directions Parallel Computing(3)progra
mming

• Parallel Programming Languages
• ANSI X3H5
• POSIX Threads
• OpenMP
• PVMParallel Virtual Machine
• MPIMessage Passing Interface
• HPFHigh-Performance Fortran

38
Research Directions Parallel Computing(3)progra
mming

• Parallel Programming Environment tools
• Parallelize Compiler
• SIMDizingVectorizing
• MIMDizingParallelizing
• Performance Analysis
• Data Collection
• Data Transformation and Visualization

39
Research Directions solving problems from
applied domains

• Computational ScienceEngineering(CSE)
• Computational physics
• Computational chemistry
• Computational biology
• Science and Engineering computing requirements
• Global change
• Human Genome
• Fluid turbulence
• Vehicle dynamics
• Ocean circulation
• Superconductor modeling
• weather forecast

40
Research Directions non-tradition computation
modes(1)

• Neuro computing Using an amount of 1012 neuron
  to perform parallel and distributed processing.
• Nature inspired computing Using something
  inspired by natural systems, often has the unique
  characters of self-adaptive, self-organizing and
  self-learning.
• Molecule parallel computing Using an amount of
  1020 molecules to perform computation of spatial
  parallel instead time parallel.
• Quantum computing Using quantum superpostition
  principle to make the quantum computation very
  powerful.

41
Research Directions non-tradition computation
modes(2)

• Neuro computing
• Principle of Neural Network computing
• collective-decision
• cooperation-and-competition
• learning-and-selforganization
• massively parallel processing, distributed
  memory, analogy computation
• Dynamics evolution
• Complexity theory of NN computing
• For any NP-hard problem, even finding approximate
  solution by a polynomial size of network is also
  impossible unless NPco-NP.
• In the sense of the average case, NN is likely to
  be more efficient than conventional computers. A
  great many of experiments have shown it at least.
• For some particular problems, it is possible to
  find an efficient solution by some NN, but the
  learning of NN is a hard problem.

42
Research Directions non-tradition computation
modes(3)

• Nature inspired computing
• Nature Inspired Computation is an emerging
  interdisciplinary area between Computer Science
  and Natural Sciences (especially Life Sciences).
• Artificial Neural Network
• Inspired by the function of neurons in the brain
• Genetic Algorithms
• Inspired by the biological process of evolution
• Artificial Immune System
• Inspired by the principle of biological immune
  system
• Ant Clone System/Swarm Intelligence
• Inspired by the behaviour of social insects
• Ecological computation
• Inspired by the principle of ecosystem

43
Research Directions non-tradition computation
modes(4)

• Molecular Computing or DNA Computing
• in 1994, L. Adleman published a breakthrough for
  making a general-purpose computer with biological
  molecules (DNA).
• Molecular Computation Project (MCP) is an attempt
  to harness the computational power of molecules
  for information processing. In other words, it is
  a trial to develop a general-purpose computer
  with molecules.
• Ability to compute quickly (Adlemans experiment
  performed at a rate of 100 teraflops, or 100
  trillion floating point operations per second. By
  comparison, NEC Corporations Earth Simulator,
  the worlds fastest supercomputer, operates at
  approximately 36 teraflops)

44
Research Directions non-tradition computation
modes(5)

• Quantum computing
• Reversible computation(Bennett and Fredkin)
• Quantum complexity
• Shor's factorization algorithm (1994)
• Grover's quantum search algorithm (1997)
• Some scientists believe that the power of quantum
  computation derives from quantum superpostion and
  parallelism, other than entanglement.
• Shors and Grovers quantum algorithms were only
  of theoretical interest, as it proved extremely
  difficult to build a quantum computer.

45
Existent problems and Faced challenges(1)

• Existent problems
• pure theoretical parallel algorithm research is
  somewhat slowish.
• Some theoretical results of parallel algorithms
  are unrealistic.
• Parallel software is behind parallel hardware.
• Parallel applications are not popular and very
  weak.
• Faced new challenges
• How to use efficiently thousands upon thousands
  processors to solve practical problem.
• How to write, map, schedule, run, monitor the an
  amount of parallel processes.
• What is the parallel computational model for grid
  computing?

46
Existent problems and Faced Challenges(2)

• What should we do?
• To establish a systematic approach of the
  "Theory-Design-Implementation-Application" for
  parallel algorithm research.
• To form an integrate methodology of the
  "Architecture-Algorithm-Programming" for parallel
  algorithm design.
• Our contributions
• To cultivate many students in parallel algorithm
  area for our country
• To publish a series of parallel computing
  textbooks, including
• parallel computing Architecture Algorithm
  Programming
• Design and Analysis of Parallel Algorithms
• Parallel Computer Architectures
• Parallel Algorithm to Practice.

47
(No Transcript)
