Title: Microbial Genetics Lectures


1

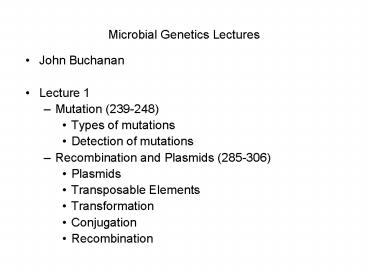

Microbial Genetics Lectures
  • John Buchanan
  • Lecture 1
  • Mutation (239-248)
  • Types of mutations
  • Detection of mutations
  • Recombination and Plasmids (285-306)
  • Plasmids
  • Transposable Elements
  • Transformation
  • Conjugation
  • Recombination

2
  • Genetics branch of biology that deals with
    heredity, especially the mechanisms of hereditary
    transmission and the variation of inherited
    characteristics among similar or related
    organisms.
  • At the most basic level is the study of genes

3
  • Genes are the fundamental unit of heredity
  • DNA sequence in the chromosome
  • Transcribed into mRNA
  • Translated into proteins which make cells work

4
  • Genes are copied (DNA replication) almost exactly
    from parent cell to daughter and from parent to
    offspring
  • DNA replication is EXTREMELY high fidelity
  • (1 wrong nucleotide every 10 Billion)
  • The copying of genes from one generation to the
    next is crucially important
  • Too many mistakes (MUTATIONS) and gene integrity
    is lost and the system falls apart

5
  • Anyone who has never made a mistake has never
    tried anything new. - Albert Einstein
  • A mistake may turn out to be the one thing
    necessary to a worthwhile achievement
  • - Henry Ford
  • Maybe mistakes are not such a bad thing?

6
  • Although multiple redundant systems are in place
    to prevent alteration of genetic material,
    mistakes still occur
  • Mutations
  • The wonder of all of these systems is not just
    their high fidelity, but also that mistakes are
    the source of amazing diversity and adaptation to
    changing environments
  • Mistakes are the driving forces that lead to the
    tremendous variation in life we see today
  • Reoccurring theme of these two lectures
    Appreciate the system AND its errors, as both are
    important

7
(No Transcript)
8
Mutation A stable, heritable change in the
genomic nucleotide sequence
9
Mutations affect bacterial cell phenotype
  • Morphological mutations-result in changes in
    colony or cell morphology
  • Lethal mutations-result in death of the organism
    (this is a bit of a dead end)
  • Conditional mutations-are expressed only under
    certain environmental conditions
  • Biochemical mutations-result in changes in the
    metabolic capabilities of a cell
  • 1) Auxotrophs-cannot grow on minimal media
    because they have lost a biosynthetic capability
    require supplements
  • 2) Prototrophs-wild type growth characteristics
  • Resistance mutations-result in acquired
    resistance to some pathogen, chemical, or
    antibiotic

10
How do mutations occur?Spontaneous mutations
  • Spontaneous mutations - Arise occasionally in all
    cells are often the result of errors in DNA
    replication (random changes)
  • Errors in replication which cause point
    mutations other errors can lead to frameshifts
  • Point mutation - mismatch substitution of one
    nucleotide base pair for another
  • Frameshift mutation - arise from accidental
    insertion or deletion within coding region of
    gene, results in the synthesis of nonfunctional
    protein

11
Types of Mutations
  • Point mutation affects only 1 bp at a single
    location
  • Silent mutation a point mutation that has no
    visible effect because of code degeneracy
  • Missense mutation a single base substitution
    in the DNA that changes a codon from one amino
    acid to another
  • Nonsense mutation converts a sense codon to a
    nonsense or stop codon, results in shortened
    polypeptide

12
Base-pair substitution point mutation
13
Silent mutation
Missense mutation
Nonsense mutation
14
Types of Mutations
  • Point mutation affects only 1 bp at a single
    location
  • Silent mutation a point mutation that has no
    visible effect because of code degeneracy
  • Missense mutation a single base substitution
    in the DNA that changes a codon from one amino
    acid to another
  • Nonsense mutation converts a sense codon to a
    nonsense or stop codon, results in shortened
    polypeptide
  • Frameshift mutation arise from accidental
    insertion or deletion within coding region of
    gene, results in the synthesis of nonfunctional
    protein

15
Frame-shift mutation - Insertion
16
Frameshift mutation - Deletion
17
How do mutations occur?Induced mutations
  • Induced mutations-caused by mutagens
  • Mutagens Molecules or chemicals that damage DNA
    or alter its chemistry
  • Base analogs are incorporated into DNA during
    replication and exhibit base-pairing properties
    different from the bases they replace
  • Specific mispairing occurs when a mutagen changes
    a bases structure and thereby alters its pairing
    characteristics (e.g., alkylating agents)
  • Intercalating agents insert into and distort the
    DNA, and thus induce single nucleotide pair
    insertions or deletions that can lead to
    frameshifts
  • Many mutagens (e.g., UV radiation, ionizing
    radiation, some carcinogens) can severely damage
    DNA so that it cannot act as a replication
    template cell repair mechanisms can restore the
    DNA, however they are very error prone and lead
    to mutations

18
Other Types of Mutations
  • Point mutation affects only 1 bp at a single
    location
  • Frameshift mutation arise from insertion or
    deletion within coding region of gene, results in
    the synthesis of nonfunctional protein
  • Insertion/deletion mutation Larger stretch of
    DNA added or deleted from a gene that alters gene
    expression
  • Forward mutation a mutation that alters
    phenotype from wild type
  • Reverse mutation a second mutation which may
    make the mutant appear wt (in same gene)

19
Mutant Detection
  • In order to study microbial mutants, one must be
    able to detect them and isolate them from the wt
    organisms
  • Visual observation of changes in colony
    characteristics
  • Mutant selection-achieved by finding the
    environmental condition in which the mutant will
    grow but the wild type will not (useful for
    isolating rare mutations)

20
Application of Microbial Genetics
Ames Test for carcinogenicity
21
Ames Test for carcinogenicity
Application of Microbial Genetics
Auxotroph (tryp- mutant)
Selective media to look for mutants
Looking for reversion mutants
22
Recombination and Plasmids285-306
23
Plasmids
  • Plasmids are small ds DNA molecules, usually
    circular that can exisit independently of the
    host chromosome. They have their own replication
    origin so can replicate automonously (episomes)
    and have relatively few genes (lt30) that are not
    essential to the host.

24
Types of Plasmids
  • Conjugative plasmids have genes for pili and can
    transfer copies of themselves to other bacteria
    during conjugation
  • Fertility factor or F factor - These plasmids can
    also intergrate into the host chromosome or be
    maintained as an episome (independent of
    chromosome)
  • R factor - Also conjugative plasmids which have
    genes that code for antibiotic resistence for the
    bacteria harboring them. These do not integrate
    into the host chromosome.
  • Col Plasmids - harbor Bacteriocins which are
    proteins that destroy other bacteria (eg cloacins
    kill Enterobacter species)
  • Virulent plasmids - have genes which make
    bacteria more pathogenic because the bacteria is
    better able to resist host defenses or produce
    toxins/invasins

25
Bacterial Conjugation
  • The transfer of genetic information via direct
    cell-cell contact
  • This process is mediated by fertility factors (F
    factor) on F plasmids
  • Basic Conjugation
  • F / F- mating
  • An F plasmid moves from the donor (F) to a
    recipient (F-)
  • The F plasmid is transferred via a sex pilus and
    then copied thus the recipient becomes F and
    the donor remains F
  • In gram-positive bacteria, the sex pilus is not
    necessarily required for transmission generally
    fewer genes are transferred
  • The F factor codes for pilus formation which
    joins the donor and recipient and for genes which
    direct the replication and transfer of a copy of
    the F factor to the recipient
  • The F factor can remain on a plasmid or it can
    integrate into the bacterial chromosome via IS
    sequences. This type of donor is called and Hfr
    strain (High frequency recombination)
  • F- When the F factor in an Hfr strain leaves the
    chromosome, sometimes is makes an error in
    excision and picks up some bacterial genes

26
(No Transcript)
27
(No Transcript)
28
HFR Strain
F Strain
F Factor
F plasmid
Bacterial chromosome
Bacterial chromosome
29
Hfr X F Mating
  • Similar to the F X F cross

conjugal bridge
Sex pilus
F - cell
Hfr
F - cell
30
Transposable Elements
  • Transposons - DNA segments that carry genes that
    allow them to move about the chromosome
    (transposition)
  • Unlike plasmids or phages, they are unable to
    reproduce or exist apart from the host chromosome

Cut and Paste
Transposon
Bacterial chromosome
Bacterial chromosome
31
Transposable Elements
  • Transposons - DNA segments that carry genes that
    allow them to move about the chromosome
    (transposition)
  • Unlike plasmids or phages, they are unable to
    reproduce or exist apart from the host chromosome
  • Insertion sequences - IS elements- short sequence
    of DNA containing only genes required for
    transposition Flanked by inverted repeats (IR) -
    identical or similar sequences 15-25 bp in
    reversed orientation
  • Transposase - enzyme that recognizes the IR and
    promotes transposition

IS10 1329 bp
Inverted repeat (IR)
IR
Transposase (402 amino acids)
Bacterial chromosome
32
TRANSPOSITION MECHANISM OF INSERTION SEQUENCES
Insertion of IS into chromosomal DNA target
sequence catalysed by transposase
33
TRANSPOSITION MECHANISM OF INSERTION SEQUENCES
TCGAT
AGCTA
Gap filled by DNA polymerase and DNA ligase
TCGAT AGCTA
TCGAT AGCTA
34
Transposable Elements
  • Transposons - DNA segments that carry genes that
    allow them to move about the chromosome
    (transposition)
  • Unlike plasmids or phages, they are unable to
    reproduce or exist apart from the host chromosome
  • Insertion sequences - IS elements- short sequence
    of DNA containing only genes required for
    transposition Flanked by inverted repeats (IR) -
    identical or similar sequences 15-25 bp in
    reversed orientation
  • Transposase - enzyme that recognizes the IR and
    promotes transposition
  • Composite transposon (Tn)- contains other genes
    in addition to transposase like antibiotic
    resistance genes or toxins

35
STRUCTURE OF COMPOSITE TRANSPOSONS
Tn10 9,300 bp
Tetracycline resistance gene
IS10R
Bacterial chromosome
36
Transposable Elements
  • Transposons - DNA segments that carry genes that
    allow them to move about the chromosome
    (transposition)
  • Unlike plasmids or phages, they are unable to
    reproduce or exist apart from the host chromosome
  • Insertion sequences - IS elements- short sequence
    of DNA containing only genes required for
    transposition Flanked by inverted repeats (IR) -
    identical or similar sequences 15-25 bp in
    reversed orientation
  • Transposase - enzyme that recognizes the IR and
    promotes transposition
  • Composite transposon (Tn)- contains other genes
    in addition to transposase like antibiotic
    resistance genes or toxins
  • Importance
  • Can insert within a gene to cause a mutation or
    stimulate DNA rearrangement leading to deletions
    of genetic material
  • Can have termination sequences to block
    translation or transcription
  • Can have promoters which activate genes near pt
    of insertion
  • Can move antibiotic resistance genes around
  • Can be on plasmids to aid in insertion of F
    plasmids into host chromosome
  • Some bear transfer genes (Tn916) and can move
    between bacteria through conjugation
    (conjugative transposon)

37
TRANSPOSABLE GENETIC ELEMENTS CAUSE INSERTION
MUTATIONS
Lactose operon E. coli lac
AATTC TTAAG
Chromosomal DNA
AATTC TTAAG
AATTC TTAAG
Tn10
Mutated lactose operon E. coli lac-
Tetracycline resistance gene
38
DNA Transformation
  • Transformation-a naked DNA molecule from the
    environment is taken up by the cell and
    incorporated in some heritable form. This process
    is random and any portion of the genome may be
    transferred
  • A competent cell is one that is capable of taking
    up DNA
  • Competent bacteria must be in a certain stage of
    growth (usually exponential) and secrete a small
    protein (competency factor) that stimulates
    production of new protein required for DNA uptake
  • Gene transfer by this process occurs in soils and
    marine environments so it is an important route
    of genetic exchange in nature
  • Artificial transformation - carried out in
    laboratory to transfer plasmid DNA, a common
    method for introducing recombinant DNA into
    bacterial cells. eg CaCl2 or electroporation

39
Oswald T. Avery
40
R strain
S strain
S strain
Competent cell
Plasmid
Treatment
Competent cell
41
Bacterial Recombination-process by which one or
more nucleic acid molecules are rearranged or
combined to produce a new nucleotide sequence
  • Types of recombination
  • General recombination involves exchange between
    homologous DNA sequences
  • Site-specific recombination is the nonhomologous
    insertion of DNA into a chromosome often occurs
    during viral genome or transposon integration
    into the host, a process catalyzed by enzymes
    specific for the host sequence
  • Replicative recombination accompanies replication
    and is used by some genetic elements that move
    about the genome
  • All can lead to Horizontal Gene Transfer

42
General recombination
HFR Strain
F Strain
F Factor
Homologous recombination
F plasmid
Bacterial chromosome
Bacterial chromosome
43
DNA RecombinationHorizontal Gene Transfer
  • Horizontal gene transfer-transfer of genes from
    one independent organism to another (compared to
    vertical gene transfer-transmission of genes from
    parents to offspring)
  • Intracellular fates of transferred DNA
  • Integration into the host chromosome
  • Independent functioning and replication without
    integration
  • Survival without replication
  • Degradation by host nucleases (host restriction)
  • Mechanisms of horizontal gene transfer
  • Conjugation is direct transfer from donor
    bacterium to recipient while the two are
    temporarily in physical contact
  • Transformation is transfer of a naked DNA
    molecule
  • Transduction is transfer mediated by a
    bacteriophages (viruses that infect bacteria)

44
(No Transcript)
45
(No Transcript)
46
How do mutations occur?Directed mutations
  • Hypothesis only
  • Organism induces hypermutation in DNA in response
    to environmental stimuli
  • For example
  • Bacteria baseline mutation rate 1 in 10 billion
  • Bacteria in nutritionally poor medium 1 in 1
    million
  • Some mutations allow survival in poor medium
  • Fundamental question Can organisms upregulate
    their mutation rate in response to environmental
    stress?
Write a Comment
User Comments (0)
About PowerShow.com
