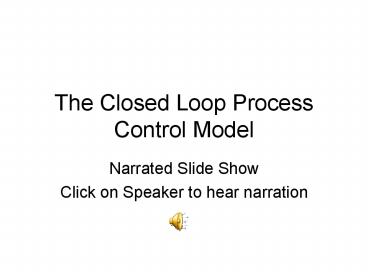

The Closed Loop Process Control Model

1
The Closed Loop Process Control Model

• Narrated Slide Show
• Click on Speaker to hear narration

2
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
3
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Boiler
4
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
5
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
6
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
7
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
8
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
A/D Converter
9
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
A/D Converter
Recorder
10
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
A/D Converter
Feedback Signal
Recorder
11
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
A/D Converter
Comparator

Feedback Signal
-
Recorder
Set Point
12
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
A/D Converter
AgtB AB AltB
Comparator

Feedback Signal
Controller
-
Error Signal
Recorder
Set Point
13
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
A/D Converter
AgtB AB AltB
Comparator

Feedback Signal
Controller
-
Error Signal
Recorder
Set Point
14
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
Signal Processor
A/D Converter
AgtB AB AltB
Comparator
D/A Converter

Feedback Signal
Controller
Correction Signal
-
Error Signal
Recorder
Set Point
15
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
Signal Processor
A/D Converter
AgtB AB AltB
Comparator
D/A Converter

Feedback Signal
Controller
Correction Signal
-
Error Signal
Recorder
Set Point
16
Closed Loop Process
Controlled Variable
Uncontrolled Variable
Control Model
Heat Exchanger
Sensor
Boiler
Transducer
Signal Processor
Signal Processor
A/D Converter
AgtB AB AltB
Comparator
D/A Converter

Feedback Signal
Controller
Correction Signal
-
Error Signal
Recorder
Set Point
