EGR 277

1
1

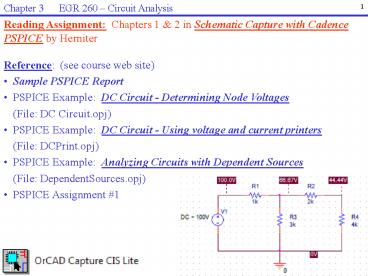

Chapter 3 EGR 260 Circuit Analysis
Reading Assignment Chapters 1 2 in Schematic
Capture with Cadence PSPICE by Herniter

• Reference (see course web site)
• Sample PSPICE Report
• PSPICE Example DC Circuit - Determining Node
  Voltages
• (File DC Circuit.opj)
• PSPICE Example DC Circuit - Using voltage and
  current printers
• (File DCPrint.opj)
• PSPICE Example Analyzing Circuits with
  Dependent Sources
• (File DependentSources.opj)
• PSPICE Assignment 1

2
2
Chapter 3 EGR 260 Circuit Analysis

• ORCAD Capture (PSPICE)
• The software is referred to by the generic name
  PSPICE. It was originally owned by MicroSim and
  then by ORCAD. It is currently owned by Cadence,
  but has kept the ORCAD name. Either of the
  following two versions can be used in this course
  (both are available for download on the course
  web site)
• ORCAD 10.5 (best choice if using Windows XP)
• Cadence Capture 16.5 (best choice if using
  Windows 7)
• See the examples on the course web site. The
  examples contain numerous comments. A classroom
  demonstration will provide further examples.

• It is recommended that you create a new folder
  for each PSPICE problem. The software will
  generate a large number of files within this
  folder.
• Run the software by selecting Start - Programs
  Cadence ORCAD Capture

3
3
Chapter 3 EGR 260 Circuit Analysis
Comparison - Evaluation Version versus Full
Version

• Evaluation Version
• Limit of 64 nodes
• Limit of 1 page schematic
• Standard libraries for sources and basic
  components are available
• EVAL library (eval.slb) contains a couple hundred
  models of components, such as transistors,
  diodes, 7400 series ICs, etc.
• Cost Free
• Some advanced features not included (such as
  printed circuit board layout)

• Full Version
• Unlimited number of nodes
• Unlimited number of pages
• Standard libraries for sources and basic
  components are available
• Libraries for most commercially-available
  components available (tens of thousands of
  models).
• Cost Thousands of dollars (depends on the
  platform and the types of features needed)

4
4
Chapter 3 EGR 260 Circuit Analysis

• Basic steps in creating and analyzing a circuit
  using PSPICE
• (See examples on class web site for details and
  illustrations)
• 1) Create a project
• A) Select File New Project from the main menu
• B) When the New Project box appears, specify the
  following
• Assign the project a Name (any name is fine)
• Create project using Analog or Mixed
  Analog/Digital
• Pick the Location (select Browse and then select
  Create Dir to make a new folder for your project)

C) If asked to create based on an existing
project or create a blank project, select create
a blank project.
5
5
Chapter 3 EGR 260 Circuit Analysis
Basic steps in creating and analyzing a circuit
using PSPICE

• Draw the schematic
• Select Place Part a list of libraries and parts
  should appear (as shown to the right)
• If no libraries appear, select Add Libraries and
  select all libraries listed in the PSPICE folder
  as shown below.
• Select the desired part (such as R in the Analog
  library or Vsource in the Source library).
• Use CtrlR to rotate the part as you place it on
  the schematic. Once it has been placed, it can
  be rotated, flipped, or mirrored by
  right-clicking on the part.
• Continue clicking on the schematic to place
  multiple parts (such as several resistor) and
  then right click and select End Mode to stop.

6
6
Chapter 3 EGR 260 Circuit Analysis
Basic steps in creating and analyzing a circuit
using PSPICE

• Draw the schematic
• Select Place Wire and add wires to connect the
  parts.
• Analysis of circuits in PSPICE is based on nodal
  analysis, so each circuit must contain a ground
  symbol. The ground symbol named 0 must be used.
  If this is omitted, a floating nodes error will
  occur during analysis. The ground is added using
  Place Ground. If the 0 ground is not available,
  select Add Library and you should find it in the
  PSPICE SOURCE library.
• Use the Net Alias tool to label each node (N1
  button in version 10.5 or abc button in version
  16.5 as shown to the right).
• Double-click on the values next to each component
  to change their value.

7
7
Chapter 3 EGR 260 Circuit Analysis
Basic steps in creating and analyzing a circuit
using PSPICE

• Create a simulation profile (select PSPICE New
  Simulation Profile from the main menu)
• A) If the PSPICE menu doesnt appear, you may not
  have selected Schematic instead of Analog or
  Mixed Analog/Digital as required, so start over.
• Any name is OK for the Simulation Profile
• Select the type of analysis to be performed (see
  examples for more details). There are 4 types of
  analysis in PSPICE
• Bias Point (find node voltages and place
  voltages, currents, and power on the schematic)
• DC Sweep (vary a source or component)
• AC Sweep (vary frequency)
• Transient (vary time)

8
8
Chapter 3 EGR 260 Circuit Analysis
Basic steps in creating and analyzing a circuit
using PSPICE

• Analyze the circuit (select PSPICE Run from the
  main menu)
• View the results. Different types of results are
  available, including
• Output File - Select PSPICE View Output File
  from the main menu
• Graphical results
• Bias Points on the schematic (with a Bias Point
  Analysis) see below

9
9
Chapter 3 EGR 260 Circuit Analysis

• Component Values in PSPICE
• PSPICE is not case-sensitive
• Allowable prefixes are shown in the table below

Note that m or M are used for milli. Use MEG
for mega, not M.
10
10
Chapter 3 EGR 260 Circuit Analysis

• Component Values in PSPICE
• When PSPICE reads a component value
• No space is allowed between the value and the
  prefix or unit name
• PSPICE essentially only looks at the first letter
  after the value to see if it is a valid prefix.
  All other letters are ignored, so unit names can
  be entered in a variety of ways. Several
  examples of specifying a 100 k? resistor are
  shown below

11
11
Chapter 3 EGR 260 Circuit Analysis

• Dependent sources in PSPICE
• Located in the analog library (analog.olb)
• Use E, F, G, and H (not EPOLY, FPOLY, GPOLY, and
  HPOLY)
• Each source has a round symbol that can be
  thought of as the source. The other terminals
  are for the control variable.
• Double click on the source to set the GAIN
  property (default value 1). Be sure to change
  the property settings so that the GAIN is
  displayed.

Textbook symbols
PSPICE symbols
12
12
Chapter 3 EGR 260 Circuit Analysis

• PSPICE Demonstration
• If time allows and computers are available to the
  class, the instructor will lead
• the class in creating and analyzing circuits
  using PSPICE.
• Demonstration topics
• Launching the software and creating a project
• Creating and analyzing schematics
• Labeling nodes
• Using dependent sources
• Using voltage and current printers
• Changing and displaying properties. In general,
  display any property that you set or change.
• Adding text to a schematic Select Place Text
  from the main menu
• Viewing results
• Using Bias Points with a Bias Point analysis
• Using the .OUT file with a DC sweep

13
13
Chapter 3 EGR 260 Circuit Analysis

• PSPICE Demonstration (continued)
• Two types of analysis will be demonstrated. Both
  types are required in
• PSPICE Assignment 1.
• Bias Point Analysis
• Automatically finds all node voltages and places
  the results in the .OUT file.
• Current, voltage, and power values for each
  component can also be printed on the schematic by
  selecting the following from the menu
• PSPICE - Bias Points - Enable
• DC Sweep Analysis
• Add voltage and current printers. Be sure to set
  their DC property to YES or they will not work.
• No spaces allowed between value and unit for
  starting ending value in sweep (similar to
  specifying values of components)
• If the starting and ending values are the same,
  use an Increment of 1
• If the starting and ending values are different,
  a table of outputs will appear in the .OUT file
  for each printer used.

14
14
Chapter 3 EGR 260 Circuit Analysis

• PSPICE Demonstration (continued)
• Voltage printers current printers
• use their (DC ) property and display it
• use a DC sweep (analysis type) or the printer is
  ignored!
• Insert current printers like an ammeter (break
  the circuit and place in series)
• Insert voltage printers like a voltmeter (across
  the component (in parallel))
• Look for the negative sign on the printer for
  correct polarity
• Forms for voltage V(R2), V(A), V(A,B), Yes
• The results are printed in the .OUT file

Add a current printer in series with R4 and a
voltage printer in parallel with R5. Also set
their DC properties.
Suppose that the current through R4 and the
voltage across R5 are needed.
