Microtia

1

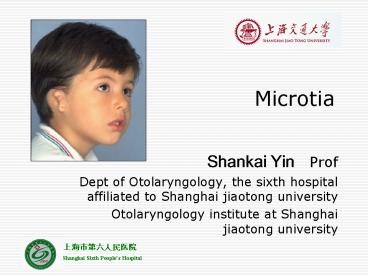

Microtia

• Shankai Yin Prof
• Dept of Otolaryngology, the sixth hospital
  affiliated to Shanghai jiaotong university
• Otolaryngology institute at Shanghai jiaotong
  university

2
Epidemiology

• Occurs 1 in 7,000 to 8,000 infants
• Occurs more often in right ears
• Occurs more often in males
• Higher incidence in Hispanics and Asians than in
  blacks and whites
• Fewer than 15 with positive family history
• Associated with other congenital malformations

3
Etiology

• Known causes
• Thalidomide(?? )
• Isotretinoin()
• Genetic
• Risk factor
• Diabetes

The occurrence of microtia is usually a random,
sporadic event, and it is important for the
parents to understand that the deformity was not
caused by anything the mother did before or
during the pregnancy
4
Embryology of Auricle

• From The Ear comprehensive otology

5
Anatomy of auricle

• From The Ear comprehensive otology

6
Classification of Microtia

• Many classification systems
• Grade I, II, III
• Grade I all anatomic subunits present but
  misshapen
• Grade II anatomic subunits either deficient or
  absent
• Grade III classic peanut ear and anotia

7

• Grade I A slightly small ear with identifiable
  structures and a small but present external ear
  canal
• Grade II A partial or hemi-ear with a closed off
  or stenotic external ear canal producing a
  conductive hearing loss
• Grade III Absence of the external ear with a
  small peanut vestige structure and an absence of
  the external ear canal and ear drum
• Grade IV Absence of the total ear or anotia

8
(No Transcript)
9
Microtia reconstruction
History

• Dr. Tanzer 1959
• 1st article on auricular reconstruction with
  autogenous rib cartilage, 6 stages procedure
• Dr. Brent 1974
• 4 stages procedure, foremost authority on
  auricular reconstruction
• Dr. Nagata 1985
• 2 stages procedure

10
Principles

• Hearing
• testing is first done to determine if the inner
  ear is intact and hearing is normal.
• External canal
• to determine if a canal exists, by CT scan. (if a
  canal is not visible externally)
• Age
• The earliest age surgery can be attempted is age
  3 for Medpor and 6 for Rib Cartilage Grafts.
  However a later age recommend, 8-10 when the ear
  is full adult size.

11
Surgery options

• canal reconstruction
• Ear canal reconstruction is unnecessary and
  overcomplicated
• Very good hearing is possible with modern hearing
  aids
• auricular reconstruction
• Rib Cartilage Graft Reconstruction
• a polyethylene plastic implant

12
Rib Cartilage Graft
13
(No Transcript)
14
The ear frame before it is assembled
a polyethylene plastic
Ear frame assembly
Photo of implant components on a surgical drape.
Caution The porous implant material should not
be placed on surgical drapes or other fibrous
material that may shed particles on the implant.
15
Long term result
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Tissue engineering
