Atomic Theory

1

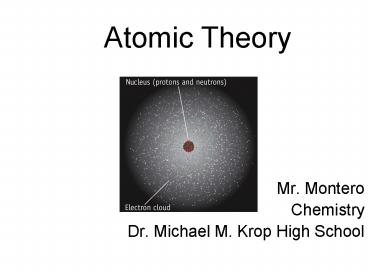

Atomic Theory

• Mr. Montero
• Chemistry
• Dr. Michael M. Krop High School

2
Early Atomic Theory

• Material World is made up of tiny indivisible
  particles.
• A-tomos (Not divisible)
• There was one unique atom for every substance
• No proof

Democritus (460 370 BC)
3
Early Atomic Theory
Democritus is WRONG!!! Matter is continuous. The
essence of matter is called hyle. However, I
offer no proof. Everyone believed me but it
turns out I WAS WRONG.
Aristotle (384 322 BC)
4
The Law of Conservation of Mass
Mass is neither created nor destroyed during
chemical or physical reactions.

• Total mass of reactants
• Total mass of products

Antoine Lavoisier (1734-1794)
5
The Law of Definite Proportions
In a pure compound, the elements combine in
definite proportions to each other
9 g H2O 1 g H 8 g O 18 g H2O 2 g H 16 g
O Water is Oxygen and Hydrogen combined in a 81
mass ratio
Joseph Louis Proust (1754 -1826)
6
Daltons Atomic Theory

• Elements are composed of very small indivisible
  particles called Atoms
• Atoms of a given element are identical to each
  other. Atoms of different elements are different
  from each other.

John Dalton (1766-1844)
7
Daltons Atomic Theory

• Compounds are formed when atoms of more than one
  element combine a given compound always has the
  same relative number and kind of atoms.
• Atoms of an element are not changed during a
  chemical reaction. Reactions involve rearranging
  of atoms.

John Dalton (1766-1844)
8
Rearrangement of Atoms in a Chemical Reaction
Combustion of methane
9
STM image of the surface of gallium arsenide
(GaAs).

• Gallium atoms (blue spheres), Arsenic atoms (red
  spheres).

10
DEFINITION OF THE ATOM

• Basic building block of matter.
• Smallest particle of an element that
• retains the chemical identity of the
• element.

11
Is the atom truly indivisible?
Is the atom indivisible like a solid ball?
NO!!! Atoms are composed of electrically charged
particles called (Subatomic Particles)
12
Law of Electrostatic attraction

• Like charges repel each other.
• Unlike charges attract each other.

13
Cathode Rays
What is traveling from the Cathode (-) to the
Anode ()? Why is the ray bent by a magnet?
14
Discovery of the Electron
Cathode Rays are actually particles (since light
does not bend) with a negative
charge. ELECTRONS!
J.J. Thomson (1856-1940)
15
Thomsons Atomic Model
Thomson believed that the electrons were like
plums embedded in a positively charged pudding,
thus it was called the plum pudding model.
(Think of a Chocolate Chip Cookie)
16
Mass of the Electron

• Millikan finds the mass of the electron in 1909
• The mass of the electron is 9.11 x 10-31 kg
• That is 2000 times lighter than Hydrogen

Robert Millikan (1868-1953)
17
Millikans Oil Drop Experiment
The Oil Drop Apparatus
18
Millikans Oil Drop Experiment
19
Conclusions from the study of the Electron

• Cathode rays have identical properties regardless
  of the element used to produce them. All elements
  must contain identically charged electrons.
• Atoms are neutral, so there must be positive
  particles in the atom to balance the negative
  charge of the electrons
• Electrons have so little mass that atoms must
  contain other particles that account for most of
  the mass

20
Radioactivity
I discovered that Uranium gives of Radioactivity.
It spontaneously emits radiation. I suggested
to Marie and Pierre Curie to work on this
phenomenon
Henri Becquerel (1852-1908)
21
Radioactivity
We are the most famous couple in Science
We worked on Radioactivity. An element was named
after us (Curium Cm)
Pierre Curie (1859-1906)
Marie Curie (1867-1934)
22
Radioactive Particles a, ß, ?

• Alpha particles (a) are the nucleus of Helium (2
  protons, 2 neutrons) 2 charge
• Beta particles (ß) are high-speed electrons. -1
  charge.
• Gamma Rays (?) are high energy radiation, not
  particles. Zero Charge

23
Rutherfords Gold Foil Experiment
24
Rutherfords Gold Foil Experiment

• Most Particles pass right through
• Some particles are slightly deflected
• Very seldom a particle will bounce right back
• This experiment demolishes J.J. Thomsons
  Plum-Pudding Model

25
Rutherfords Findings
Like Howitzer shells bouncing off of tissue
paper!

• The nucleus is Dense
• The nucleus is Small
• The nucleus is positively charged

Ernest Rutherford (1871-1937)
26
How dense is the Nucleus?

• A pea with the mass of 250 million tons
• The mass of all cars in the US in an object that
  would easily fit in a teaspoon

27
How small is the nucleus?

• If the diameter of the atom is the size of a
  football field how big is the nucleus?

The size of a Cherry!
28
Other Subatomic Particles

• Protons were discovered by Rutherford in 1919
• Neutrons were discovered by Chadwick in 1932

29
Subatomic Particles
Particle Charge Mass (kg) Location
Electron -1 9.109 x 10-31 Electron cloud
Proton 1 1.673 x 10-27 Nucleus
Neutron 0 1.675 x 10-27 Nucleus
30
How big is an atom?

• The diameter of a US Penny is 19 mm. The
  diameter of a copper atom is 2.6 Å. How many
  atoms of copper would fit side by side in a
  straight line across the diameter of a penny?
• 1 Å 10-10 m

Answer 7.3 x 107 Cu atoms
31
Atomic Definitions

• Atomic Number (Z) The number of protons in an
  atom
• Mass Number (A) The number of nucleons (protons
  and neutrons)
• Atomic Mass Mass of the atom (expressed in
  atomic mass units or u)

32
Atomic Symbols
33
Isotopes

• Dalton predicted that all atoms of the same
  element are identical. This is not true.
• Isotopes are atoms that have the same number of
  protons but different number of neutrons
  (different mass number).

34
Isotopes of Carbon
Symbol Number of Protons Number of Electrons Number of Neutrons
11C 6 6 5
12C 6 6 6
13C 6 6 7
14C 6 6 8
35
Heavy Ice
D2O is water that has Deuterium (2H) instead of
Protium (1H ) Deuterium is heavier than hydrogen
since it contains an extra neutron.
36
Atomic Mass Unit (amu)

• We need a more convenient unit to measure the
  mass of atoms.
• Atomic mass of Carbon-12 is assigned an exact
  value of 12 amu
• 1 amu 1.66054 x 10-24g

Particle Mass (amu)
Proton 1.0073
Neutron 1.0087
Electron 5.486 x 10-4
37
Adding the mass of protons and neutrons

• The mass of one 12C atom is EXACLTY 12 amu.
• 12C has 6 protons and 6 neutrons.
• 6 x (1.0073) 6 x (1.0087) 12.096 u
• Where is the mistake????

38
Measuring the mass of isotopes
Mass Spectrometer
39
Calculating Atomic Mass

• Same atoms have different masses (Isotopes)
• In nature some isotopes are more abundant than
  others.
• It is possible to take an average of the atomic
  masses of all existing isotopes.
• The average atomic mass is the number reported in
  the periodic table

40
Calculating Atomic Mass

• The atomic mass depends on the relative abundance
  of the isotope. Therefore, it is a weighted
  average

Finding the atomic mass of Carbon. Naturally
occurring Carbon is Composed of 98.892 12C and
1.108 13C. Their masses are 12 u (exact) and
13.00335 u respectively. What is the average
atomic mass?
(0.98892)(12 u) (0.01108)(13.00335 u) 12.011
u
