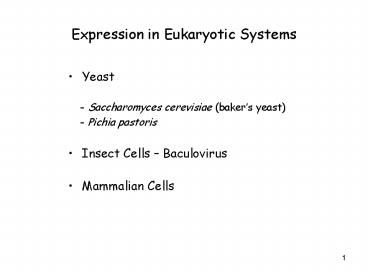

Expression in Eukaryotic Systems

1
Expression in Eukaryotic Systems

• Yeast
• - Saccharomyces cerevisiae (bakers yeast)
• - Pichia pastoris
• Insect Cells Baculovirus
• Mammalian Cells

2
Expression in Yeast
Autonomous replicating vectors -gt shuttle vectors
3
Expression in Saccharomyces cerevisiaeAutonomous
replicating systems
Yep
Yrp
4
Expression in Saccharomyces cerevisiaeIntegrative
systems
YIp
Probability for integration higher with linear
fragments !
5
Yeast Artifical Chromosomes
6
Yeast Artifical Chromosomes (YAC)
7
(No Transcript)
8
Expression in Saccharomyces cerevisiae
9
Yeast Promoter
UAS Upstream activating sequence URS Upstream
repressing sequence
10
(No Transcript)
11
Expression in Saccharomyces cerevisiae
12
Expression in Saccharomyces cerevisiae
13
Yeast are efficient secretors ! Secretory
expression preferred if -gt if product toxic -gt
if many S-S bonds need to be closed
14
(No Transcript)
15
Expression in S. cerevisiae Pichia pastoris

• Problems with production in S. cerevisiae
• For some proteins production level low
• Hyperglycosylation (more than 100 mannose
  residues in N-glycosylation)
• Sometimes secretion not good -gt protein stack in
  cells (periplasma)
• S. cerevisiae produces high amount of EtOH -gt
  toxic for the cells -gt effects level of
  production
• Advantages of production in Pichia pastoris
• Highly efficient promoter, tightly regulated
  (alcohol oxidase -gt AOX, induced by MeOH)
• Produces no EtOH -gt very high cell density -gt
  secretion very efficient
• Secretes very few proteins -gt simplification of
  purification of secreted proteins

16
Expression in Pichia pastorisIntegrative systems
17
Expression in Pichia pastoris
18
Expression in Pichia pastoris
19
Expression in Pichia pastoris
20
Mut -gt both AOX1 and AOX2 are functional -gt
methanol as inducer and as carbon source
used MutS -gt only AOX2 functional -gt methanol as
inducer and just to minder extend as carbon
sourse Mut- -gt non of the AOX are functional -gt
methanol only as inducer
21
Knockout strains (Lab strain design)
22
Glycosylation
23
(No Transcript)
24
(No Transcript)
25
Expression in Pichia pastoris
26
Yeast surface display
27
Yeast Two-Hybrid System
-gt to study protein-protein interactions -gt
another possibility by SPR
28
Expression in Insect cells

• Baculovirus
• -gt infects invertebrates (insects)
• -gt in infection cycle 2 forms of baculovirus are
  formed
• -gt
  single virus particle
• -gt
  in protein matrix (polyhedron) trapped clusters
  of viruses
• -gt during late stage of infection massive amount
  of polyhedron produced -gt strong promoter
• -gt polyhedron not required for virus production
• -gt polyhedron promoter optimal for heterologous
  protein production in insect cells

-gt Autographa californica multiple nuclear
polyhedrosis virus (AcMNPV) often used as
expression vector
29
Baculovirus expression system
-gt Production of recombinant baculovirus
1. create a transfer vector (E. coli based
plasmid with AcMNPV DNA polyhedrin
promoter/terminator flanking sequences)
-gt gene of interest cloned downstream
of promoter 2. Insect cells
are cotransfected with virus (AcMNPV)
transfer vector -gt in some double
infected cells -gt double
crossover event (recombination) -gt
produce recombinant virus (bacmid -gt
E. coli - insect cell baculovirus shuttle
vector) -gt cells infected
with recombinant virus -gt produce
plaques (lack of polyhedrin) 3. DNA
hydridisation PCR used to identify
recombinant virus 4. Infection of insect
cells with concentrated stock of
verified recombinant virus -gt 4-5
days later protein harvested
30
Baculovirus expression system
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Baculovirus expression system

• Why this system?
• Insect cells have almost the same
  posttranslational modifications as mammalian
  cells
• Higher expression level than mammalian cells

36
Drosophila cells as expression system
37
Drosophila cells as expression system
38
Drosophila cells as expression system
39
Mammalian cell expression system

• 1. Why do we use that system?
• -gt to get full complement of
  posttranslational modifications on proteins
• 2. Developed cell lines
• -gt short term (transient) expression -gt
  autonomous replicating systems -gt viral origins
  (SV40)
• - African green monkey kidney (COS)
• - baby hamster kidney (BHK)
• - human embryonic kidney (HEK-239)
• -gt long term (stable) expression -gt
  integration into chromosome -gt viral origins
• - chinese hamster ovary (CHO)

40
Mammalian cell expression system

• 1. Adenoviral Vector
• 2. Cytomegalovirus (CMV) promoter
• 3. Inducible mammalian expression systems
• 4. Sindbis Virus

41
Adenoviral expression system
Many cell types can be infected !!!
-gt used for gene therapy !!!
42
Adenoviral expression system
43
Adenoviral expression system
44
Cytomegalovirus enhancer-containing promoter
45
Cytomegalovirus enhancer-containing promoter
-gt positive and negative regulation of promoter
46
Cytomegalovirus enhancer-containing promoter
47
Inducible Mammalian Expression Systems
48
Inducible Mammalian Expression Systems
49
Inducible Mammalian Expression Systems
50
Inducible Mammalian Expression Systems
51
Inducible Mammalian Expression Systems
52
Inducible Mammalian Expression Systems
53
Expression using Sindbis Virus

• Broad host range
• High level expression

54
Expression using Sindbis Virus

• Broad host range
• High level expression

55
Expression using Sindbis Virus
56
Mammalian cell expression system
57

•  Gene expression in mammalian cell lines
• A convenient alternative for setting up mammalian
  cell facilities get a comprehensive service
  from us. We will achieve stable expression of the
  gene of your interest in mammalian cells.
• Customer provides
• - Mammalian vector with the gene (cDNA) to be
  expressed. We accept plasmid and retroviral
  vectors
• - Sequence of the gene and map of the construct
  for transfection
• Cell line or information about the cell line to
  be transfected.
• Our service includes
• - Transfection of the cells. In case of a
  retroviral vector, virus production and cell
  infection
• - Antibiotic selection and generation of stable
  transfected (infected) cell clones. At least 10
  independent clones will be selected and grown
• - Quantitative assay of the gene (cDNA)
  expression level in each transfected clone by RNA
  isolation followed by Northern hybridisation
  and/or RT-PCR
• - Selection of the best expressing clone
• - Cell freezing and depositing
• - Duration 3-6 months (depending on the cell
  growth rate), allow 1month in addition if the
  cell line is not available in our collections
• Customer receives
