T

1

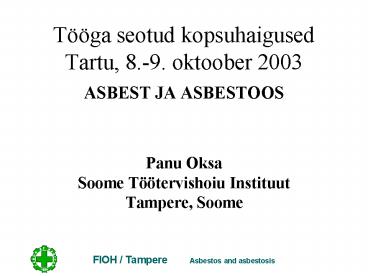

Tööga seotud kopsuhaigusedTartu, 8.-9. oktoober
2003

• ASBEST JA ASBESTOOS
• Panu Oksa
• Soome Töötervishoiu Instituut
• Tampere, Soome

2
What is asbestos?

• asbestos is the name of a group of different
  naturally occurring minerals
• asbestos is fibrous silicate. Fibers are very
  strong and resistent to heat and chemicals
• serpentines chrysotile (white asbestos)
• amphiboles crocidolite (blue), amosite (brown),
  anthophyllite, tremolite, actinolite.

3
Asbestos materials

• spray coating of steel work, concrete walls and
  ceiling for fire protection and insulation
• insulation lagging in buildings, on pipework, for
  boilers and ducts
• asbestos cement products walls, roofs, tiles
• asbestos used also in bitumen, paints, plastic,
  resin, rubber products

4
ACM, serpetine and amphiboles

• any material containing more than 1 asbestos is
  called "asbestos-containing material" (ACM)
• all asbestos types are equally dangerous and
  confirmed human carcinogens
• in organism only chrysotile breaks into shorter
  fibers, all amphiboles split to thinner fibers

5
Effects of asbestos exposure

• pleural plaques (pleura parietale)
• pleuritis
• fibrosis of visceral pleura
• asbestosis
• lung cancer and mesothelioma
• retroperitoneal fibrosis

6
Pleural plaques

• benign hyaline plaques of parietal pleura
• latency time 20-40 years
• no effect on respiration
• already little exposure is enough, even purely
  environmental exposure
• high prevalence in Finland
• differential diagnosis subpleural fat, muscular
  insertions, technical fault and tumors

7
(No Transcript)
8
Asbestosis

• diffuse fibrosis of lungs caused by asbestos
  dust. HRCT is most sensitive in showing it.
• moderate or heavy exposure is needed
• average latency period is 20-30 years
• symptoms shortness of breath and cough
• lung functions restriction and lowered diffusing
  capacity

9
(No Transcript)
10
Fibrosis of visceral pleura

• not so specific to asbestos exposure
• acute pleuritis or pleural effusion precedes the
  pelural fibrosis, latency can be even under 10
  years
• typical complications are adhesions and rounded
  atelectasis
• differential diagnosis other pleurites

11
(No Transcript)
12
WORK HISTORYMowe et al 1985, Tuomi et al 1991,
Zitting et al 1996,Wilkinson et al 1995, Pairon
et al 1994, Sakai et al 1994)

• Definite exposure Manufacture of asbestos
  products, asbestos spraying, insulation,
  demolition of old buildings
• Probable exposure Construction, shipbuilding,
  heating trades, pipefitting, sheet metal work
• Possible exposure Transport, railways, ship
  engine crew, firefighting, mining and quarrying,
  oil refining, chemical, paper and metal
  industries, car repair, general maintenance jobs
• Unlikely exposure Office work, agriculture and
  forestry, health care and education,
  telecommunication, textile industry

13
Work history

• life long cumulative work history
• exposure to asebstos asked about for all work
  tasks
• quantification of cumulative asbestos exposure as
  none, slight, moderate, heavy
• fiber years exposure time (years) x exposure
  level (fibers/cm3)

14
HELSINKI CRITERIA 1997ERS TASK FORCE 1998 1/2

• For clinical purposes, the following guidelines
  are recommended for identifying people who have
  highly probably been exposed to asbestos dust at
  work
• - over 0.1 million amphibole fibers (gt5 ?m)/g
  dry lung tissue or
• over 1 million asbestos fibers (gt1 ?m)/g dry
  lung tissue or
• over 1000 asbestos bodies/g dry tissue (100
  asbestos bodies/g wet tissue) or
• over 1 asbestos body/ml in bronchoalveolar
  lavage fluid

15
HELSINKI CRITERIA 1997ERS TASK FORCE 1998 2/2

• An increased risk of mesothelioma and pleural
  plaques may occur below, at or above (1/2) the
  mentioned concentrations.
• A twofold risk of lung cancer is related to
  retained fiber levels of 2 million amphibole
  fibers (gt5 ?m)/g dry lung tissue or 5 million
  asbestos fibers (gt1 ?m)/g dry lung tissue.

16
Diagnosing asbestos disease

• anamnesis (work history, smoking, resp. symptoms,
  lung diseases, thoracic traumas)
• status, auscultation of lungs
• thorax X-ray, high resolution computed
  tomography, HRCT
• spirometer, diffusion capacity
• differential dg (bronchoscopia, lavage, etc.)

17
Guidance of patient

• STOP SMOKING!
• guidance of disease diagnosed (prognosis etc.)
• advisory opinion and statement of occupational
  disease, if needed
• follow-up

18
Former asbestos workers in Finland (2003)

• 50 - 60 000 (moderate or heavy exposure)
• about 9 000 of them have an asbestos disease
• 7 000 plaques, 2 000 asbestosis
• average age about 70 years
• in 2001 the average age of new asbestos patients
  was 64 years

19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
EU legislation

• Directive 83/477/EEC on the protection of workers
  from the risk related to exposure to asbestos at
  work
• updated and amended by Directives 91/382/EEC and
  98/24/EC.
• The ban on the marketing and use of chrysotile
  asbestos introduced by Council Directive
  76/769/EEC, as amended in 1999 by Commission
  Directive 99/77/EC in effect on 1 January 2005,
  will lead to a substantial reduction in asbestos
  exposure among workers.
• SEE http//europa.eu.int/eur-lex
