Componenti Test

1

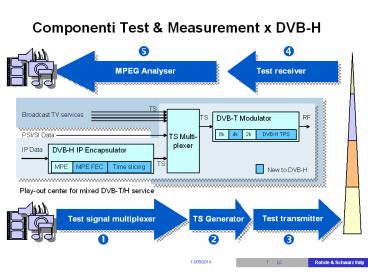

Componenti Test Measurement x DVB-H
2
1) DVB-H Test signal multiplexer
RSDIP010 IP inserter
MPEG2 Transport Stream (TS)
RS DIP010
ASI in
Server
Video file
Video in IP Insertion
H.264
DIP-H Software Option Time Slice
RS-FEC IP Notification Table (INT)
Video
Ethernet Board
Video
IP
ASI out
Video in IP
Video in IP in MPEG2 Transport Stream with
DVB-H Signaling
LAN
PID x
PID x
3
1) DVB-H Test signal multiplexer
RSDV-ASC Advanced Stream Combiner, DV-DVBH
Stream Library

• DVB Test signal generation and

new

• Signalling
• INT IP MAC Notification Table
• Time Slice und FEC descriptor
• Terrestrial delivery descriptor
  extended for DVB-H

new

• Wanted signal
• IPv4 und IPv6 Pakete

new

• Additional FEC
• MPE FEC (Multi Protocol Encapsulation Forward
  Error Correction)

new

• Time Slicing
• Burst size
• Repetition rate
• Burst bandwidth

Advanced Stream Combiner
4
2) DVB-H Transport Stream Generator
RSDVRG, DVM400-B2, SFU-B2

• DVB Transport Stream Generation and

DVB-H Time slicing
Burst cycle time
RS datasections
Application data sections
Burst duration
Receiver off-time
Burstbandwidth
Burst size
Constant bandwidth
Real time parameter delta_t
5
3) DVB-H Test transmitter RSSFU

• DVB-T Modulation and

new

• DVB-H modulation
• 2k, 4k, 8k Mode

new

• DVB-H Symbol Interleaver
• In-depth interleaving for 2k e 4k

new
new

• TPS Signalisierung
• Bit s48 Time Slicing
• Bit s49 MPE-FEC

• TPS signalling
• Bit s48 Time Slicing
• Bit s49 MPE-FEC

new

• Impairments
• New fading profiles in DVB / DVB-H

User interface SFU
6
4) DVB-H Ricevitore RSEFA-T

• DVB-T Modulation analysis and

new

• Interleaver signalling
• Native / In-depth

new
new
User interface EFA-T
7
5) DVB-H MPEG analysis (1) RSDVM50,
DVM100, DVM400

• DVB Transport Stream analysis and

new

• Protocol tree
• DVB-H elements

• MPE and MPE_FEC section analysis
• MAC address (Byte 5 and 6)
• Scrambling control
• Delta_t parameter
• CRC check

new
new

• Payload address
• IP address

new

• Signalling
• INT analysis
• Data Broadcast descriptor in SDT and EIT
• Time Slice and FEC descriptor in NIT, CAT and
  INT

User interface DVM
8
5) DVB-H MPEG analysis RSDVM50, DVM100,
DVM400

• DVB Transport Stream analysis and

new

• Data rate monitoring
• Profile (100ms,100ms) ? Burst bandwidth
• Profile (30s,1s) ? Constant bandwidth

new

• Time Slice analysis
• Slice structure (rows, patting, puncturing)
• Burst size
• Burst repetition rate
• Receiver off-time
• Delta-t margin
• Burst peak bit rate and constant bit rate

new
new

• IP analysis/ Frame error rate
• Number of IP packets
• Corrupted packets before FEC
• Corrupted packets after FEC

• Payload De-encapsulation
• Inverse FEC
• Streaming Application (Decoder)

User interface DVM
9
6) DVB-H soluzioni per copertura
RSTSM-DVB

• Sistema 1
• Installazione su veicolo fissa
• Misure stazionarie con uso di palo per
  stratificazione
• Misure dettagliate
• Misura di qualità video/audio ricevuta

• Sistema 2
• Nessuna installazione fissa
• Misure in movimento durante la guida o camminando
• Misure di base per verifica copertura indoor

10
6) DVB-H soluzioni per copertura misure di
qualità utente georeferenziate RSROMES
11
Soluzioni per test per produzione mobili / Set
Top Box
Ready to Run SW Library GTSL
12
Presentazione demo catena TX/RX DVB-H
TS
DVB-H

• Test Receiver EFA-T
• TPS Analysis

• Test Transmitter SFU
• DVB-H Stream LibraryDV-DVBH
• MPEG Signal Generator
• DVB-H Modulator
• Channel simulator

• MPEG Analyser DVM400
• DVB-H Analysis
• De-encapsulation
• H.264 Video Player
